BDS 8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2008-2010) 4WD Gas | w/ FOX 2.0 Performance Series Shocks

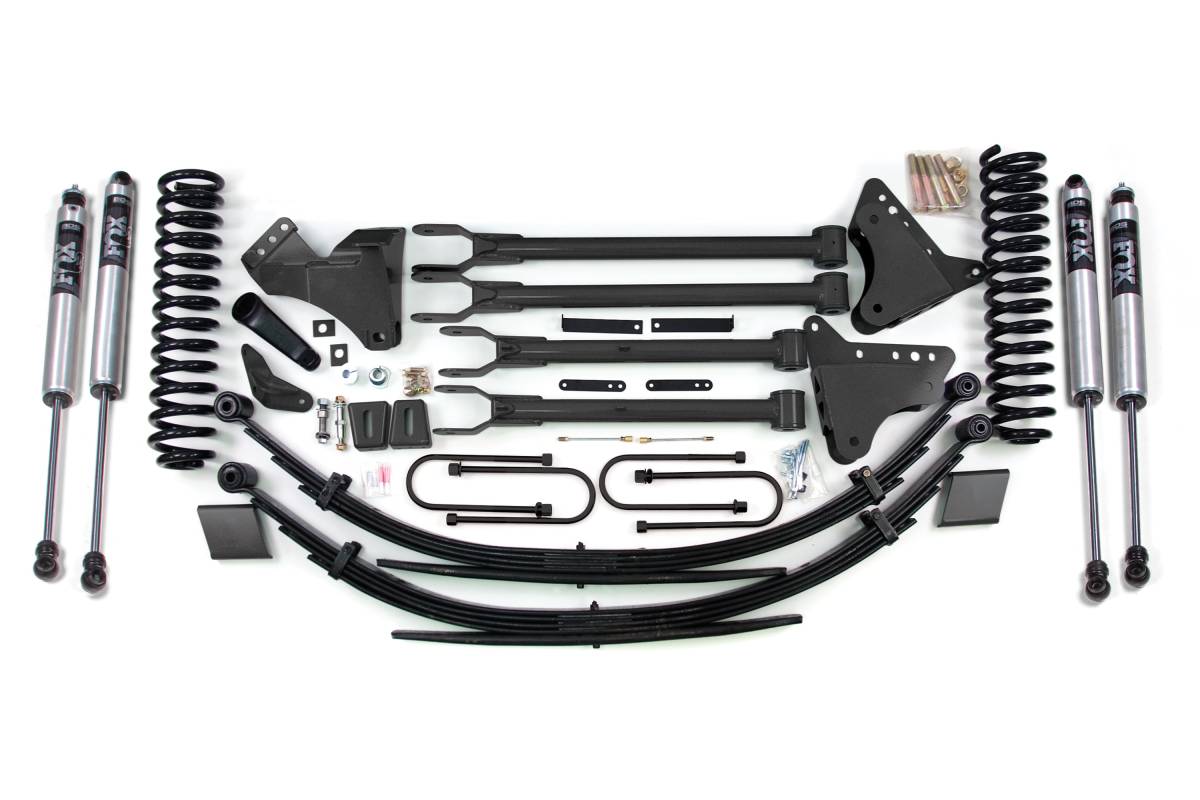

Configured with FOX 2.0 Performance Series shocks, featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving for maximum on- and off-road performance, and a long-lasting clear anodized finish.

Overview

This 8-inch lift kit with 4-Link is designed for 2008–2010 Ford F250/F350 Super Duty 4WD Gas trucks. The Glideride leaf spring system uses a staged design to balance everyday ride quality with maximum hauling capacity. The primary three leafs remain active under no additional load for a comfortable daily ride. As moderate loads are applied, the secondary leafs engage, and when the truck is fully loaded, the bottom overload spring activates for maximum payload support. This allows the truck to maintain ride quality when unloaded without sacrificing hauling capability.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for improved ride quality across all terrain
• Heavy duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs provide full lift height and increased capacity with a built-in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade option available: FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller

Important Notes

• If your vehicle is equipped with a rear anti-sway bar, you will need to order part #123009 in the options section.
• If your vehicle is equipped with a carrier bearing, you will need to order part #123406 in the options section.
• Front exhaust modification may be required to clear the front driveshaft.
• This system can clear 38-inch tires with the addition of a front bumper spacer — see accessories, part #123020.
• Although extremely rare, front driveline vibration may occur.
• U-bolts will not fit dually models.
• Dropped pitman arm will not fit 10-lug wide track F350 models.
