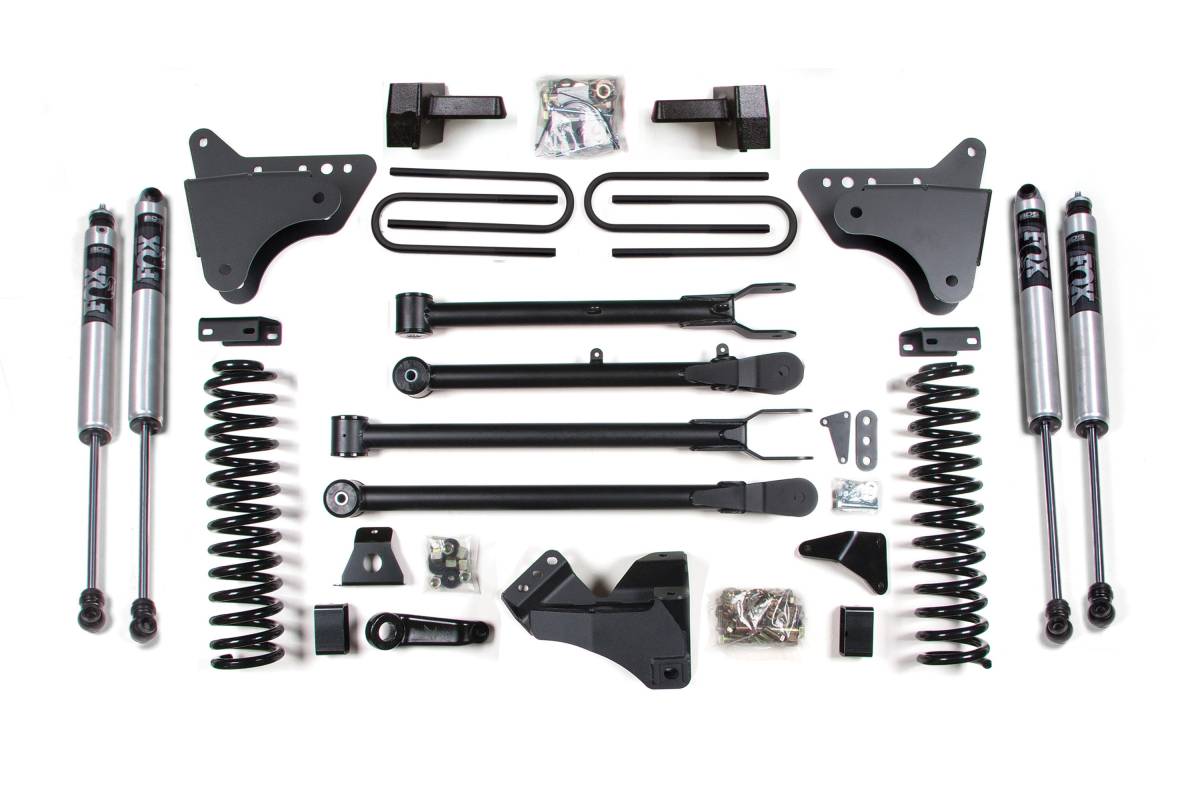

Configured with a Rear Block Kit (Without Factory Overload) — for trucks not equipped with top-mounted overload springs. Steel lift blocks provide high strength, correct pinion angles, and a controlled, stable feel. Results in a "pre-runner" stance with the rear sitting approximately 2 inches lower than the front. Includes FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, and application-specific valving for maximum on- and off-road performance.
Overview
This 6-inch lift kit with 4-link conversion is designed for 2008–2010 Ford Super Duty F250 and F350 gas trucks. The kit improves stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty 4-link control arms, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear, the base kit utilizes high-strength lift blocks, longer U-bolts, brake line brackets, and a matching set of shocks. The 4-link conversion replaces the factory stamped steel radius arms with BDS upper and lower control arms mounted via high-strength 1/4-inch steel brackets to correct axle positioning and limit caster change throughout wheel travel.
Features
- 100% bolt-on installation
- Gas-specific Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
- Heavy-duty 4-link control arms for improved handling, stability, strength, and caster control during wheel travel
- Track bar relocation bracket and forged drop pitman arm maintain proper steering angles
- Sway bar relocation and brake line brackets included
- Fabricated steel blocks provide rear lift (block kit options)

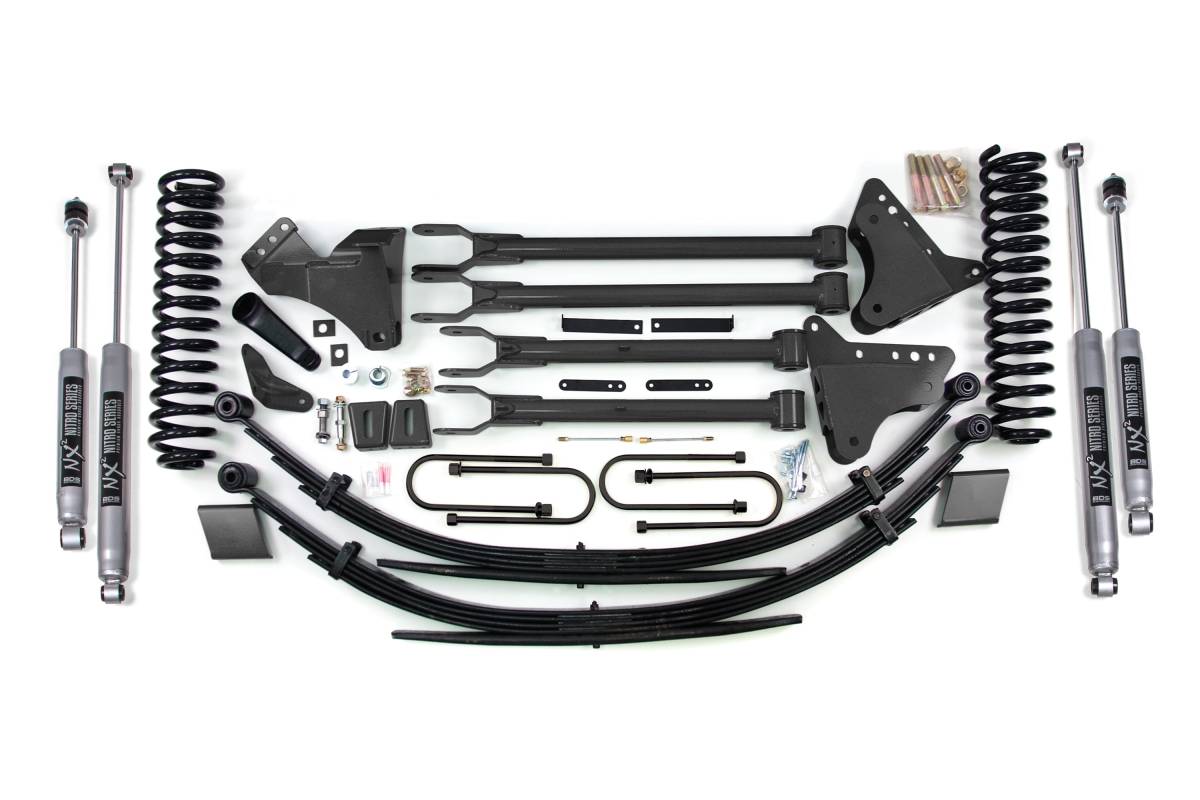

- Rear leaf spring option provides a level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Available upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
- Provides clearance for up to 37-inch tires
Specifications
- Lift Height: 6 inches
- Front lift: Gas-specific Pro-Ride coil springs
- 4-link brackets: High-strength 1/4-inch steel construction
- Rear lift options: Leaf springs, block kit without factory overload, or block kit with factory overload
- Rear block material: High-strength fabricated steel
- U-bolts: Extended length included (not compatible with dually models)
- Shock options: NX2 Nitro Series or FOX 2.0 Performance Series
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
- Special Tools Required: Drill / Bit Set, Pitman Arm Puller
Important Notes
- Removal of the factory block is required.
- Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2 inches lower than the front. To achieve a level stance, upgrade to the rear leaf spring option.
- These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which configuration your vehicle has before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order part number 123402 in the options section.
- Although extremely rare, front driveline vibration may occur.
- Front exhaust modification may be required to clear the front driveshaft on gas models.
- U-bolts will not fit dually models.
- Dropped pitman arm will not fit 10-lug wide track F350 models.
