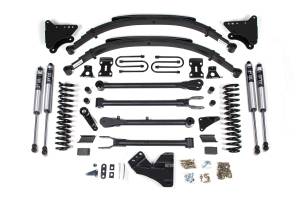

BDS 4 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2008-2010) 4WD Gas | Rear Leaf Springs | FOX 2.0 Performance Series

Rear lift achieved via a multi-leaf progressive replacement leaf spring setup, which eliminates the factory lift block, reduces axle wrap, maintains factory payload weight ratings, and delivers a smooth, controlled ride. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a clear anodized finish.

Overview

This 4-inch lift kit with 4-Link conversion from BDS Suspension is designed for 2008–2010 Ford F250 and F350 Super Duty gas trucks with 4WD. The kit is engineered to improve stance, suspension geometry, and off-road capability, providing clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets, along with precision-tuned nitrogen charged shocks. The rear of the base kit utilizes either a high-strength steel lift block with longer U-bolts or an optional replacement leaf spring pack, depending on the selected configuration.

Features

• 100% bolt-on installation
• Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Heavy-duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear (block kit configurations)

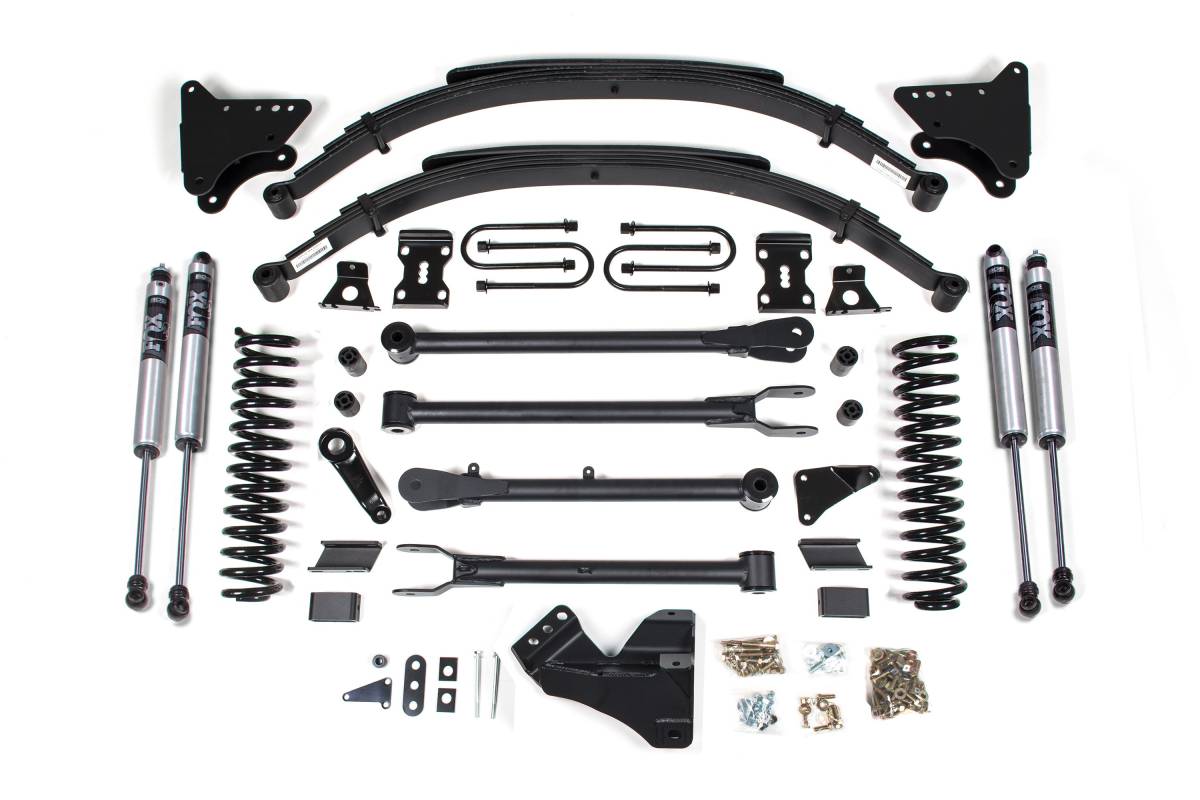

• Multi-leaf progressive rear leaf spring design for smooth ride; eliminates factory lift block, reduces axle wrap, and maintains factory payload weight ratings (leaf spring configuration)

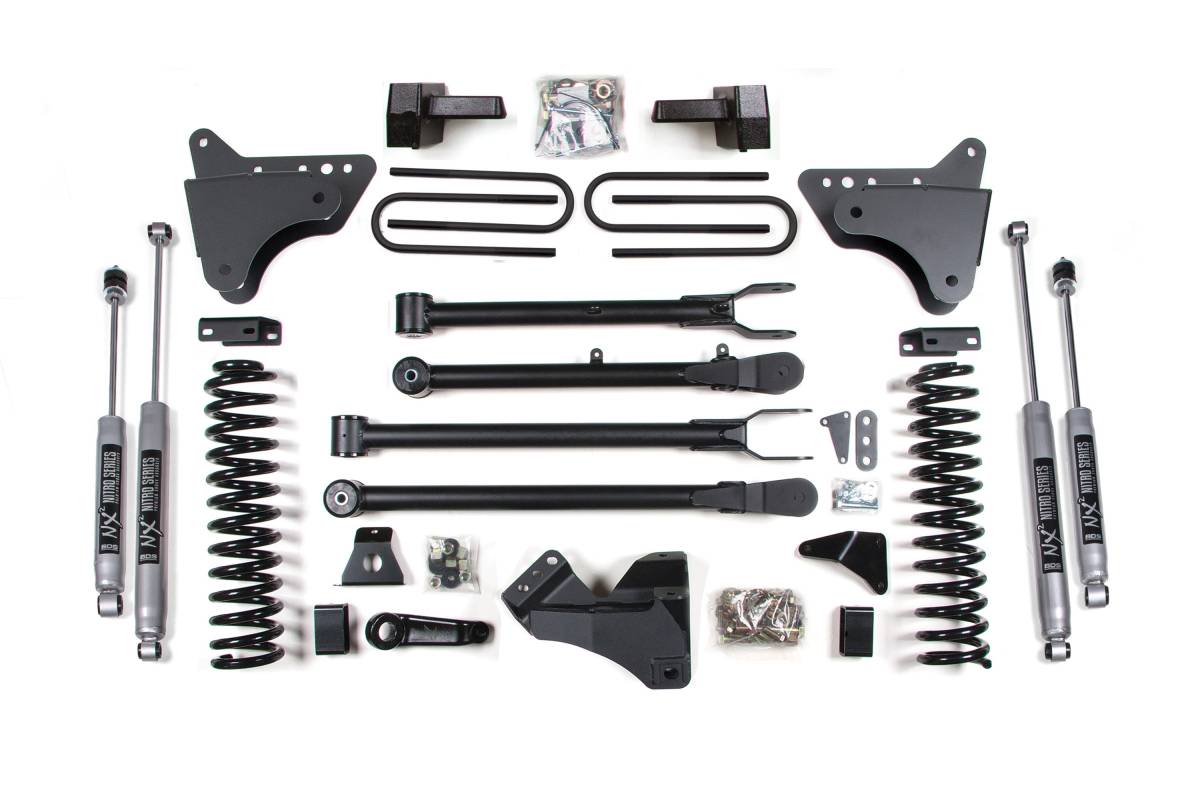

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2008–2010 Ford F250/F350 Super Duty 4WD Gas
• Tire Clearance: Up to 35 inches
• 4-Link brackets: High-strength 1/4-inch steel construction
• Rear steel lift blocks: High-strength steel, designed to provide correct pinion angles
• NX2 Nitro Shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Grinder/Sanding Disc, Drill/Bit Set, Pitman Arm Puller

Important Notes

These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which you have before ordering. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section. Removal of factory block required. Front exhaust modification may be required to clear the front driveshaft on gas models. U-bolts will not fit dually models. Dropped pitman arm will not fit 10 lug widetrack F350 models.
