BDS 4 Inch Lift Kit | Ford F250/F350 Super Duty 4WD Diesel (2008-2010) | Rear Leaf Springs | FOX 2.0 Performance Series

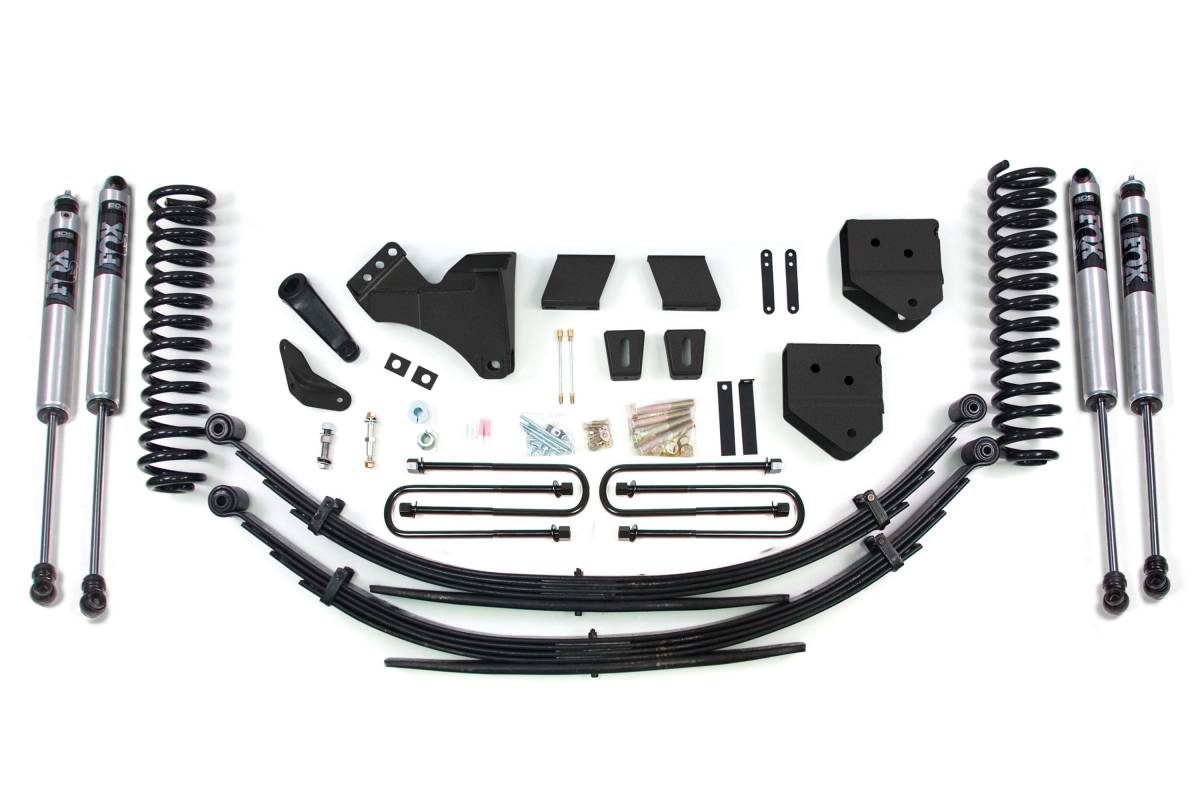

Rear lift is achieved via a multi-leaf progressive rear leaf spring upgrade — eliminating the need for a lift block, reducing axle wrap, and creating a more controlled and stable feel while maintaining factory payload weight ratings. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, and application-specific valving for maximum on- and off-road performance.

Overview

This 4-inch lift kit from BDS Suspension is designed to increase ground clearance on 2008–2010 Ford F250 and F350 Super Duty diesel trucks, improving stance, performance, and capability with clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen charged shocks. In the rear, the kit utilizes a high-strength lift block or leaf spring upgrade, longer U-bolts, and a matching set of shocks.

Features

• 100% bolt-on installation
• Diesel-specific Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Heavy-duty radius arm drop brackets provide correct caster and maintain stock driving characteristics
• Forged drop pitman arm minimizes steering angle after lift
• Heavy-duty track bar drop bracket keeps steering geometry in phase through suspension travel and recenters the front axle
• Sway bar relocation included
• Brake line brackets included
• Steel lift blocks with built-in bump stop provide level stance from front to rear (block kit variants)
• Multi-leaf progressive rear leaf springs available as an alternative to the block kit, reducing axle wrap and maintaining factory payload ratings
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks with vehicle-specific valving
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 4 inches
• Application: 2008–2010 Ford F250 / F350 Super Duty 4WD Diesel
• Front lift: Diesel-specific Pro-Ride coil springs (full-length, dual-rate)
• Rear lift: Steel block kit (with or without factory overload spring configuration) or multi-leaf progressive leaf springs
• Rear lift blocks: High-strength steel construction with correct pinion angle design and built-in bump stop
• Rear leaf springs (where applicable): Multi-leaf progressive design, maintains factory payload weight ratings

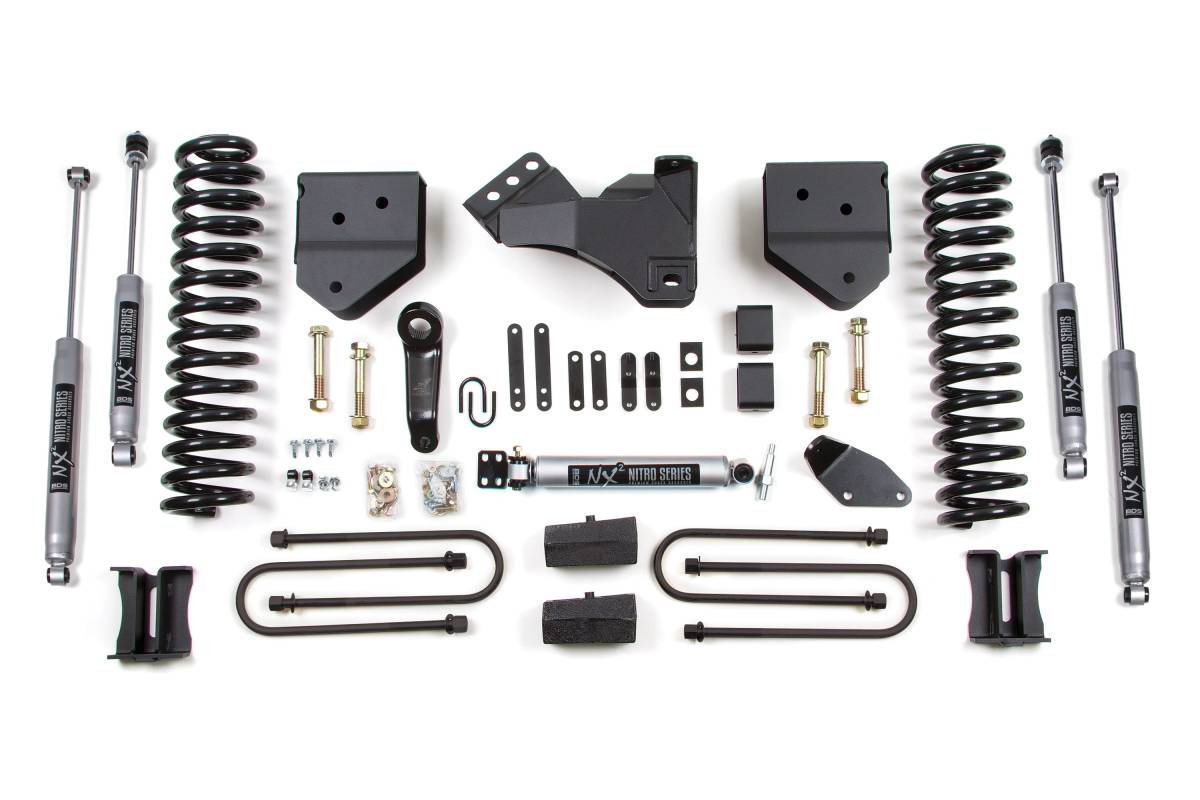

• NX2 Nitro Series shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required. Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs before selecting the appropriate rear lift option.
