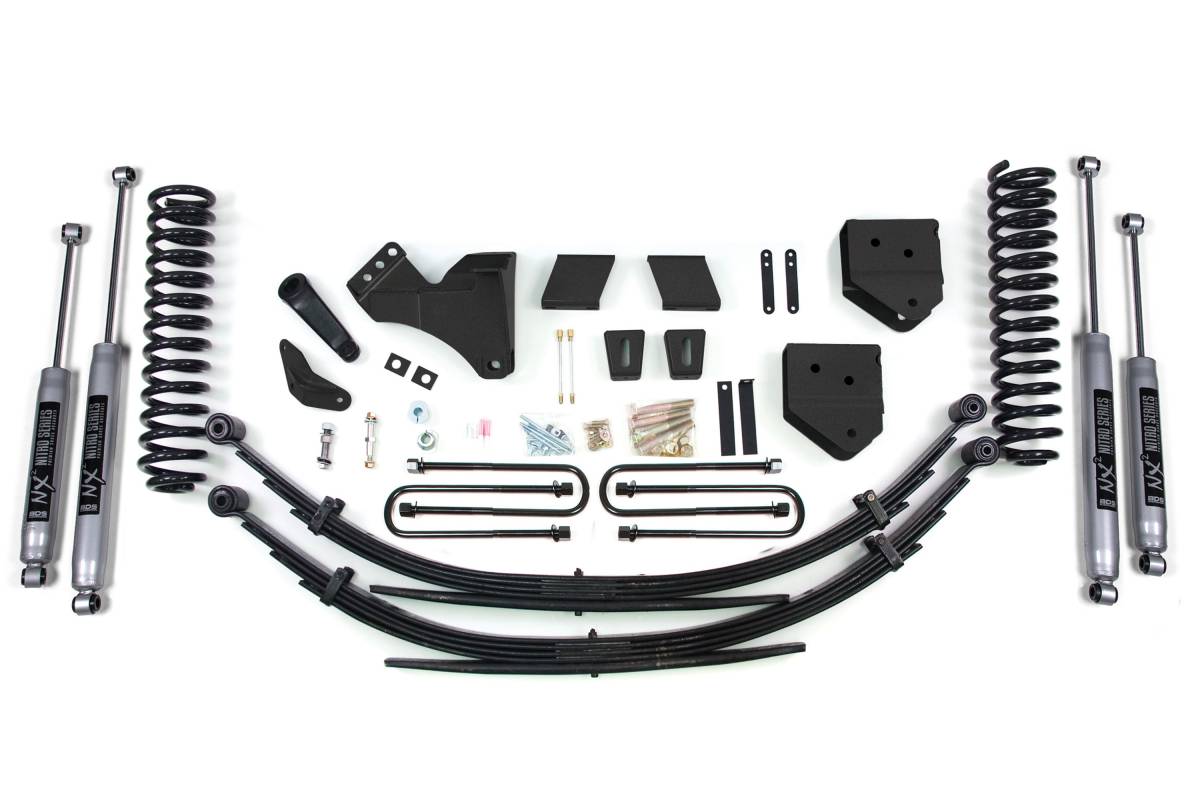

This variant includes a Rear Leaf Spring upgrade for a fully level stance front to rear, eliminating the need for a lift block. The multi-leaf progressive design maintains factory payload weight ratings and reduces axle wrap for a more controlled, stable feel. Paired with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.
Overview

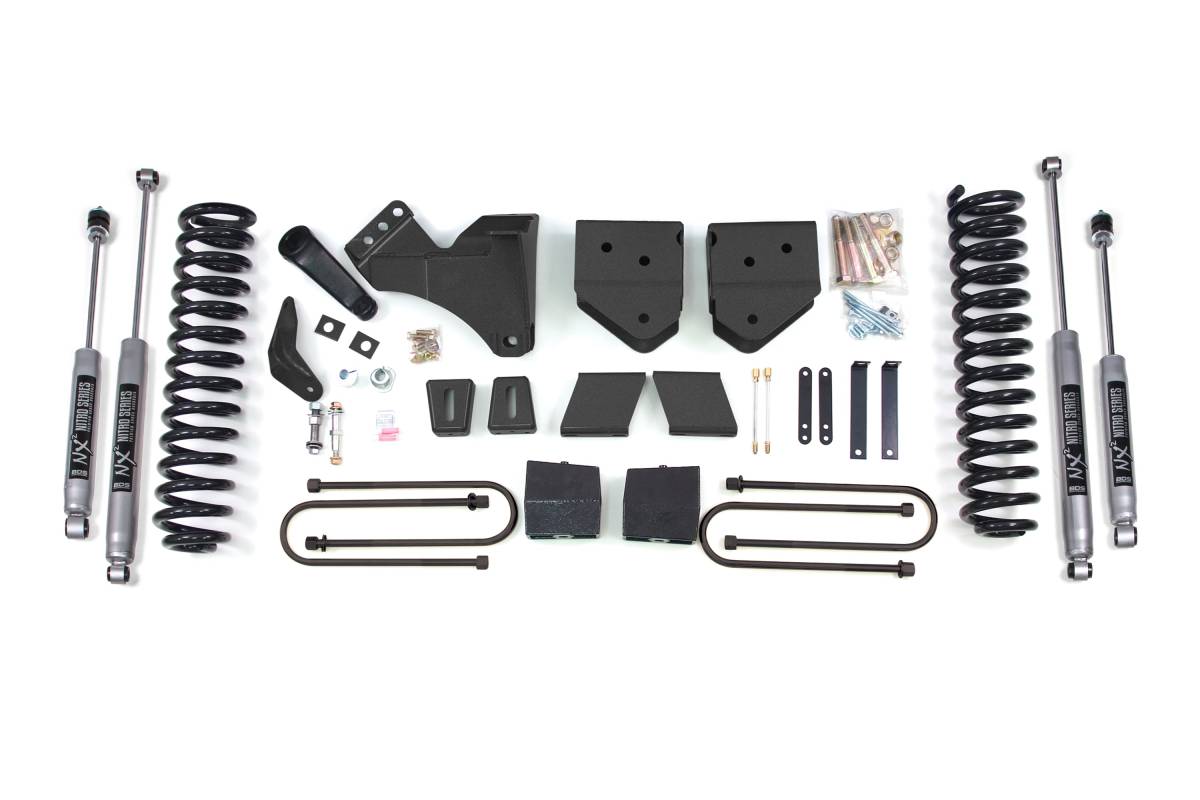

This 6-inch lift kit from BDS Suspension is designed for 2008-2010 Ford Super Duty F250 and F350 diesel trucks (4WD), providing increased ground clearance with fitment for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear, options include high-strength steel lift blocks with longer U-bolts and brake line brackets, or an upgrade to rear leaf springs for a level stance.
Features
- 100% bolt-on installation
- Pro-Ride dual rate coil springs — diesel-specific, full-length design for correct lift height and smooth, predictable ride
- Heavy-duty radius arm drop brackets maintain correct caster and stock driving characteristics
- Track bar relocation bracket and forged drop pitman arm maintain proper steering angles
- Sway bar relocation and brake line brackets included
- Steel lift blocks with built-in bump stop (block kit options) provide a level stance from front to rear
- Rear leaf spring option eliminates the need for a lift block, reduces axle wrap, and maintains factory payload weight ratings
- Standard NX2 Nitro shocks with vehicle-specific valving
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
- Clearance for up to 37-inch tires
Specifications
- Lift height: 6 inches
- Application: 2008-2010 Ford F250 / F350 Super Duty 4WD Diesel
- Rear lift options: Leaf Springs or Steel Block Kit (with or without factory overload springs)
- Shock options: NX2 Nitro Series or FOX 2.0 Performance Series
- Lift blocks: High-strength steel construction with built-in bump stop; designed for correct pinion angles
- Rear leaf springs: Multi-leaf progressive design; maintains factory payload weight ratings
- NX2 Nitro Series shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
- FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish
Installation
- Estimated installation time: 8 hours
- Difficulty: Moderate
- Tools required: Drill / Bit Set, Pitman Arm Puller
Important Notes
- Removal of the factory block is required.
- Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2 inches lower than the front. To achieve a level stance, the rear leaf spring option must be selected.
- These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which configuration your vehicle has before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order part #123402 in the options section.
- Although extremely rare, front driveline vibration may occur.
- Front exhaust modification may be required to clear the front driveshaft on gas models.
- U-bolts will not fit dually models.
- Dropped pitman arm will not fit 10-lug wide track F350 models.
