BDS 8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2005-2007) 4WD Diesel | FOX 2.0 Performance Series Shocks

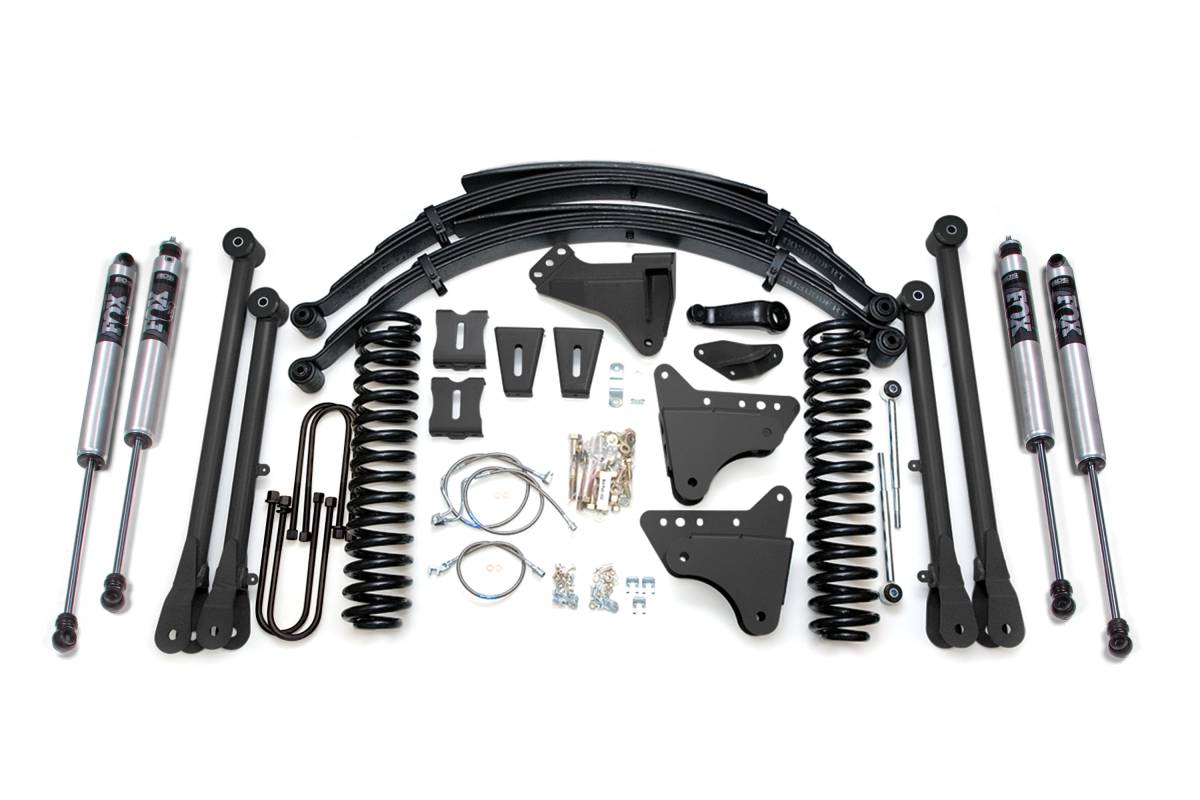

Configured with FOX 2.0 Performance Series shocks, featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving for maximum on- and off-road performance, and a long-lasting clear anodized finish.

Overview

This 8-inch lift kit with 4-Link is engineered for 2005–2007 Ford F250/F350 Super Duty 4WD Diesel trucks. The kit features Glideride leaf springs with a staged, dual-rate design: the primary three leafs operate independently under no additional load for everyday ride quality; secondary leafs engage under moderate loads; and a bottom overload spring activates at full payload capacity. This progressive system allows the truck to maintain a comfortable unloaded ride without sacrificing hauling capability.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for improved ride quality across all terrain
• Heavy duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs provide full lift height and increased capacity with a built-in overload spring

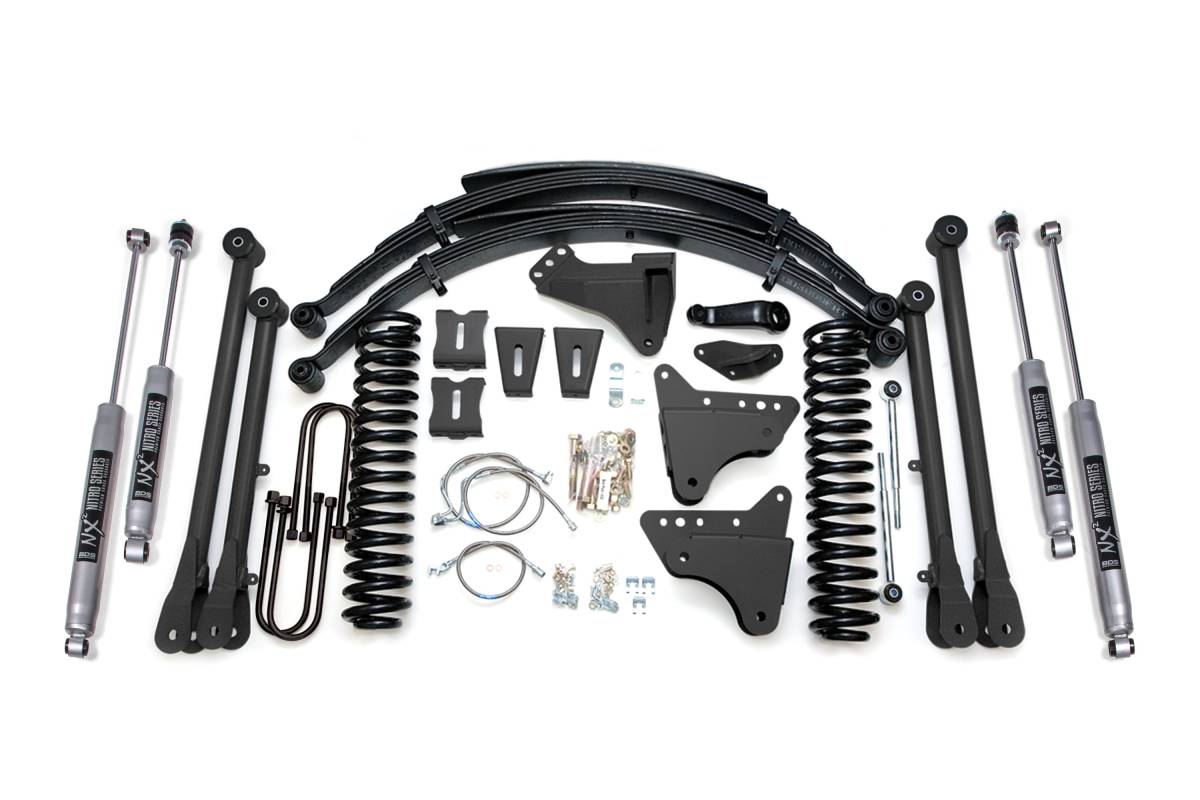

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: Grinder/Sanding Disc, Drill / Bit Set, Pitman Arm Puller

Important Notes

Front dual shock hoop requires different cylinders than what comes in the base kit. If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
