BDS 6.5 Inch Long Arm Lift Kit | 1997-2006 Jeep Wrangler TJ & TJ Rubicon | 6-7.5" Lift

Overview

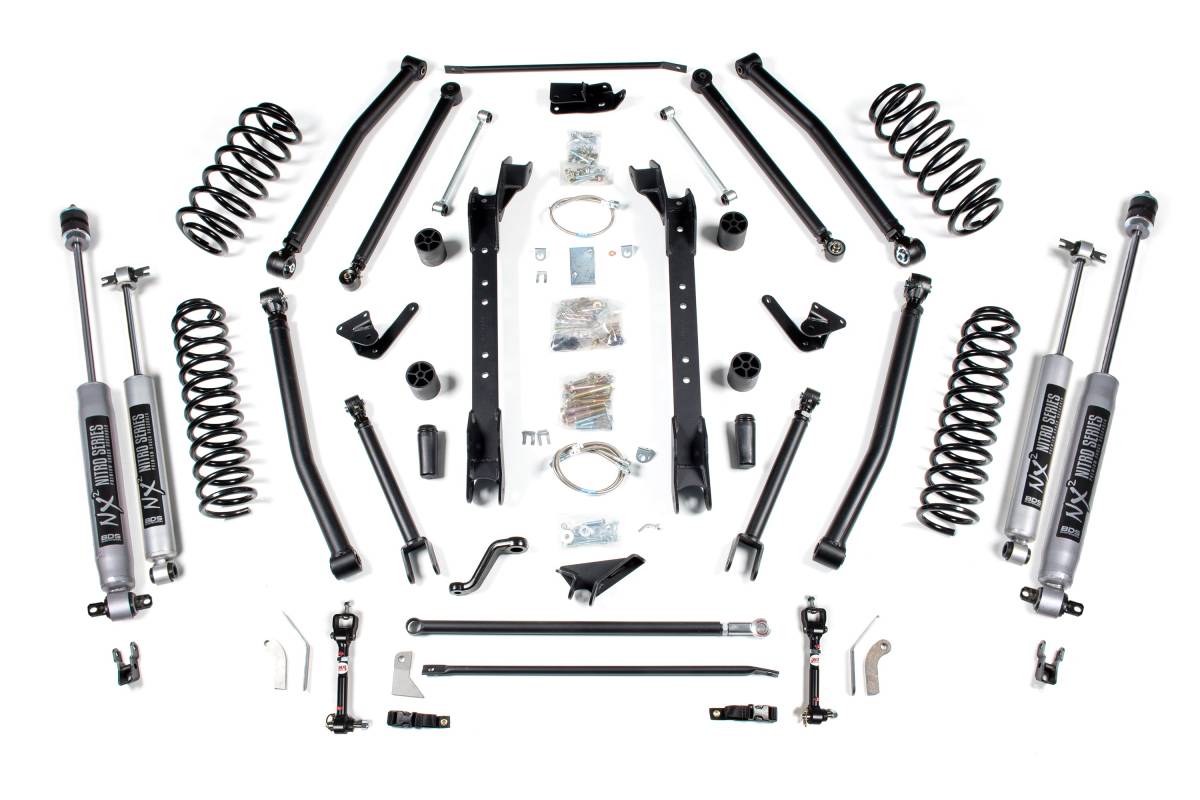

This long arm lift kit for the 1997–2006 Jeep Wrangler TJ and TJ Rubicon includes four new Pro-Ride Coil Springs capable of full coil bind. The kit includes a pitman arm for steering correction, an adjustable front track bar with a track bar relocation system to match track bar angles with steering angles, and four long lower arms with flex ends to ensure off-road performance.

Features

• Four new Pro-Ride Coil Springs capable of full coil bind
• All new long upper arms, adjustable to fine-tune rear pinion angles and front caster angles
• Pitman arm for steering correction
• Adjustable front track bar with track bar relocation system
• Four long lower arms with flex ends for off-road performance
• D.O.T. approved Kevlar-lined stainless steel brake lines for front and rear
• Ultimate sway bar disconnects for the front and extended links for the rear
• NX² Series shocks

Specifications

• Lift Height: 6–7.5"
• Front Lift Method: Coil Spring
• Front Lift Height: 6"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 6"
• Shocks Included: No

Installation

• Estimated Installation Time: 10 hours

Important Notes

• A slip yoke eliminator kit and CV style rear drive shaft is required.
• May require exhaust modification.
• Some welding required.
• Long Arm systems also fit short wheel base Rubicon models (not Unlimited models).
