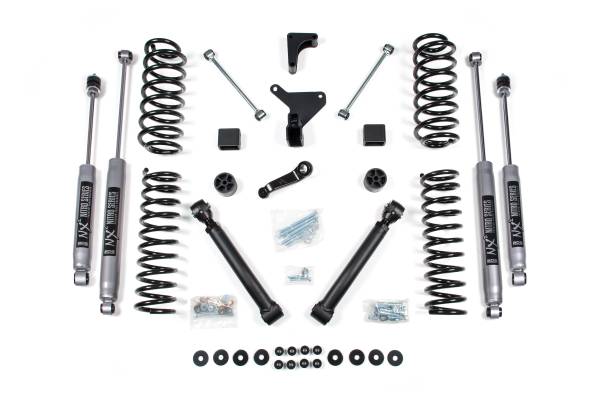

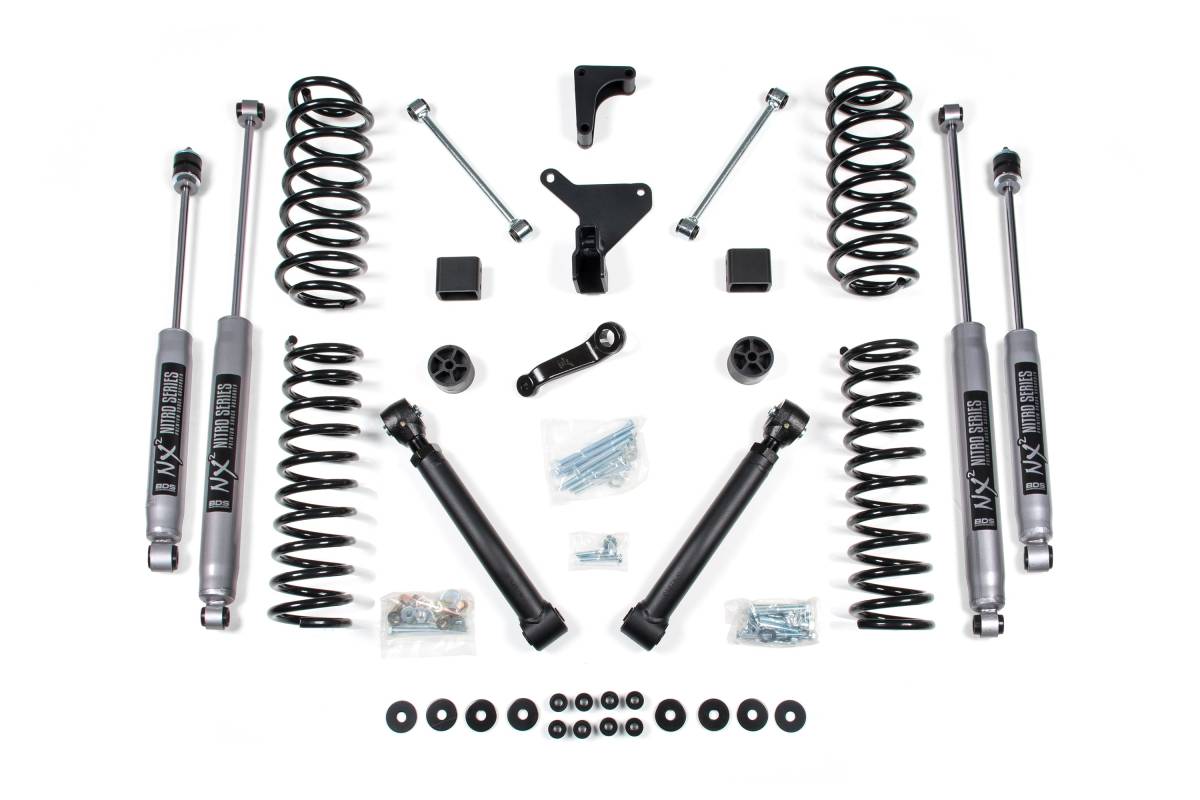

BDS 4 Inch Lift Kit | 1999-2004 Jeep Grand Cherokee WJ | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

BDS Suspension offers a 4-inch suspension lift kit for the 1999–2004 Jeep Grand Cherokee WJ, designed to improve stance and provide clearance for up to 31-inch tires. The front kit includes BDS Pro-Ride coil springs, a heavy duty track bar relocation bracket, a drop pitman arm to correct steering geometry, a transfer case drop kit to reduce driveline angles, and heavy duty adjustable lower control arms for axle rotation adjustment. The rear kit features Glide-Ride coil springs for maximum travel, a rear upper tri-link spacer, and extended sway bar links. The kit is completed with a choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks.

Features

• Pro-Ride coil springs offer improved ride quality and more articulation
• Extended rear link for improved off-road flex
• New lower control arms to properly control front axle position
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 Nitro Series gas or FOX 2.0 IFP Performance Series shocks for improved damping
• Provides clearance for up to 31-inch tires
• Full-length, Jeep-specific Pro-Ride coil springs manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind
• Transfer case drop kit included to reduce driveline angles
• Heavy duty drop pitman arm corrects steering geometry

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 31 inches
• Front Springs: BDS Pro-Ride coil springs (high tensile steel, direct OE replacement)
• Rear Springs: Glide-Ride coil springs
• Includes: Track bar relocation bracket, drop pitman arm, transfer case drop kit, adjustable lower control arms, rear upper tri-link spacer, extended sway bar links
• Shock Option: NX2 Nitro Series or FOX 2.0 IFP Performance Series (application-specific tuning)

Installation

• Estimated Time: 4 hours
• Difficulty: Moderate
• Tools Required: Torque Wrench, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• Vehicles equipped with a V8 may not achieve the stated lift height.
• Front driveline modification may be required.
