BDS 2 Inch Lift Kit | 1986-1991 Jeep Comanche MJ | Dana 35 Rear Axle

Configured for Jeep Comanche MJ trucks equipped with the Dana 35 rear axle. Includes u-bolts sized at 2-3/4" wide to fit the Dana 35 axle housing. Measure your existing u-bolt I.D. or axle diameter to confirm fitment before ordering. Note: some 1987–1990 models came with a Dana 44 — measure and contact BDS for proper u-bolt fitment.

Overview

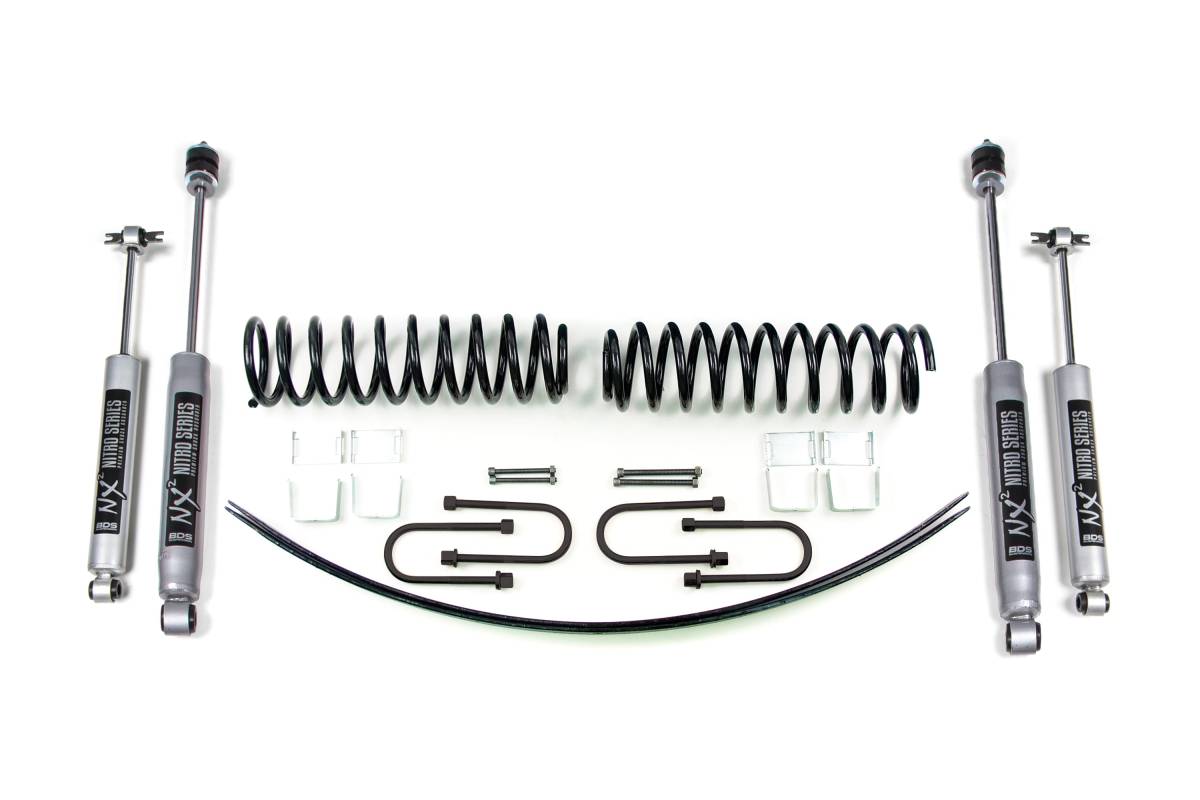

This 2-inch lift kit from BDS Suspension is designed to improve the stance, performance, and capability of the 1986–1991 Jeep Comanche MJ. The kit provides clearance for up to 30-inch tires and includes all components necessary for installation. Up front, ProRide coil springs deliver the correct lift height with a smooth, predictable ride. Out back, a long thin add-a-leaf increases rear height without creating a harsh ride. Shocks are specially tuned for this application to complement the spring rates and improve overall damper performance.

Features

• ProRide coil springs offer improved ride quality and more articulation
• Easy, 100% bolt-on installation
• NX2 gas shocks for improved damping
• Allows clearance for 30" tires
• Long thin add-a-leaf rear spring for added height without a harsh ride
• ProRide coil springs manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind

Specifications

• Lift Height: 2 inches
• Front: ProRide full-length, Jeep-specific coil springs (direct OE replacement)
• Rear: Long thin add-a-leaf
• Shocks: NX2 Nitro Series gas shocks (specially tuned for this application)
• Maximum tire clearance: 30 inches
• Coil spring material: High tensile steel

Installation

• Estimated Time: 4 hours
• Difficulty: Moderate
• Tools Required: Torque Wrench, Ball Joint Separation Tool, Drill / Bit Set, Jack / Jack Stands

Important Notes

The Jeep Comanche was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts. Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987–1990 models came with a Dana 44 — measure and call BDS for proper u-bolt fitment.
