BDS 3 Inch Lift Kit | 1984-2001 Jeep Cherokee XJ | Leaf Springs | Dana 35 Axle | NX2 Nitro Series

Configured for the Dana 35 rear axle with full replacement Leaf Springs in the rear for a complete suspension upgrade. Paired with NX2 Nitro Series shocks featuring nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, self-lubricating seals, and silver powder coat finish.

Overview

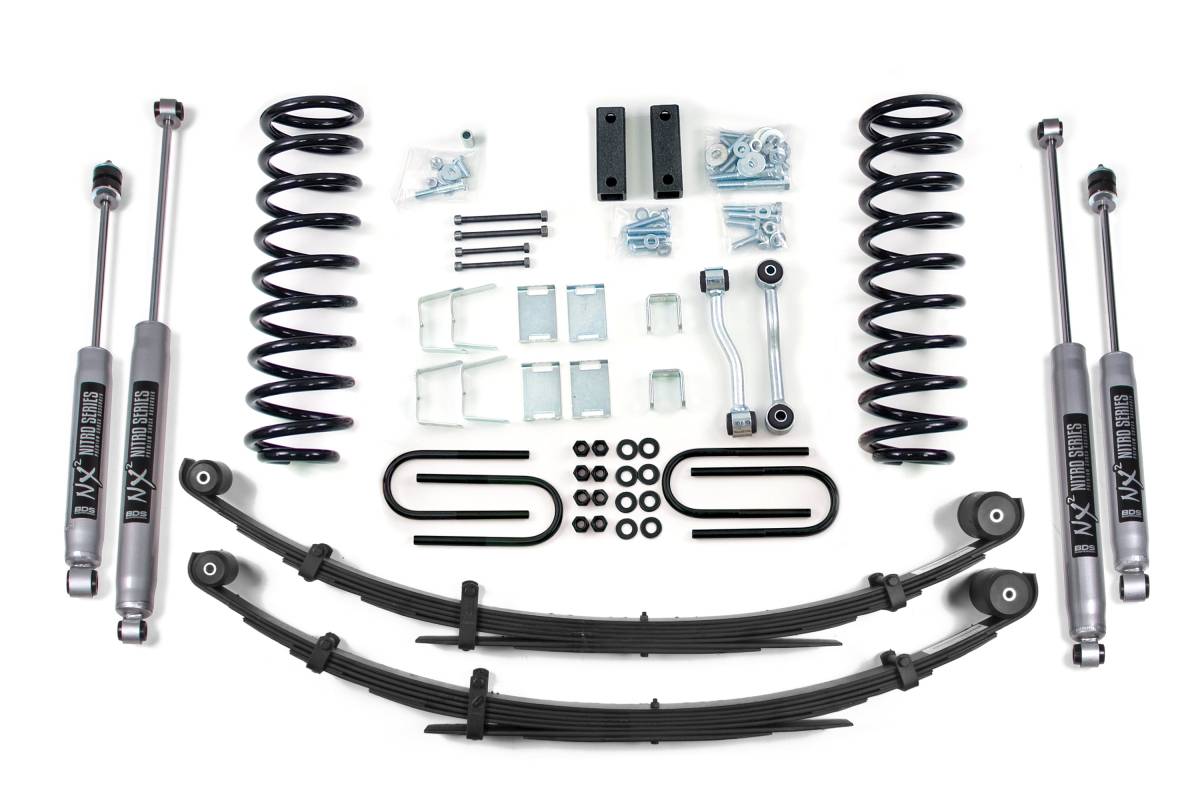

This 3-inch lift kit from BDS Suspension is designed to improve the stance, performance, and capability of the 1984-2001 Jeep Cherokee XJ. The kit includes everything necessary to set up the Cherokee properly, providing clearance for up to 31-inch tires. Up front, the kit features Glide-Ride coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles. In the rear, the kit utilizes either a long thin add-a-leaf or replacement leaf springs to add height, along with a 5/8-inch lift block to level the Jeep. A pair of full-length, Jeep-specific Pro-Ride coil springs are included up front, manufactured from high tensile steel and engineered with properly sized wire diameter for maximum reliability without premature coil bind. Each kit is completed with your choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks.

Features

• Pro-Ride coil springs offer improved ride quality and more articulation
• Transfer case drop maintains proper driveline angles
• Extended sway bar links included
• 5/8-inch lift block to level the rear of the Jeep
• 100% bolt-on installation
• Provides clearance for up to 31-inch tires
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks for improved damping

Specifications

• Lift Height: 3 inches
• Front Lift: Glide-Ride Pro-Ride coil springs — full-length, high tensile steel, OE replacement fitment

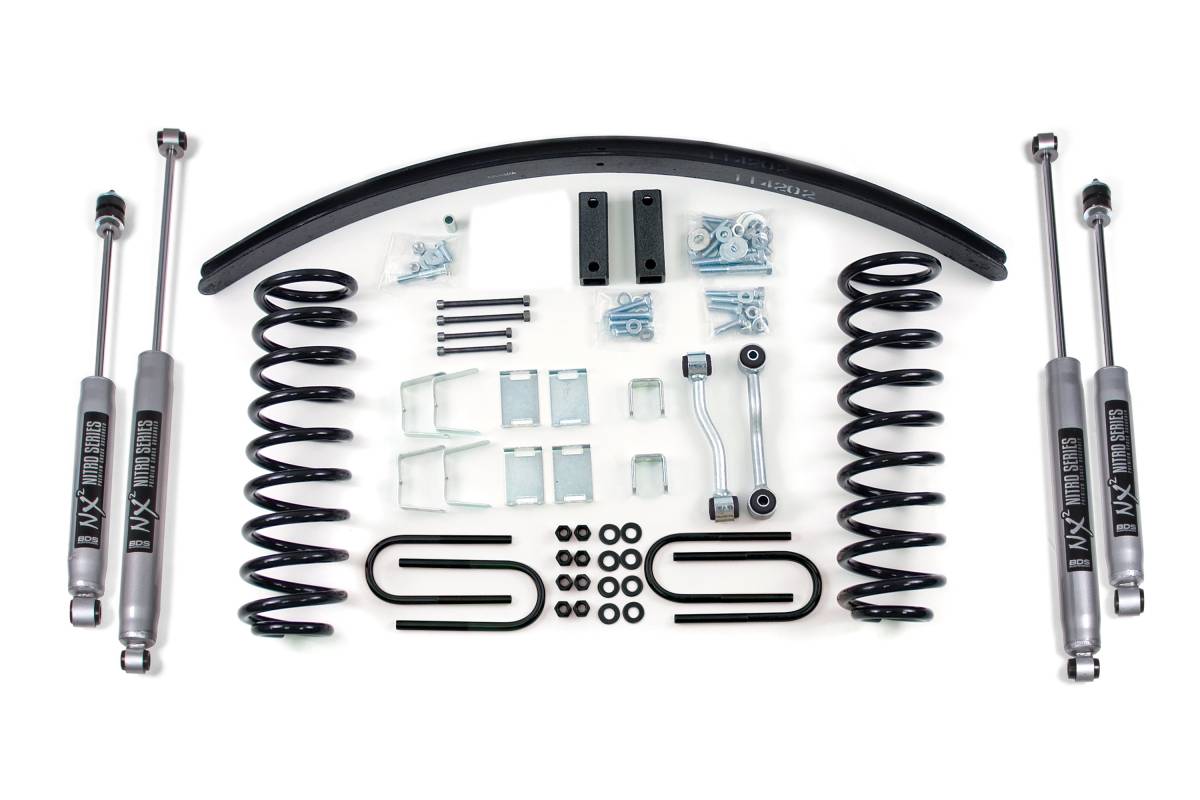

• Rear Lift: Block Kit with Add-A-Leaf (multi-leaf progressive design, cast iron lift blocks, new center pins) or Leaf Springs — see variant options
• Rear Axle Compatibility: Chrysler 8.25 or Dana 35 — see variant options
• Tire Clearance: Up to 31 inches
• Transfer Case Drop: Included (not required for 2WD models)

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate

Important Notes

Verify the make/model of rear axle prior to ordering. Some 1987–90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment. Transfer case lowering kit is not required for 2WD models.

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). Measure the diameter of the axle or the I.D. of your rear u-bolts to confirm fitment: Chrysler axles require 3-inch wide u-bolts; Dana 35 axles require 2-3/4-inch wide u-bolts. Some 1987–90 models came with a Dana 44 — measure and call BDS for proper u-bolt fitment.
