BDS 1.75 Inch Lift Kit | 1984-2001 Jeep Cherokee XJ | Chrysler 8.25 Rear Axle | NX2 Nitro Series Shocks

Configured for the Chrysler 8.25 rear axle (requires 3-inch wide u-bolts). Includes NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

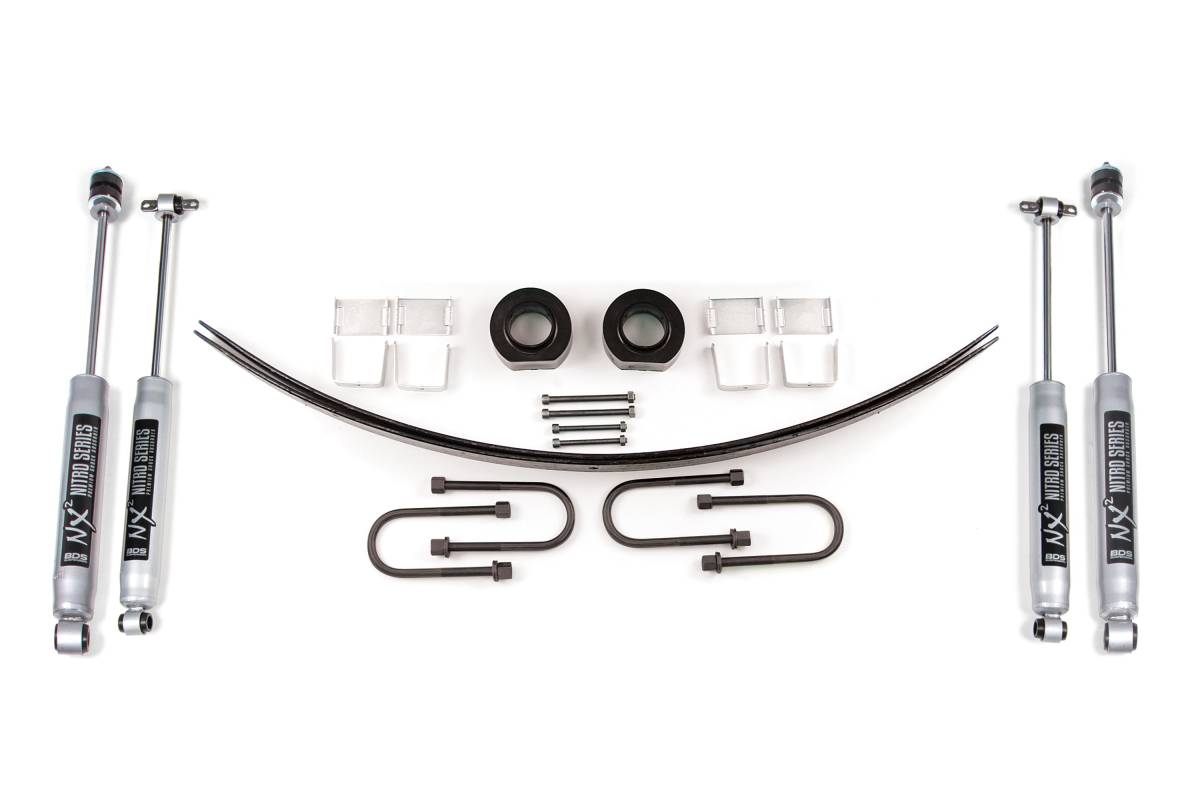

BDS Suspension has engineered this 1-3/4 inch lift kit specifically for the 1984-2001 Jeep Cherokee XJ. Designed to improve stance, performance, and capability, this kit provides additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. The kit includes two front 1-3/4 inch urethane coil spring spacers and long rear thin add-a-leaf springs, paired with your choice of NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• Front urethane coil spacer maintains factory ride quality
• Easy, 100% bolt-on installation
• NX2 gas shocks for improved damping
• Allows clearance for 30-inch tires

Specifications

• Lift Height: 1-3/4 inch (1.75 inch)
• Includes: Two front 1-3/4 inch urethane coil spring spacers
• Includes: Long rear thin add-a-leaf springs
• Includes: NX2 Nitro Series or FOX 2.0 Performance Series shocks (per selected variant)
• Compatible with Chrysler 8.25 or Dana 35 rear axles (u-bolt size varies by axle)

Installation

• Estimated Time: 4 hours
• Difficulty: Moderately Easy
• Tools Required: Torque Wrench, Torx Bit / Socket Set, Drill / Bit Set, Jack / Jack Stands

Important Notes

Transfer case lowering kit is not required for 2WD models.

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). Measure your rear u-bolts to ensure correct fitment. Chrysler axles require 3-inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987–1990 models came with a Dana 44 — measure and contact BDS for proper u-bolt fitment.
