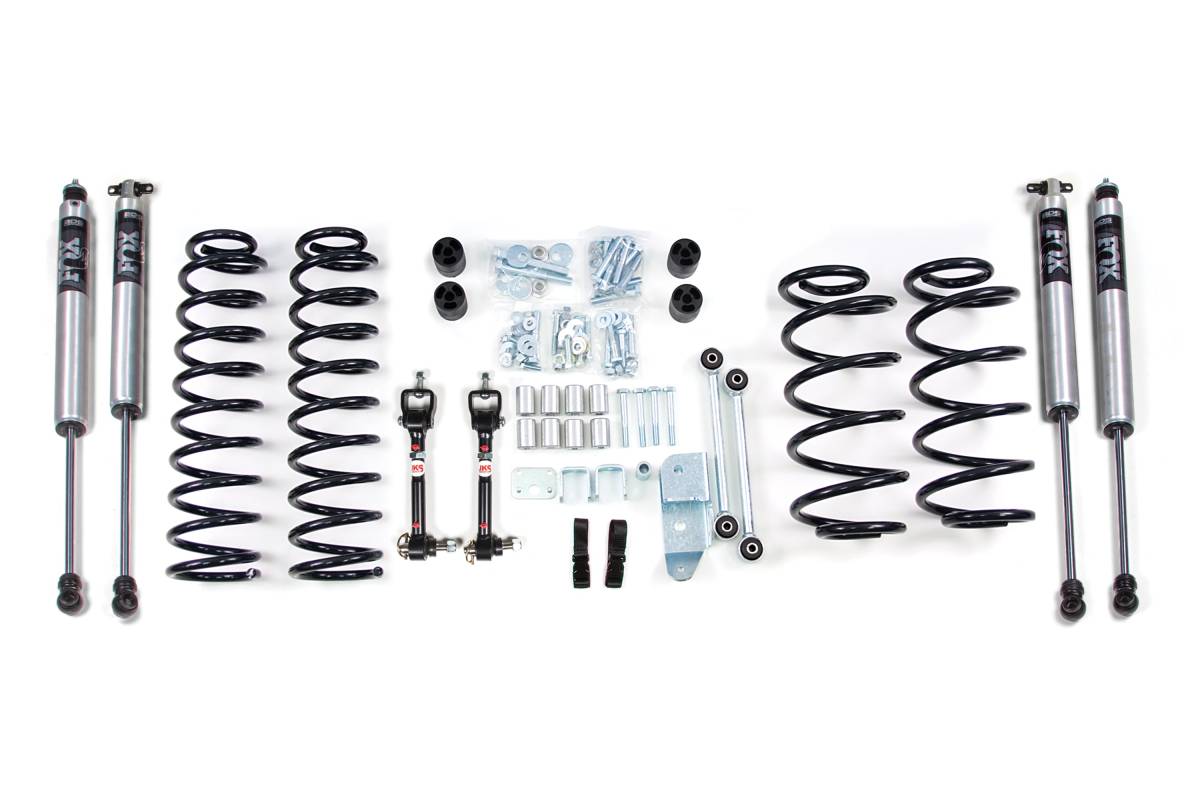

BDS 3 Inch Lift Kit | 1997-2002 Jeep Wrangler TJ | w/ FOX 2.0 Performance Series Shocks

Configured with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 3-inch lift kit from BDS Suspension is designed to improve the stance, performance, and off-road capability of the 1997–2002 Jeep Wrangler TJ. The kit includes everything needed to complete the installation and provides clearance for up to 33-inch tires. Up front, it features Glide-Ride coil springs, JKS sway bar link disconnects to improve off-road articulation, bump stop extensions, and a transfer case drop to maintain proper driveline angles. In the rear, matching Glide-Ride coil springs add lift height without creating a harsh ride, along with a rear track bar bracket to level out the Jeep. The kit is available with your choice of specially tuned NX2 Nitro Series or FOX 2.0 IFP Performance Series shocks. ProRide coil springs are full-length, Jeep-specific units manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind.

Features

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quick disconnects and extended rear link for improved off-road flex
• Rear track bar bracket repositions rear axle under vehicle

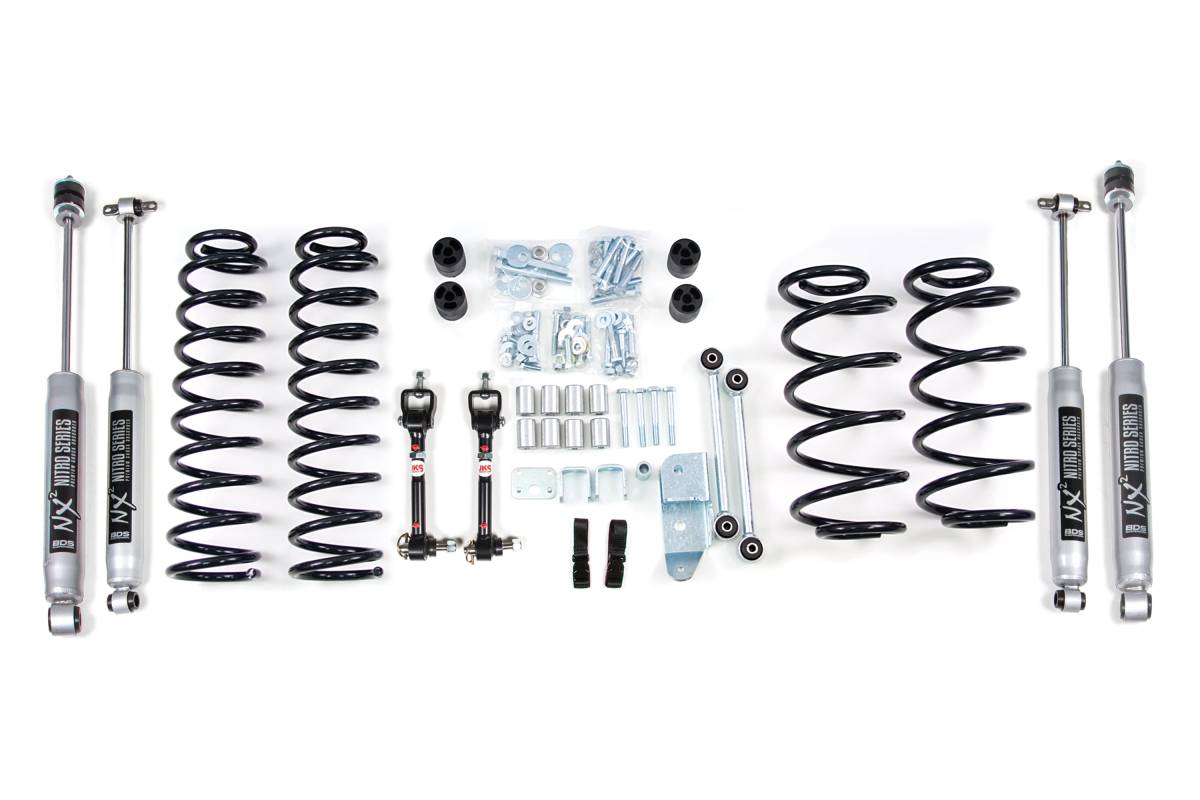

• Choice of NX2 Nitro Series gas or FOX 2.0 IFP Performance Series gas shocks for improved damping
• Provides clearance for up to 33-inch tires

Specifications

• Lift Height: 3 inches
• Tire Clearance: Up to 33 inches
• Front: Glide-Ride coil springs, JKS sway bar link disconnects, bump stop extensions, transfer case drop
• Rear: Glide-Ride coil springs, rear track bar bracket
• Coil spring material: High tensile steel
• Shock options: NX2 Nitro Series or FOX 2.0 IFP Performance Series

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Torque Wrench, Drill / Bit Set, Jack / Jack Stands

Important Notes

Models with manual transmissions may need the shifter opening in the floorboard enlarged. A stabilizer and front lower control arms are highly recommended.
