BDS 4 Inch Lift Kit | 1976-1981 Jeep CJ5/CJ7 | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish with vehicle-specific valving for better control.

Overview

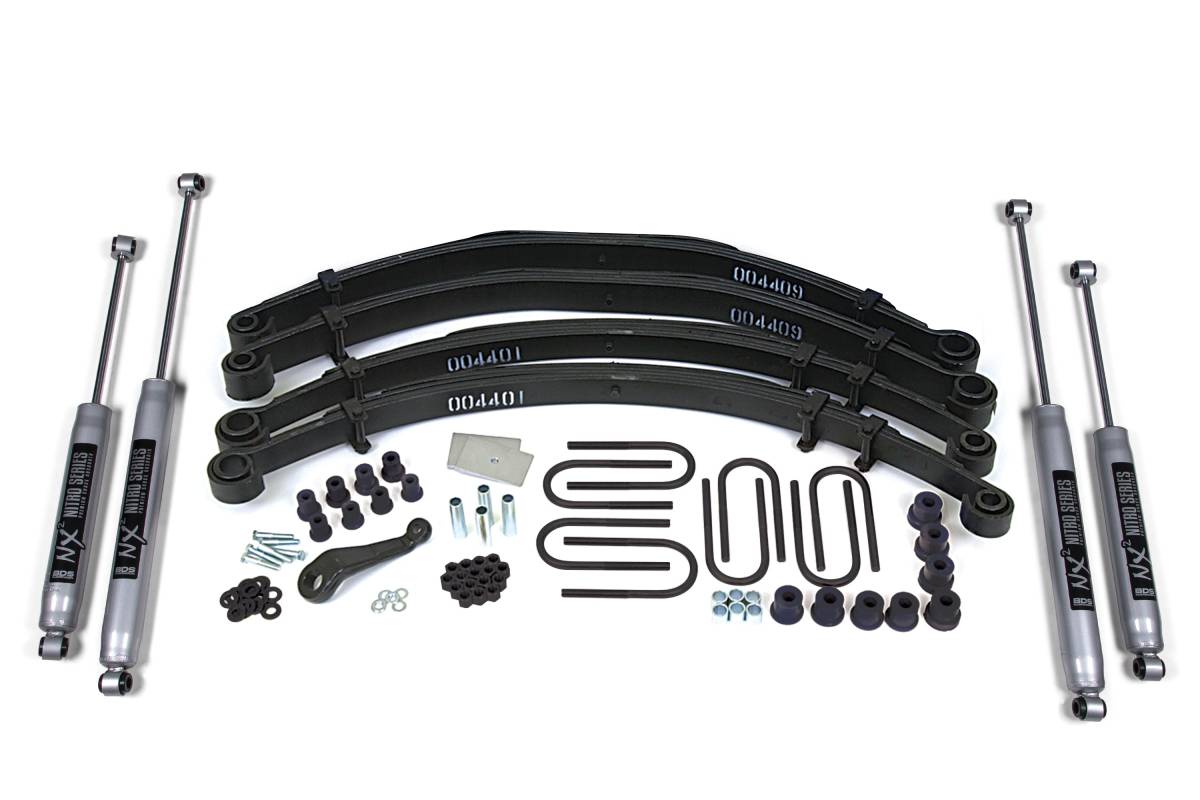

BDS Suspension has designed this 4-inch lift kit for the 1976–1981 Jeep CJ5 and CJ7 to improve stance, performance, and capability. This kit includes everything necessary to properly lift your Jeep with clearance for up to 33-inch tires. Included are front and rear Glide-Ride leaf springs with new U-bolts, a steering pitman arm, and a transfer case drop. The kit is available with your choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks.

BDS Glide-Ride leaf springs are engineered with a multi-leaf progressive spring rate design using an exclusive triple-stage construction. Features include tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, and a full military wrap to protect spring eyes. This design provides a smooth ride under any load and flexibility throughout the suspension cycle.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased load capacity
• Multi-leaf progressive spring rate design with triple-stage construction
• Tapered leafs with anti-friction pads
• Bolt-style leaf alignment clamps
• Full military wrap on spring eyes for rock protection
• Steering pitman arm included
• Transfer case drop included
• New U-bolts included
• Choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks with vehicle-specific valving
• Allows fitment of up to 33-inch tires

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate

Important Notes

• Vehicles equipped with the optional Dana 44 axle will require 040005 (Qty. 4) U-bolts listed in the accessories.
• If your vehicle is equipped with manual steering, you can buy the kit without the PS pitman arm, but BDS Suspension does not offer a manual steering pitman arm — you will need to acquire this from another source.
• If your vehicle is equipped with an anti-sway bar, a sway bar extension kit (available in the accessories section) will be necessary for your sway bar to function properly.
• If your CJ is heavy in the rear (e.g., hard top with full-size spare), consider the 114208 add-a-leaf kit to stiffen the rear leaf springs and reduce the possibility of low rear ride height. This is recommended for all CJ8 Scramblers.
• Shackle bushing kit 074002 (listed in accessories) is highly recommended.
• Extended brake lines are recommended.
