BDS 4 Inch Lift Kit | 1973-1976 Ford F100/F150 4WD | Block Kit Rear

This configuration includes a cast iron lift block rear kit with tapered design for correct pinion angle and an offset steel pin and hole to restore axle position. Includes new center pins for a secure fit.

Overview

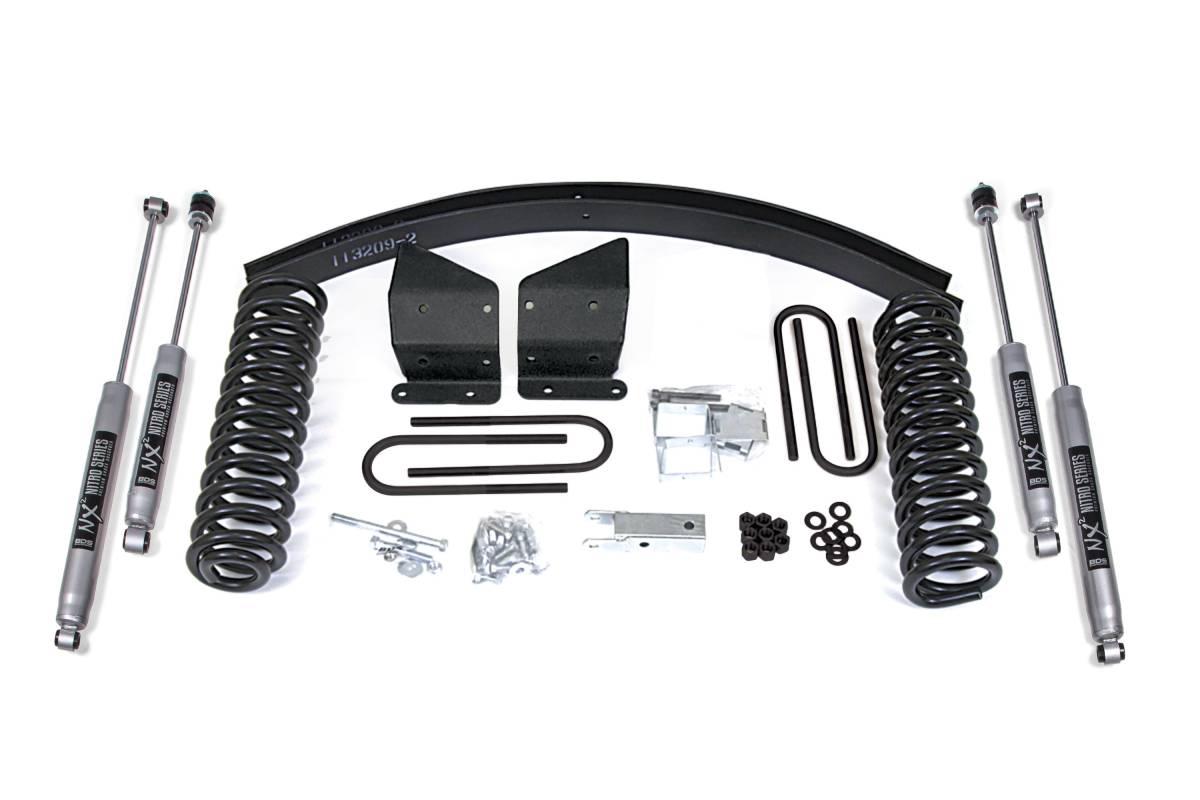

This 4-inch suspension lift kit by BDS Suspension is designed for 1973–1976 Ford F100 and F150 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 33-inch tires. Up front, the kit includes Pro-Ride coil springs, radius arm drop brackets, a track bar relocation bracket for steering correction, bump stop brackets, and precision-tuned NX2 nitrogen charged shocks. The rear of the kit is available in multiple configurations and includes a matching set of NX2 Nitro shocks.

Features

• Easy, bolt-on installation
• Pro-Ride dual-rate coil springs for smooth performance across various terrains
• Heavy-duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide a level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for improved control
• Track bar relocation bracket for steering correction
• Provides clearance for up to 33-inch tires

Specifications

• Lift Height: 4 inches
• Fits: 1973–1976 Ford F100 / F150 4WD
• Front components: Pro-Ride coil springs, radius arm drop brackets, track bar relocation bracket, bump stop brackets, NX2 Nitro shocks
• Rear components: Vary by selected configuration (see variant options); includes NX2 Nitro shocks on all variants
• Rear lift blocks: Cast iron construction, tapered for correct pinion angle, offset steel pin and hole to restore axle position

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller

Important Notes

Alignment "C" bushings may be required. #003408 (4") Leaf Springs and #003608 (6") Leaf Springs come with OE style bushings installed. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
