BDS 6 Inch Lift Kit w/ Radius Arms | 1980-1996 Ford Bronco 4WD | Block Kit & Add-A-Leaf

This configuration includes a Block Kit and Add-A-Leaf for the rear suspension. The add-a-leaf helps freshen up old, worn-out factory leaf springs, with cast iron blocks for maximum strength. Includes new center pins, eliminates the need for a separate lift block, reduces axle wrap, and creates a more controlled and stable feel. Features a multi-leaf progressive design for a smooth ride while maintaining factory payload weight ratings.

Overview

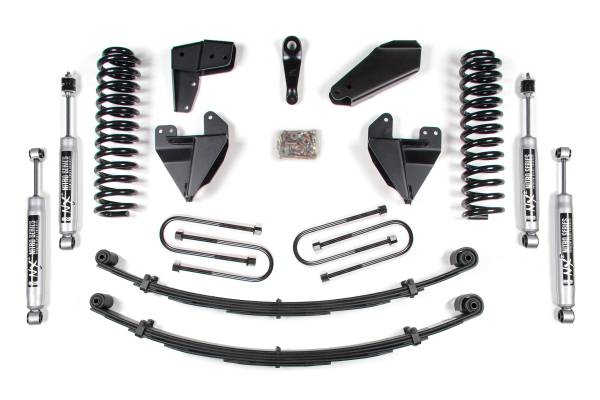

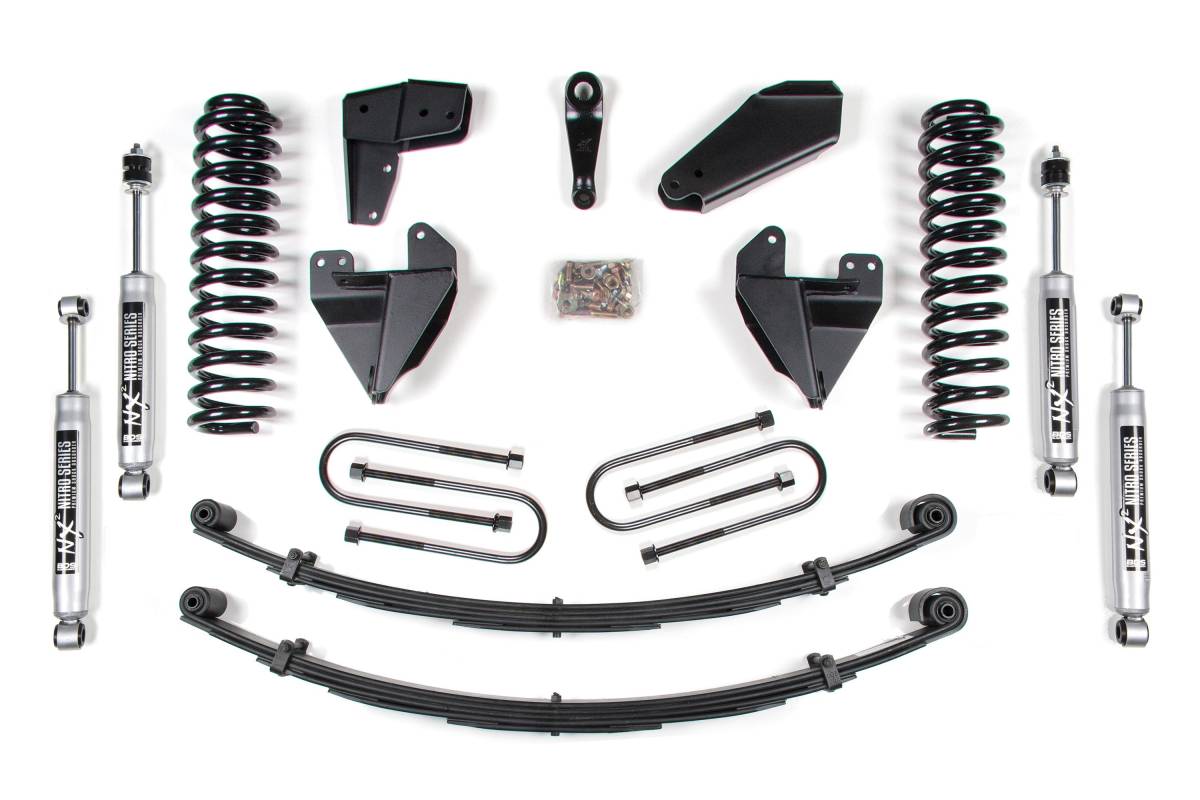

This 6-inch suspension lift kit with extended radius arms from BDS Suspension is designed for 1980–1996 Ford Bronco full-size 4WD trucks. The kit is engineered to improve stance, performance, and off-road capability, providing clearance for up to 35-inch tires. Up front, the kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, a forged pitman arm for steering correction, and precision-tuned NX2 nitrogen charged shocks. In the rear, the kit utilizes a high-strength lift block, longer U-bolts, and a matching set of NX2 Nitro shocks. The extended radius arm system reduces caster change through wheel travel, creating a more capable and controlled steering feel both on and off road.

Features

• Easy, bolt-on installation
• Pro-Ride dual-rate coil springs for smooth performance across various terrains
• Extended high-strength tubular radius arms replacing factory stamped steel units
• Heavy-duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide a level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for improved control
• Forged pitman arm for steering correction
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 6 inches
• Fits: 1980–1996 Ford Bronco Full Size 4WD
• Front: Pro-Ride coil springs, extended tubular radius arms, radius arm drop mounts, axle pivot relocation brackets, forged pitman arm, NX2 Nitro shocks
• Rear: High-strength lift block, longer U-bolts, NX2 Nitro shocks
• Tire Clearance: Up to 35 inches

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Air Hammer (Recommended), Metric/Standard Socket Wrench Set, Drill / Bit Set, Pitman Arm Puller

Important Notes

• Front end alignment required after installation.
• Alignment cams may be required.
• #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
• #003208, #003408, and #003608 come with OE style bushings installed.
• Add two BDS85819 front auxiliary shocks in the customize menu if the vehicle is equipped with factory dual mounts.
• Extended brake lines required.
