BDS 4 Inch Lift Kit | 1980-1996 Ford Bronco 4WD | Leaf Springs Rear

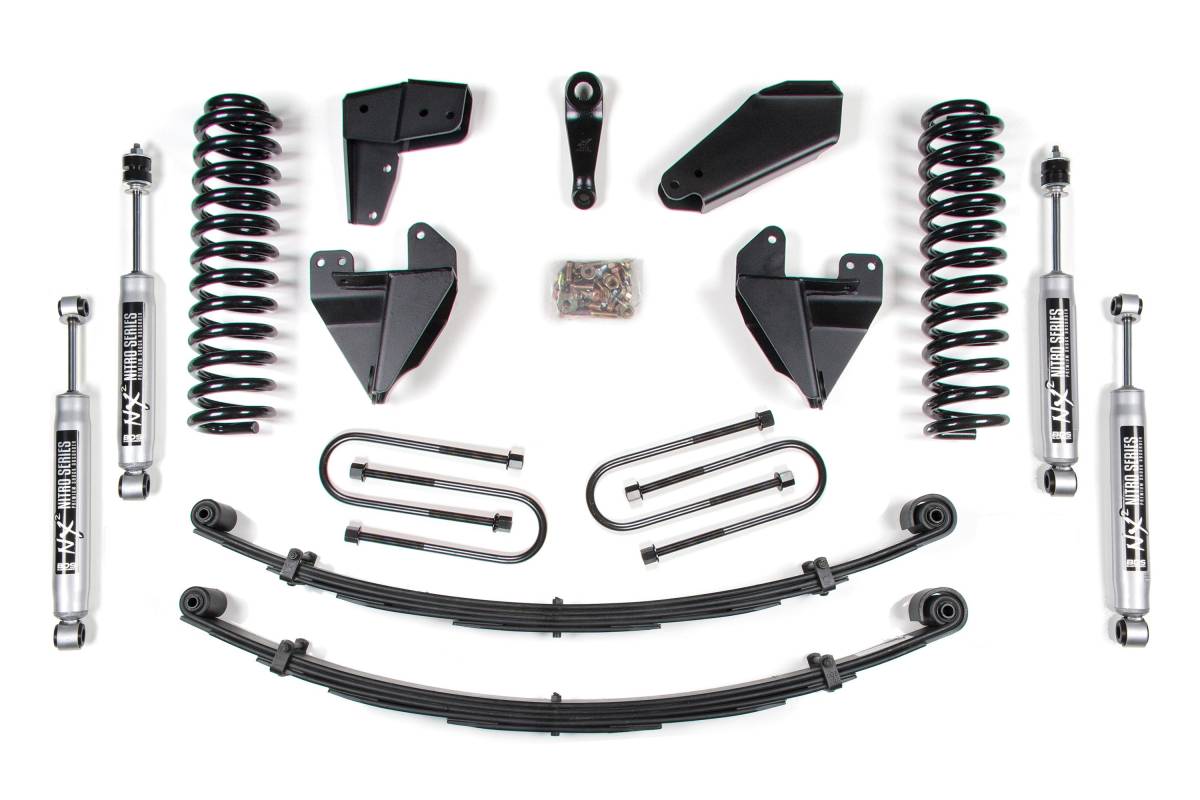

Rear lift achieved with replacement leaf springs. Multi-leaf progressive design eliminates the need for a lift block, reduces axle wrap, and creates a more controlled and stable feel. Maintains factory payload weight ratings.

Overview

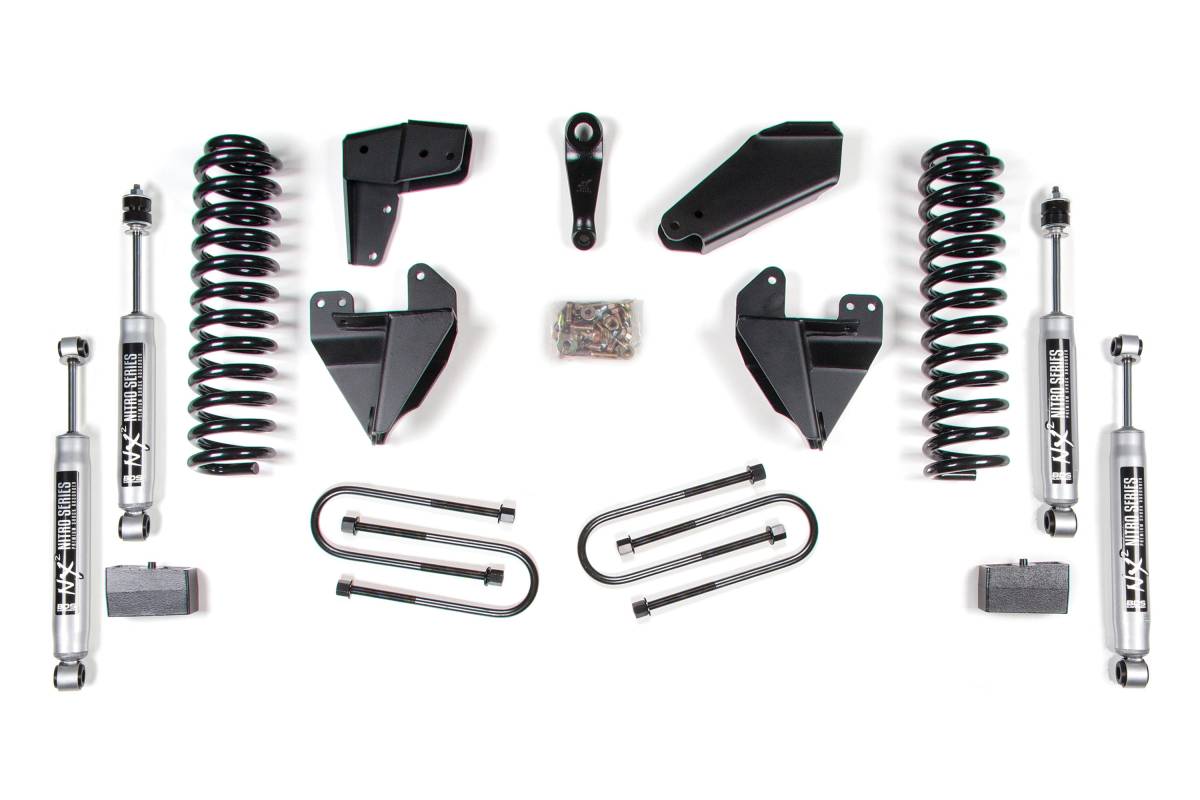

This 4-inch suspension lift kit from BDS Suspension is designed for 1980–1996 Ford Bronco 4WD vehicles. The kit improves stance, performance, and capability while providing clearance for tires up to 33 inches. Up front, the kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, a forged pitman arm for steering correction, and precision-tuned NX2 nitrogen charged shocks. The rear utilizes a high-strength lift block, longer u-bolts, and a matching set of NX2 Nitro shocks. Rear lift configuration options are available depending on your needs.

Features

• Easy, bolt-on installation
• Pro-Ride dual-rate coil springs for smooth ride across various terrains
• Heavy-duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for improved control
• Forged pitman arm for steering correction
• Axle pivot relocation brackets and radius arm drop brackets included

Specifications

• Lift Height: 4 inches
• Maximum Tire Clearance: Up to 33 inches
• Fits: 1980–1996 Ford Bronco 4WD
• Front: Pro-Ride coil springs, radius arm drop brackets, axle pivot relocation brackets, forged pitman arm, NX2 Nitro shocks
• Rear: High-strength lift block, longer u-bolts, NX2 Nitro shocks (rear configuration varies by variant)

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Tools Required: Air Hammer (Recommended), Metric/Standard Socket Wrench Set, Drill / Bit Set, Pitman Arm Puller

Important Notes

• If your vehicle is equipped with a front anti-sway bar, part #123401 is available in the options.
• Does not fit Broncos without power steering.
• Front alignment cams (available in accessories) may be required for alignment.
• Extended brake lines are required for all 4–6 inch lift systems.
