BDS 6 Inch Lift Kit | Ford F250/F350 Super Duty (2005-2007) 4WD Diesel | 3 Inch Block Kit + Add-A-Leaf Without Overload | FOX 2.0 Performance Series

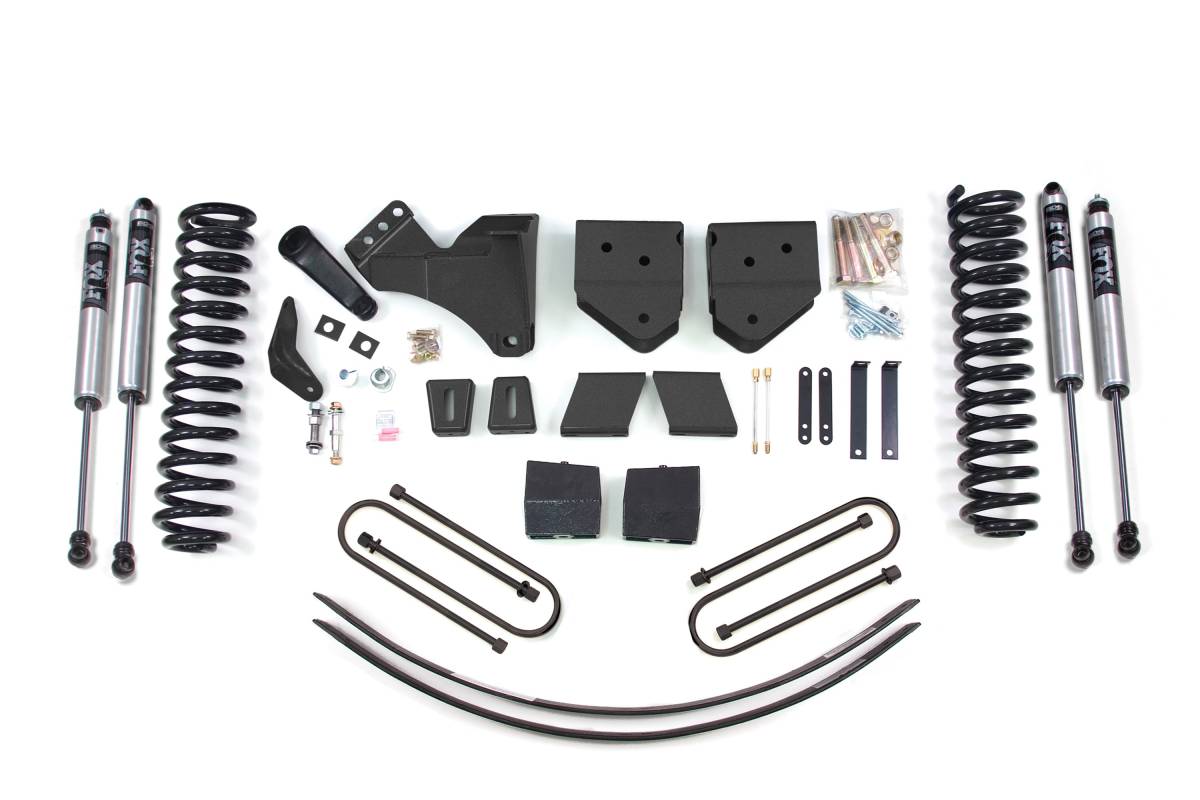

Rear lift via a 3 Inch Block Kit + Add-A-Leaf (Without Overload) — cast iron block with new center pins, plus an Add-A-Leaf to freshen up worn factory leaf springs. Multi-leaf progressive design maintains factory payload weight ratings. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

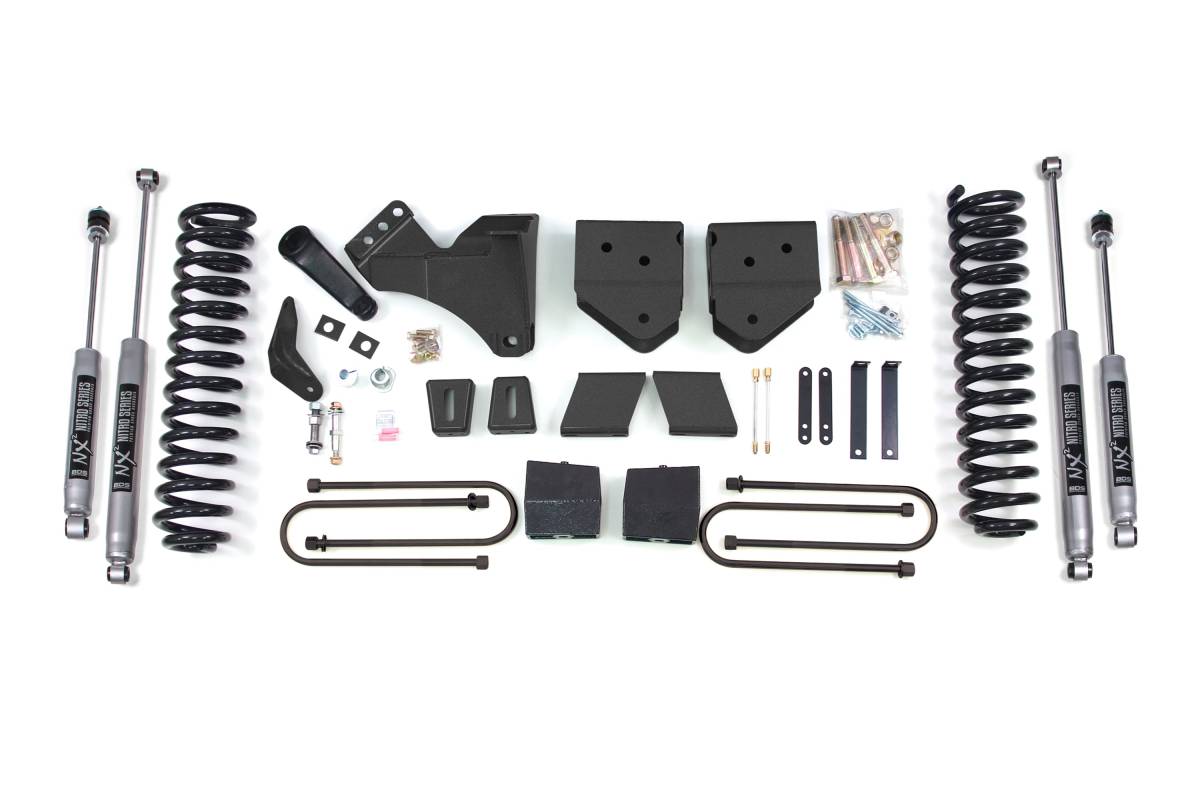

This 6-inch lift kit from BDS Suspension is designed for 2005–2007 Ford Super Duty F250 and F350 diesel trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear, the kit utilizes high-strength lift components, longer U-bolts, brake line brackets, and a matching set of shocks — with multiple rear lift and shock options available.

Features

• 100% bolt-on installation
• Diesel-specific Pro-Ride dual-rate coil springs provide lift height and smooth, predictable ride across various terrains
• Heavy-duty radius arm drop brackets provide correct caster and maintain stock driving characteristics
• Forged drop pitman arm minimizes steering angle once lifted
• Heavy-duty track bar drop bracket keeps steering geometry in phase through suspension travel and recenters the front axle
• Sway bar relocation hardware included
• Brake line brackets included front and rear
• Steel lift blocks with built-in bump stop provide level stance from front to rear (block kit options)
• Longer U-bolts included with block kit rear options
• NX2 Nitro Series shocks with vehicle-specific valving for better control (standard option)
• FOX 2.0 Performance Series shocks available for maximum performance on and off-road (upgrade option)

Specifications

• Lift Height: 6 inches
• Tire Clearance: Up to 37 inches
• Front lift components: Pro-Ride diesel-specific coil springs, radius arm drop brackets, forged drop pitman arm, track bar bracket, sway bar relocation, brake line brackets
• Rear lift options: 5 Inch Block Kit (with or without overload), 3 Inch Block Kit + Add-A-Leaf (with or without overload), or Replacement Leaf Springs
• Rear lift blocks: Cast iron construction, tapered for correct pinion angle, offset steel pin to restore axle position
• Add-A-Leaf: Multi-leaf progressive design; maintains factory payload weight ratings
• Replacement Leaf Springs: Multi-leaf progressive design; eliminates need for lift block; reduces axle wrap; maintains factory payload weight ratings
• NX2 Nitro Series shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Grinder/Sanding Disc, Drill/Bit Set, Pitman Arm Puller

Important Notes

These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which you have before ordering. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section. Do not install the 4" rear block kit on vehicles equipped with a factory 3-7/8" rear block. Only use the rear spring option on these vehicles.
