BDS 6 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2005-2007) 4WD Gas | 3 Inch Block Kit + Add-A-Leaf Without Overload | NX2 Nitro Series

Rear lift uses a 3 Inch Cast Iron Block Kit plus Add-A-Leaf (no top-mounted overload spring required). The Add-A-Leaf helps freshen up old or worn factory leaf springs, reduces axle wrap, and creates a more controlled and stable feel. Blocks include new center pins and are tapered for correct pinion angle. Paired with NX2 Nitro Series shocks featuring nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, self-lubricating seals, and silver powder coat finish.

Overview

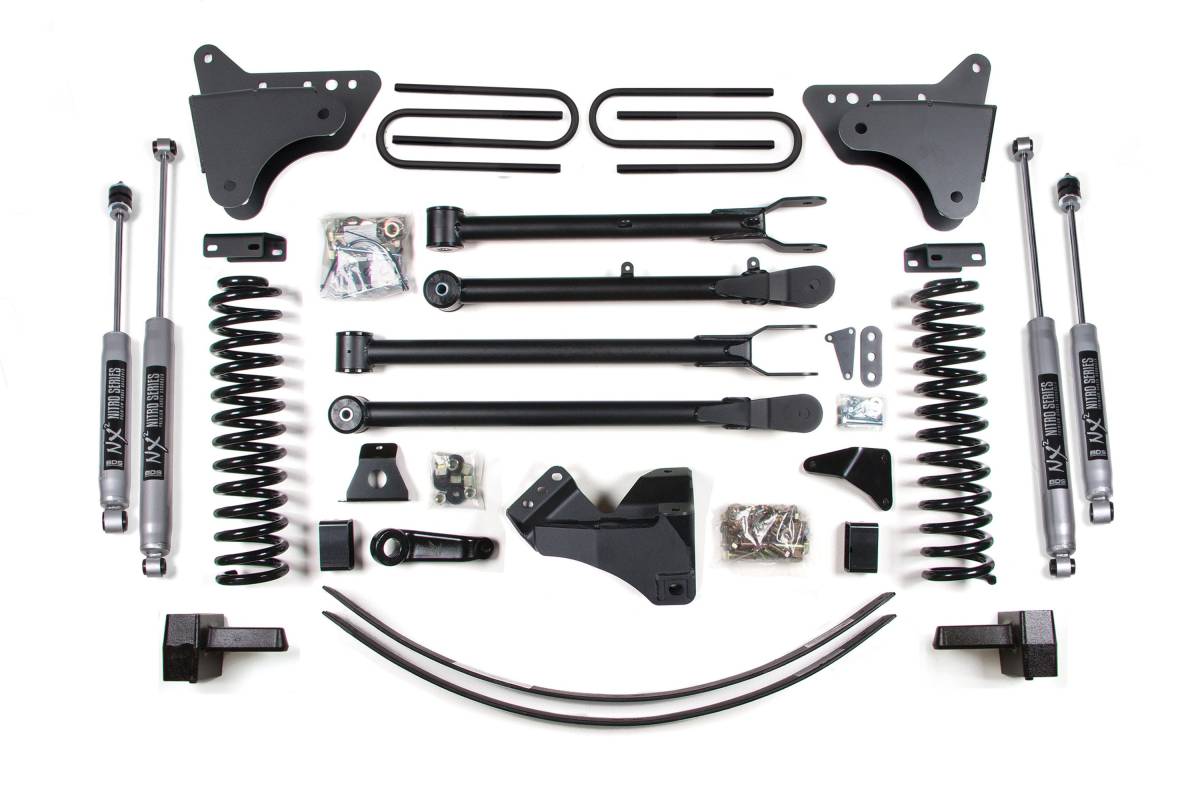

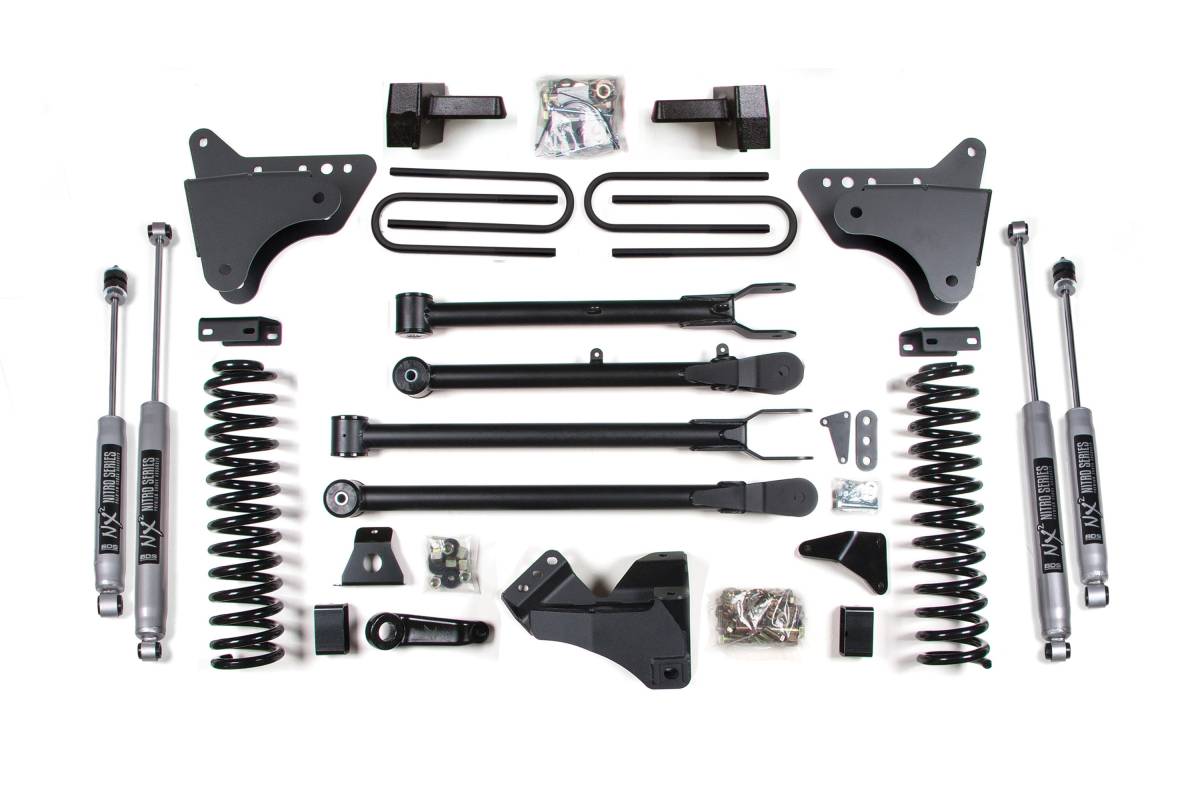

This 6-inch lift kit with 4-link conversion is designed for 2005–2007 Ford Super Duty F250 and F350 gas trucks. The kit provides clearance for up to 37-inch tires and includes all components necessary for a complete installation. Up front, the kit features gas-specific Pro-Ride coil springs, heavy-duty 4-link control arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. In the rear, the kit includes high-strength lift blocks (or optional leaf springs), longer U-bolts, and brake line brackets. The 4-link conversion replaces the factory stamped steel radius arms using high-strength ¼-inch steel brackets that mount HD upper and lower control arms to correct axle positioning and limit caster change throughout wheel travel.

Features

• 100% bolt-on installation
• Gas-specific Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Heavy-duty 4-link control arms for improved handling, stability, strength, and caster control during wheel travel
• High-strength ¼-inch steel 4-link brackets for correct axle positioning
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles
• Sway bar relocation hardware included
• Brake line brackets included front and rear
• Fabricated steel blocks provide a level stance front to rear (block kit variants)
• Clearance for up to 37-inch tires
• NX2 Nitro Series shocks with vehicle-specific valving available as standard option
• FOX 2.0 Performance Series shocks available as upgrade option

Specifications

• Lift Height: 6 inches
• Vehicle Fitment: 2005–2007 Ford F250 / F350 Super Duty 4WD Gas
• 4-Link bracket material: High-strength ¼-inch steel
• Rear lift options: 5-inch cast iron block kit, 3-inch cast iron block kit with Add-A-Leaf, or replacement leaf springs
• Overload compatibility: Available for trucks with or without factory top-mounted overload springs (block kit variants)
• Cast iron blocks: Tapered for correct pinion angle; offset steel pin and hole to restore axle position; includes new center pins
• Add-A-Leaf: Reduces axle wrap, improves stability, helps restore worn factory leaf springs
• Replacement leaf springs: Multi-leaf progressive design; maintains factory payload weight ratings; eliminates need for lift block

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Grinder/Sanding Disc, Drill/Bit Set, Pitman Arm Puller

Important Notes

These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which you have before ordering. The kit comes with a single steering stabilizer, but you can upgrade to a dual system in the customize your kit section. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section. Do not install the 4-inch rear block kit on vehicles equipped with a factory 3-7/8-inch rear block. Only use the rear spring option on these vehicles.
