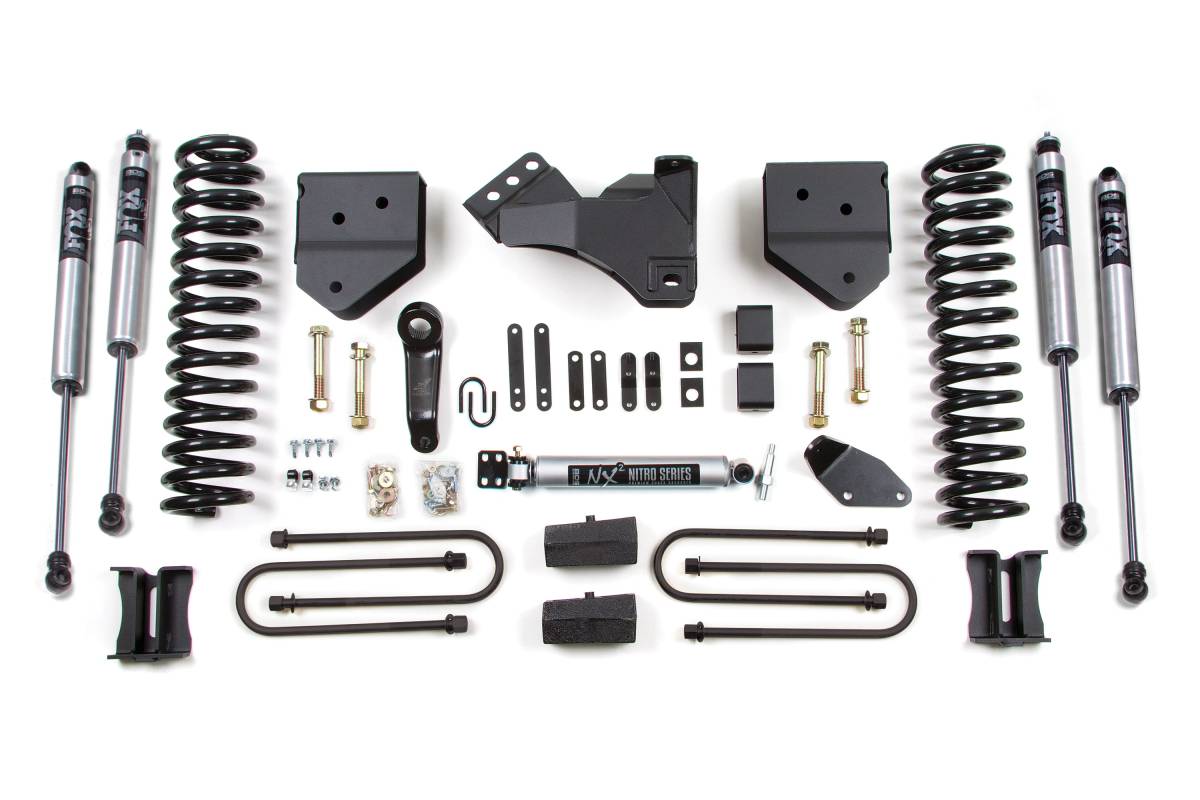

BDS 4 Inch Lift Kit | Ford F250/F350 Super Duty (2005-2007) 4WD Gas | Block Kit w/o Factory Overload | FOX 2.0 Performance Series

Configured with a steel block rear lift kit for trucks without factory top-mounted overload springs and FOX 2.0 Performance Series shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 4-inch lift kit from BDS Suspension is designed for 2005–2007 Ford F250 and F350 Super Duty gas trucks (4WD). It increases ground clearance and provides fitment for tires up to 35 inches. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. In the rear, the kit is available with either a steel lift block (with longer U-bolts) or replacement leaf springs, paired with your choice of NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• 100% bolt-on installation
• Pro-Ride dual-rate coil springs provide lift height and a smooth, predictable ride across various terrains
• Heavy-duty radius arm drop brackets provide correct caster and maintain stock driving characteristics
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles for improved handling
• Sway bar relocation and brake line brackets included
• Steel lift blocks with built-in bump stop provide a level stance from front to rear (block kit variants)
• Multi-leaf progressive rear leaf springs reduce axle wrap, maintain factory payload ratings, and eliminate the need for a lift block (leaf spring variant)

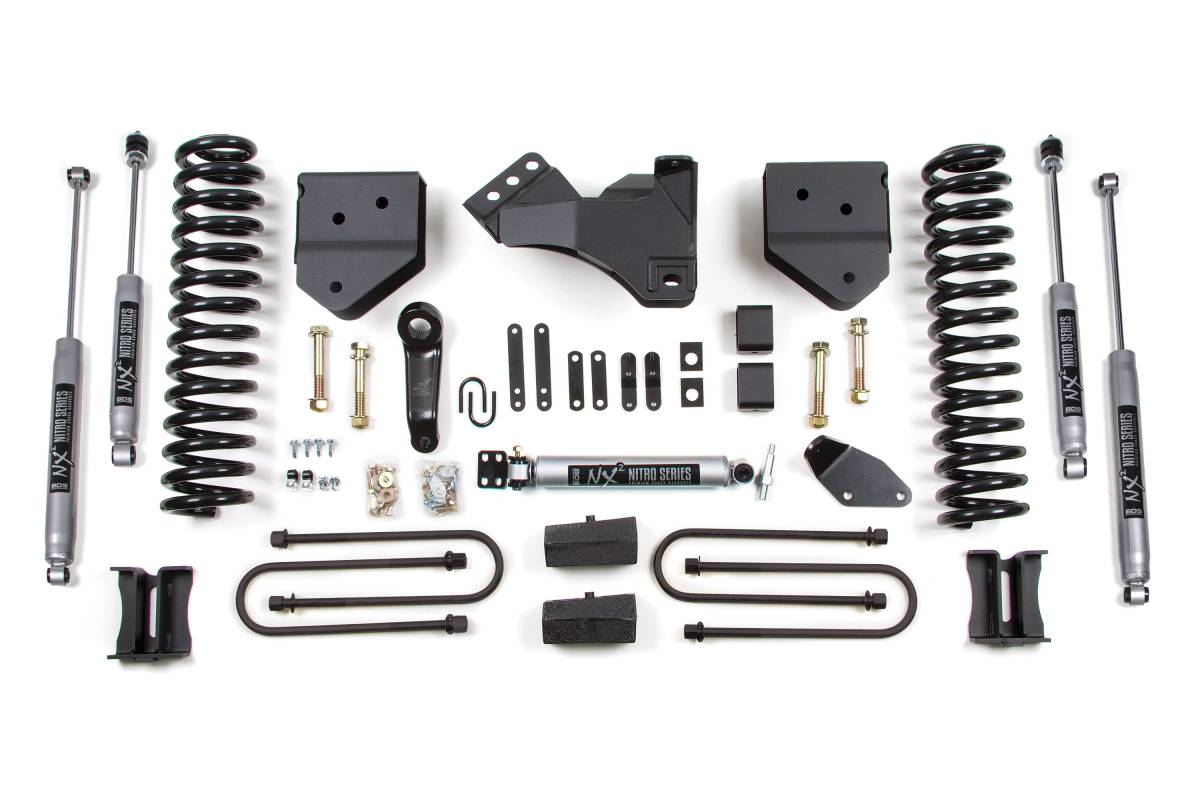

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2005–2007 Ford F250 & F350 Super Duty, 4WD, Gas
• Tire Clearance: Up to 35 inches
• Rear Lift Options: Steel block kit (without factory overload), steel block kit (with factory overload), or replacement leaf springs
• Shock Options: NX2 Nitro Series or FOX 2.0 Performance Series
• Lift block material: High-strength steel with built-in bump stop (block kit variants)
• 5-inch block included to replace factory block

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Grinder/Sanding Disc, Drill/Bit Set, Pitman Arm Puller

Important Notes

These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which configuration your vehicle has before ordering. If your vehicle is equipped with a carrier bearing, you will need to order part #123402 from the accessories section. A 5-inch block is included to replace the factory block.
