BDS 4 Inch Lift Kit | Ford F250 TTB (1987-1996) 4WD | w/ FOX 2.0 Performance Series Shocks

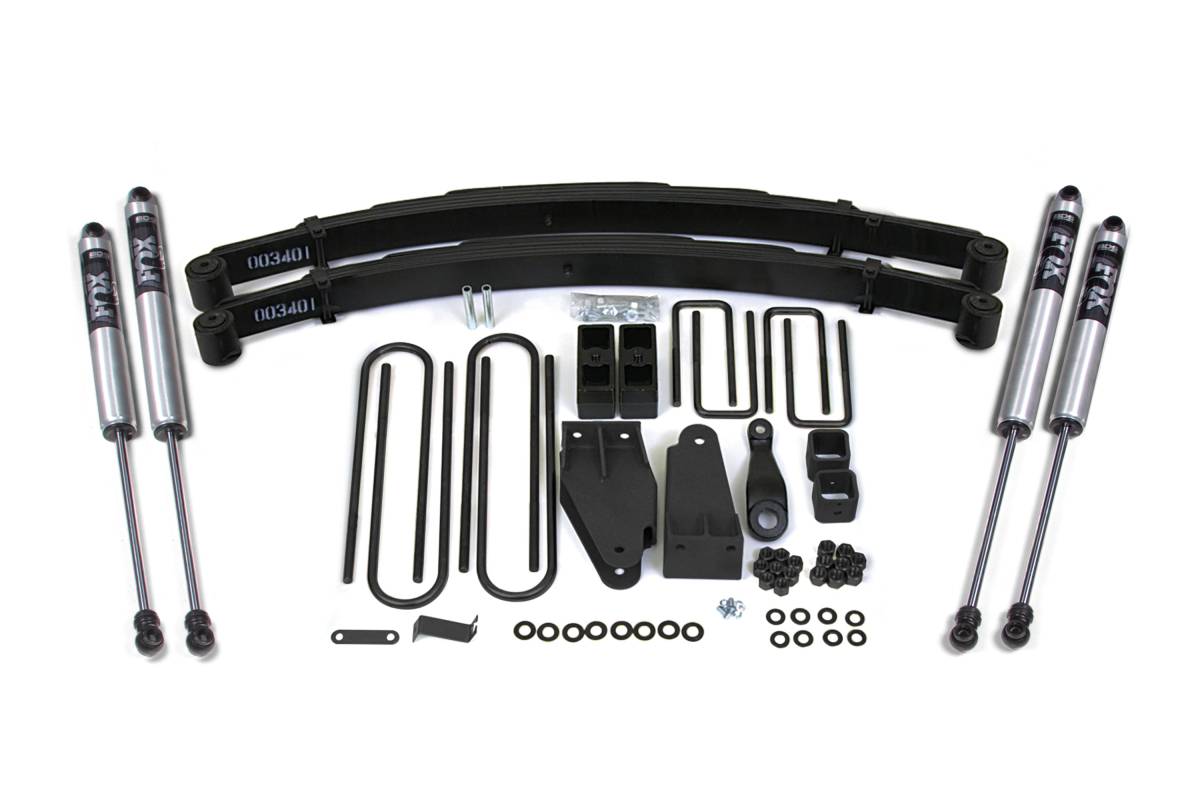

Configured with FOX 2.0 Performance Series shocks front and rear, this kit delivers maximum on- and off-road performance through a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

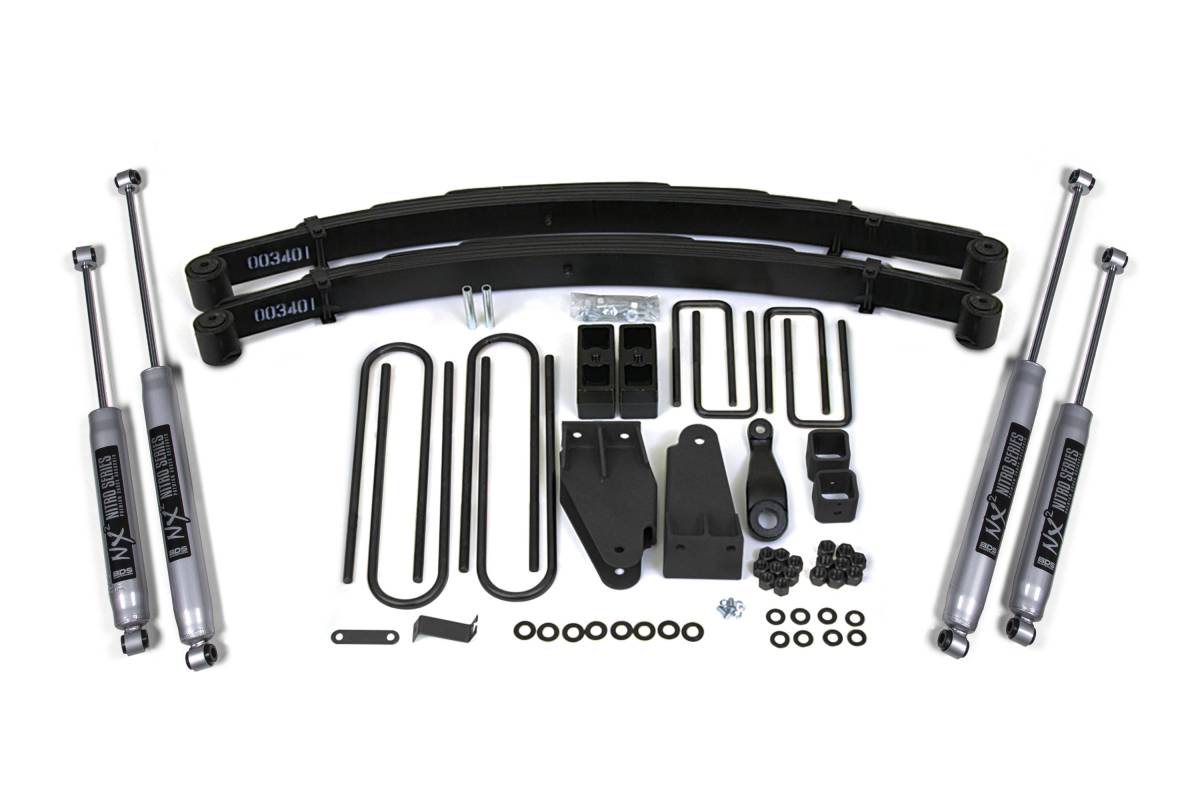

This 4-inch lift kit from BDS Suspension is designed for 1987–1996 Ford F250 TTB 4WD trucks and is built to improve stance, performance, and capability. The kit includes everything necessary for installation and provides clearance for up to 35-inch tires. Up front, the kit features Glide-Ride leaf springs, axle pivot drop brackets, a forged drop pitman arm for steering correction, bump stop brackets, and precision-tuned shocks. In the rear, the kit utilizes a high-strength lift block, longer U-bolts, and a matched set of shocks. Shock options are available in NX2 Nitro Series or FOX 2.0 Performance Series.

Glide-Ride Leaf Springs

BDS engineered the Glide-Ride leaf springs with a multi-leaf progressive spring-rate design that provides a smooth ride under any load. This is achieved through an exclusive triple-stage leaf spring design that delivers flexibility throughout the suspension cycle while increasing load capacity.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased capacity
• Forged drop pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Clearance for up to 35-inch tires

Specifications

• Lift Height: 4 inches
• Axle pivot drop brackets included
• Bump stop brackets included
• High-strength rear lift block included
• Longer U-bolts included
• Designed for Twin-Traction Beam (TTB) style front suspension

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

• Not recommended for diesel applications.
• This system is designed for Twin-Traction Beam (TTB) style suspension only. The kit will not work on front solid axle applications.
• In some cases a pair of alignment cam BDS129102 may be required to achieve proper caster and camber alignment specifications.
