Configured with a 4 Inch Block Kit for the rear — cast iron blocks tapered for correct pinion angle, with a steel pin and hole offset to restore axle position. Sized for a 4 inch diameter rear axle.

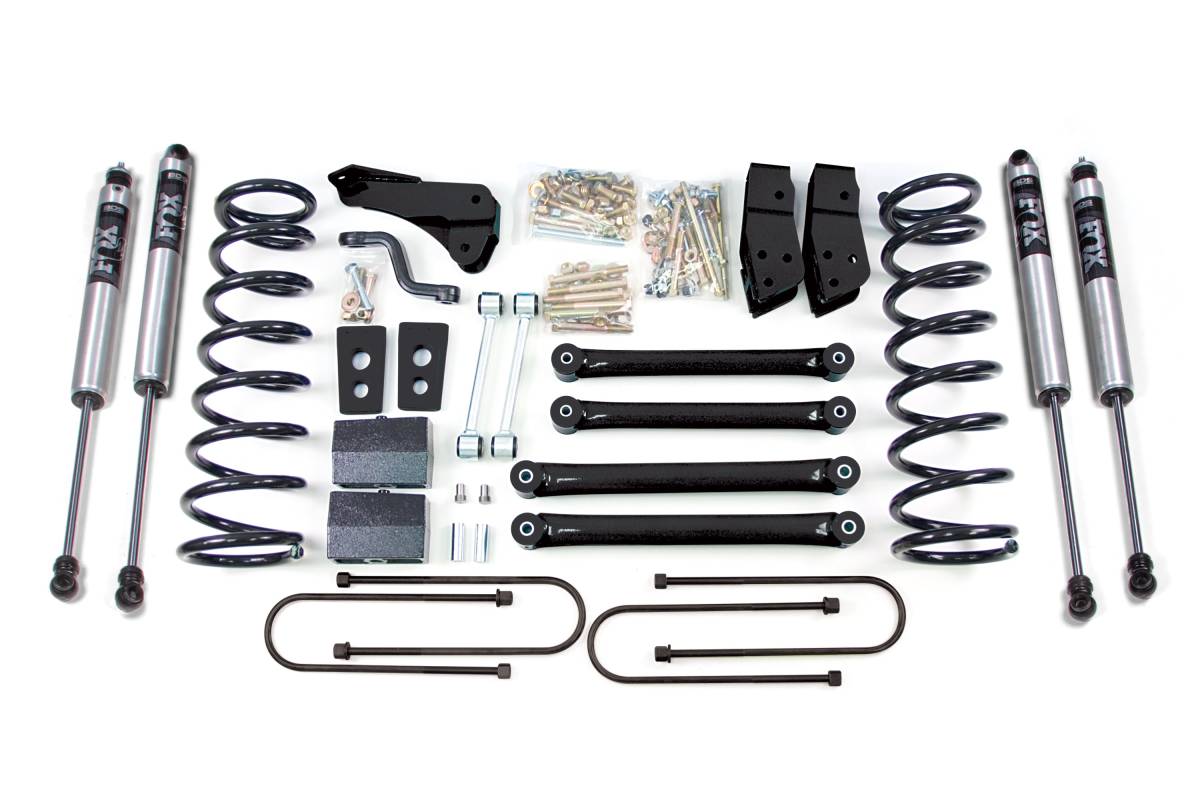

Equipped with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.
Overview

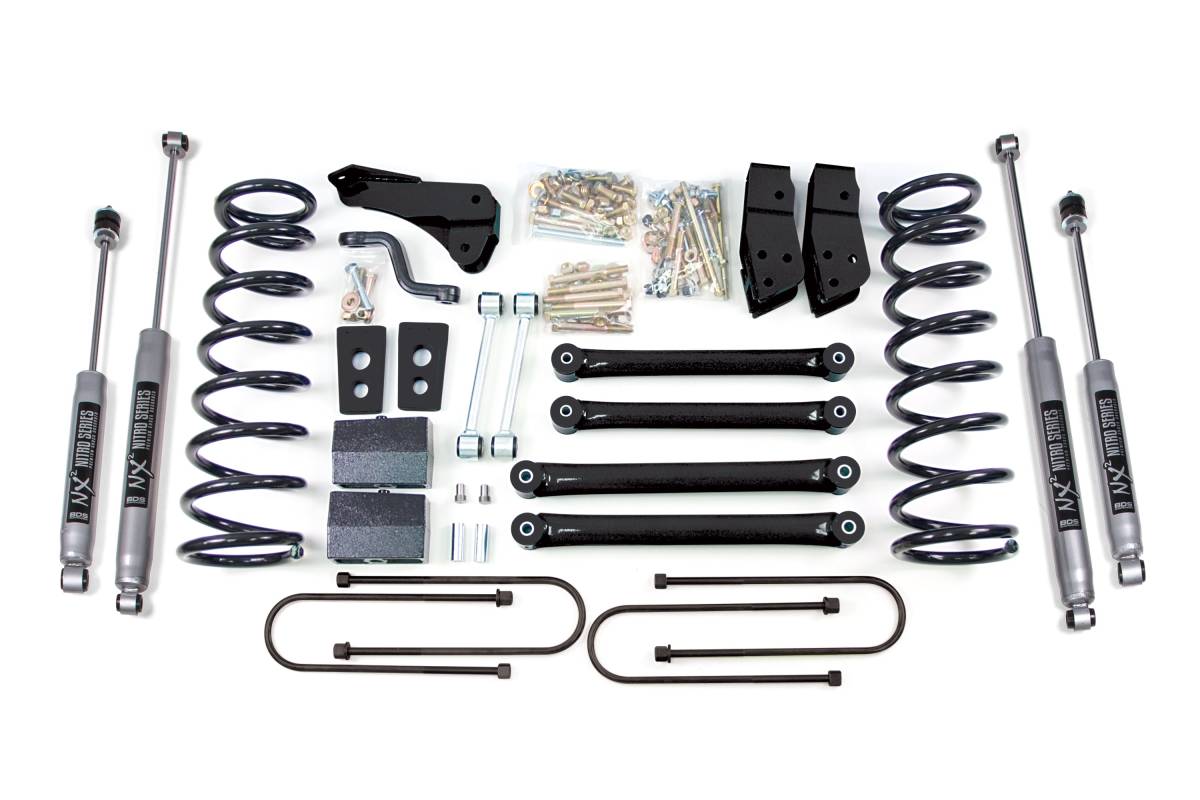

This 4-inch lift kit from BDS Suspension is designed for the 2005–2007 Dodge Ram 2500 Power Wagon 4WD, improving stance, performance, and capability with clearance for up to 36-inch tires. BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment, and a relocation mounting bracket is included to flatten the upper control arm angle and maintain factory handling characteristics. Up front, the kit includes gas-specific Pro-Ride coil springs, all four control arms plus relocation bracket, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, sway bar links, and precision-tuned shocks. The rear configuration varies by selected option — see variant details for rear lift and axle specifics.
Features
- Tubular short arms improve strength, handling, and caster control
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high-strength progressive rate Pro-Ride coil springs manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind
- Front track bar relocation bracket to re-position the front axle
- Forged drop pitman arm to correct steering angles once lifted
- Heavy duty track bar drop bracket to keep steering components in phase through suspension travel
- Front sway bar correction links to maintain handling performance
- Heavy duty cast steel rear blocks (block kit option) or BDS multi-leaf progressive rate leaf springs (leaf spring option)
- Longer u-bolts included with rear lift components
- Choice of NX2 Nitro Series or FOX 2.0 Performance Series shocks
Specifications
- Lift Height: 4 inches (front); rear lift height varies by selected option (4 inches with block kit; 5 inches with leaf springs)
- Tire Clearance: Up to 36 inches
- Pro-Ride coil springs: Full-length, gas-specific, progressive rate, high tensile steel
- Rear blocks (block kit option): Cast iron, tapered for correct pinion angle, steel pin and hole offset to restore axle position
- Leaf springs (leaf spring option): Multi-leaf progressive design; maintains factory payload weight ratings; eliminates need for lift block
- Rear axle fitment: Available for 3-1/2 inch or 4 inch diameter rear axles — measure before ordering
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
- Tools Required: Cut Off Wheel or equivalent, Grinder/Sanding Disc, Pitman Arm Puller, Welding Equipment
Important Notes
- These vehicles were manufactured with two different diameter rear axles. Measure the diameter of your rear axle before ordering — it should be 3-1/2 inches or 4 inches in diameter.
- May require exhaust modification to clear the front driveshaft at full droop.
- If your truck has had the steering gear box changed and the sector shaft diameter measures approximately 1-1/2 inches to 1-5/8 inches, you will need to add part #BDS082404 to your kit.
