BDS 5 Inch Lift Kit | 1994-1999 Dodge Ram 1500 4WD | Block Kit & Add-A-Leaf | NX2 Nitro Series Shocks

This kit is configured with NX2 Nitro Series shocks front and rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

This 5-inch lift kit from BDS Suspension is designed for 1994–1999 Dodge Ram 1500 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. BDS engineered new lower control arms that are longer than stock to rotate the axle for proper alignment, along with a relocation mounting bracket to flatten the angle of the upper control arm and maintain factory handling characteristics.

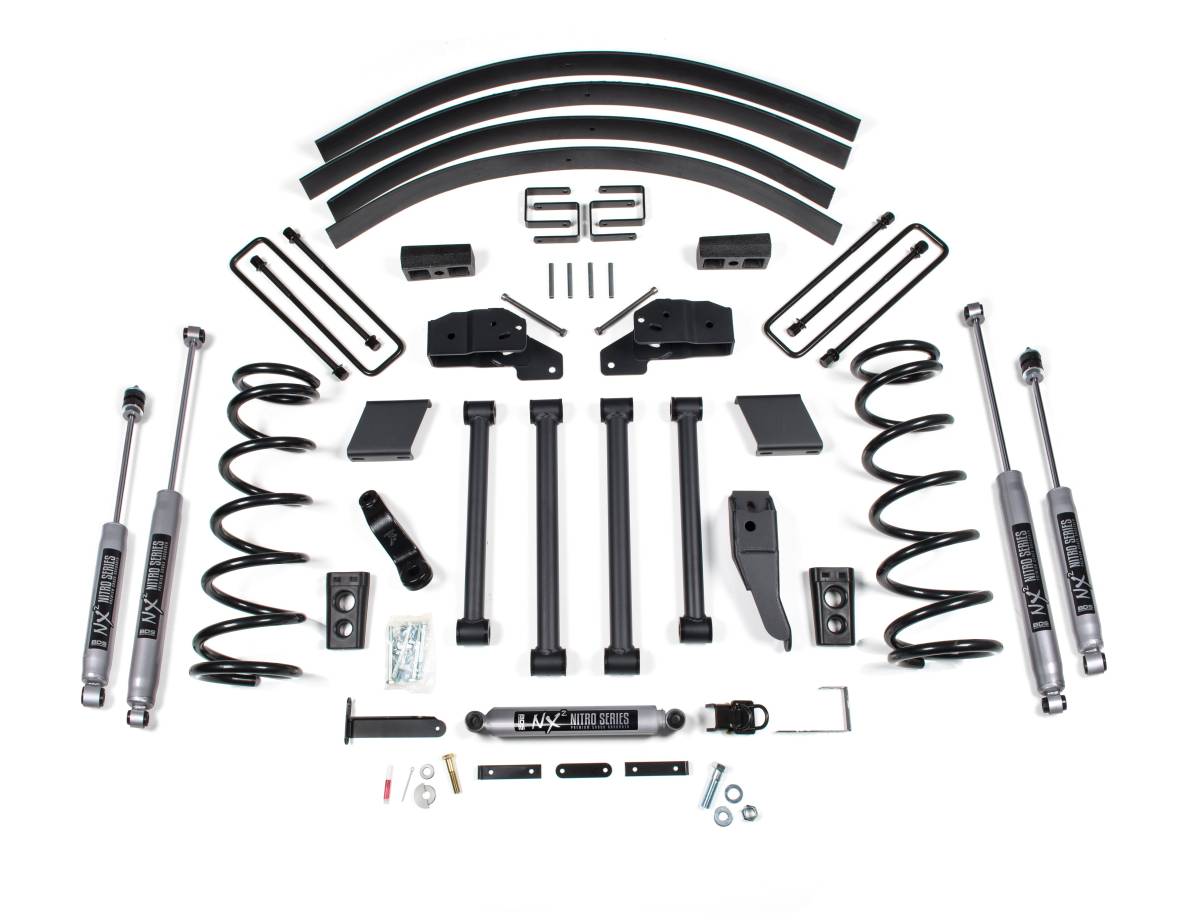

Up front, the kit includes Pro-Ride coil springs, all four control arms plus a relocation bracket, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, and sway bar drop brackets. In the rear, the kit uses a heavy duty cast steel block and add-a-leaf combination with longer U-bolts. Shocks are included front and rear in your choice of NX2 Nitro or FOX 2.0 Performance Series.

Pro-Ride Coil Springs: Full-length, progressive rate Pro-Ride coil springs are manufactured from high tensile steel with properly sized wire diameter for maximum reliability without premature coil bind, providing correct lift height and a smooth, predictable ride across various terrains.

Steering Correction: A forged drop pitman arm minimizes the steering angle, paired with a heavy duty track bar drop bracket to keep steering components in phase through suspension travel while recentering the front axle.

Features

• Tubular short arms improve strength, handling, and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high-strength progressive rate coil springs for improved ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 Nitro or FOX 2.0 Performance Series IFP gas shocks for improved ride and off-road performance
• Rear block kit: steel blocks for high strength, designed to provide correct pinion angles, reduces axle wrap for a more controlled and stable feel
• Rear add-a-leaf: multi-leaf progressive design for a smooth ride, maintains factory payload weight ratings

Specifications

• Lift Height: 5 inches
• Tire Clearance: Up to 35 inches
• Rear Lift Method: Cast steel block and add-a-leaf combination
• Rear U-bolts: Longer replacement U-bolts included
• Coil Spring Material: High tensile steel, progressive rate
• Pitman Arm: Forged drop design
• Compatible Vehicles: 1994–1999 Dodge Ram 1500 4WD

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

• Will not fit vehicles manufactured prior to February 9, 1994 due to track bar stud size.
• The rear axle will be shifted forward in the wheel well.
• Single stabilizer may be replaced with dual stabilizer.
• May require exhaust modification.
• #002459 rear springs come with OE style bushings installed.
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs before installation.
