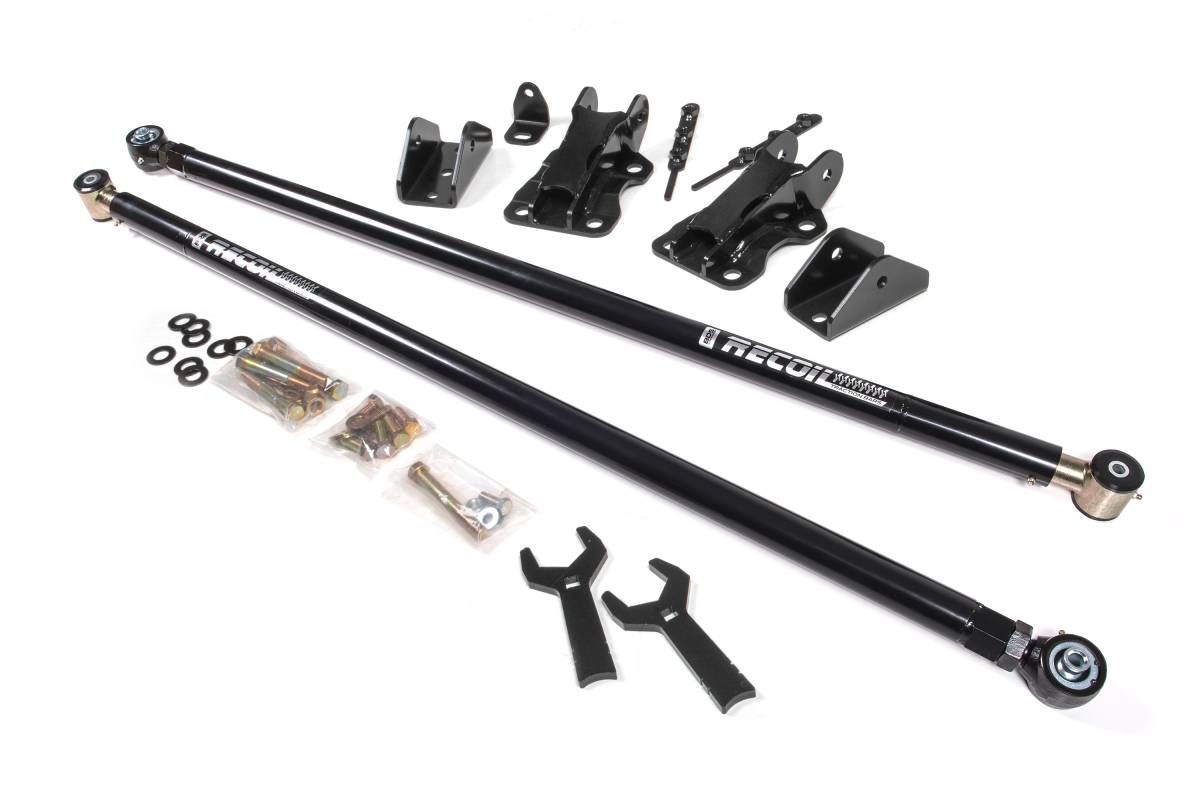

BDS Recoil Traction Bar Kit | 2017-2026 Ford F250/F350/F450 Super Duty 4WD | 4.5 Inch Axle

Overview

The BDS Recoil Traction Bar Kit is designed for 2017–2026 Ford F250, F350, and F450 Super Duty 4WD trucks equipped with a 4.5-inch diameter axle tube. This kit improves traction by controlling axle wrap without limiting wheel travel. The full-float design allows bind-free performance across a range of lift heights (0–6 inches of rear lift). Internal dual-stage compression springs can be loaded or unloaded while the bar remains installed on the vehicle. The bar is fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded toward the axle end and a CNC-machined frame end. The axle mount uses a large-forged flex end with a forged housing, a 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. The frame end uses a durometer-specific polyurethane bushing that free-floats in the traction bar via a pair of dual-stage internal compression springs and UHMW polyurethane bearings.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Bar material: 2-inch OD x 3/16-inch wall steel tubing
• Frame end: CNC-machined with durometer-specific polyurethane bushing and UHMW polyurethane bearings
• Axle mount: Large-forged flex end with 1-1/4-inch x 12 threaded shank, single-sided snap ring, and 1-piece flex ball
• Flex end misalignment capability: Up to 15 degrees in either direction
• Compatible lift range: 0–6 inches of rear lift
• Fits trucks with 4.5-inch axle tube diameter

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderately Easy
• Mounting brackets are bolt-on; minor drilling required for frame mount installation

Important Notes

• Fits 0–6" of rear lift
• Includes (1) 123409 Traction Bar Box Kit & (1) 123426 Mounting Kit
• Does not fit regular cab models
• Must measure axle — this kit fits trucks with 4.5" axle tube diameter
