Configured with FOX 2.5 Performance Elite rear shocks featuring Dual Speed Compression (DSC) adjustment. The 2.5-inch impact-extruded aluminum body, external reservoir, and massive 7/8-inch hard chrome-plated alloy steel shaft deliver increased oil capacity, enhanced heat dissipation, and precise dual-speed compression tuning — matching the front coilovers for a fully balanced, high-performance setup ideal for high-speed terrain, heavy loads, and demanding off-road conditions.
Overview

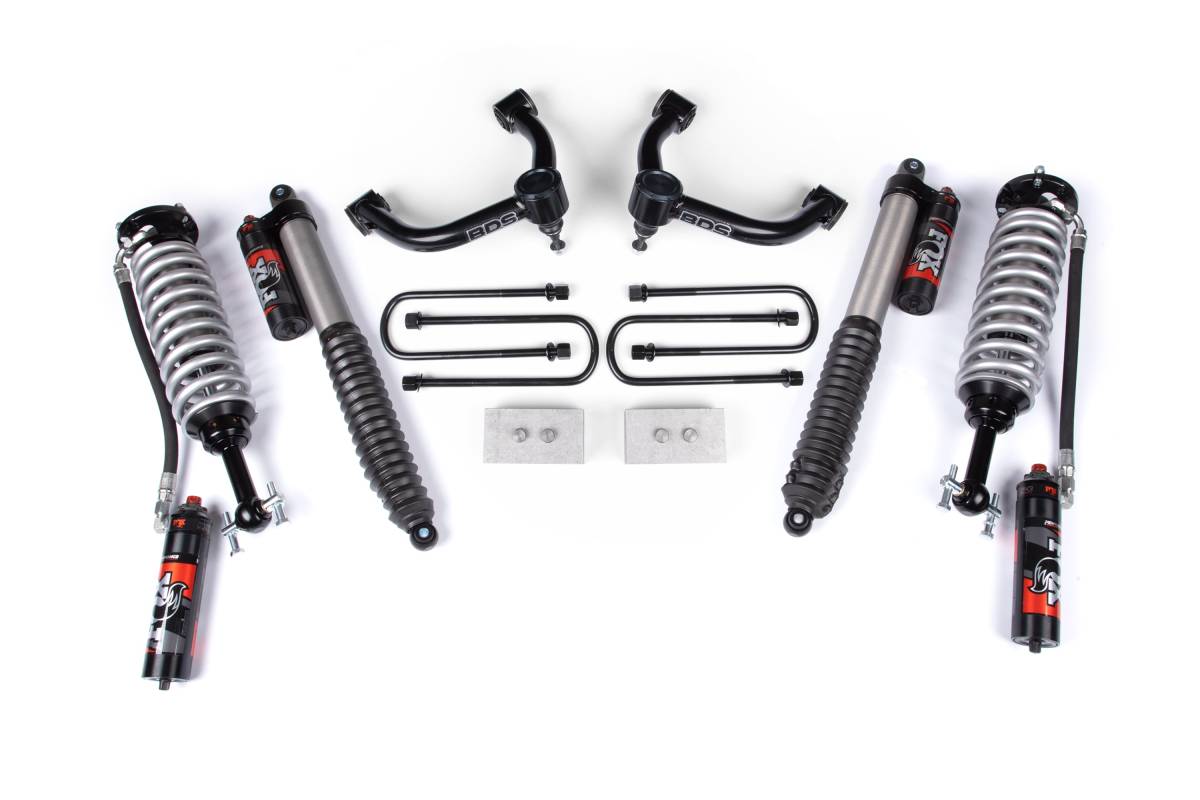

This BDS 3-inch suspension lift kit is engineered for 2021–2026 Ford F-150 4WD non-Raptor models. It combines BDS's proven suspension geometry with FOX race-proven shock technology to deliver increased ground clearance, improved suspension performance, and consistent ride quality on and off the road. Up front, FOX 2.5 Performance Elite coilover shocks with Dual Speed Compression (DSC) adjustment allow fine-tuning for any terrain or driving style. In the rear, two shock options are available to match your performance needs. BDS tubular upper control arms are included to correct suspension geometry on the lifted F-150 while improving strength and wheel travel. This kit supports fitment of 33 x 12.50-inch tires when paired with a 9-inch wide wheel featuring 5.5 inches of backspacing.
Features
- 3-inch suspension lift for increased ground clearance
- FOX 2.5 Performance Elite front coilover shocks with Dual Speed Compression (DSC) adjustment
- DSC system provides independent low-speed and high-speed compression adjusters for control over body roll, brake dive, cornering stability, and small-bump compliance
- Large-diameter, hard-anodized aluminum front shock body for superior heat dissipation and fade-free performance
- Choice of FOX 2.5 Performance Elite or FOX 2.0 Performance Series IFP rear shocks
- BDS heavy-duty tubular upper control arms engineered to correct suspension geometry on lifted F-150s
- Tubular steel construction optimizes ball joint angles to restore proper alignment, steering feel, and tire wear
- Increased articulation for smooth suspension cycling through full range of motion
- Dual-sided sensor mounts compatible with all F-150 variants
- Supports up to 33 x 12.50-inch tires with a 9-inch wide wheel at 5.5 inches of backspacing
Specifications
- Lift Height: 3 inches
- Front Shocks: FOX 2.5 Performance Elite coilovers with DSC — 2.5-inch impact-extruded aluminum body, 7/8-inch hard chrome-plated heat-treated alloy steel shaft, external reservoir, fully serviceable
- Rear Shock Option A: FOX 2.5 Performance Elite — 2.5-inch aluminum body, 7/8-inch shaft, external reservoir, DSC adjuster, fully serviceable, 1-year manufacturer's warranty
- Rear Shock Option B: FOX 2.0 Performance Series IFP — 2-inch impact-extruded aluminum body, internal floating piston (IFP) monotube design, CNC-machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome-plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish, 1-year manufacturer's warranty
- Upper Control Arms: Heavy-duty tubular steel construction with dual-sided sensor mounts
- Compatible Tire Size: 33 x 12.50 inches (with 9-inch wide wheel, 5.5-inch backspacing)
- Application: 2021–2026 Ford F-150 4WD (non-Raptor)
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
Advertised lift height based on F-150 Base model. Some trim levels will result with less lift height.
