Rear shocks configured with FOX 2.5 Performance Elite shocks featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir that separates shock oil from high-pressure nitrogen, and a standard Dual Speed Compression (DSC) adjuster. Fully serviceable with a 1-year Manufacturer's Warranty.
Overview

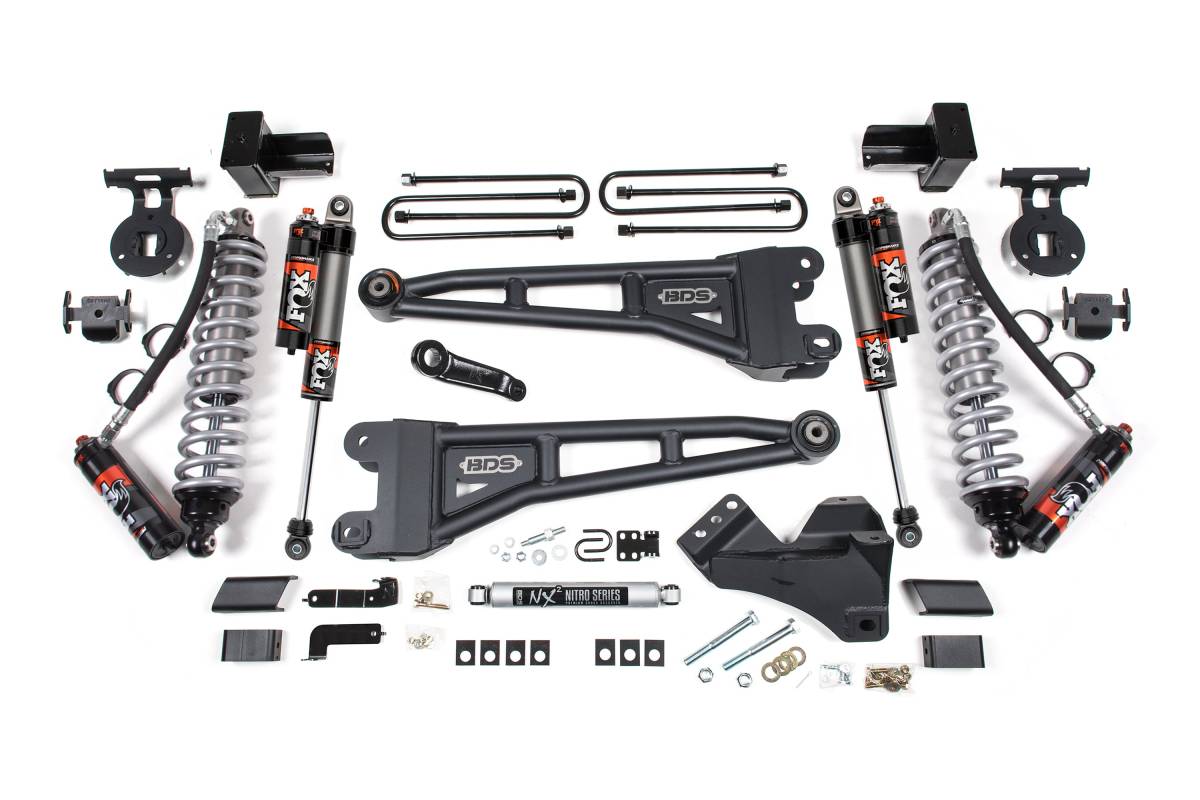

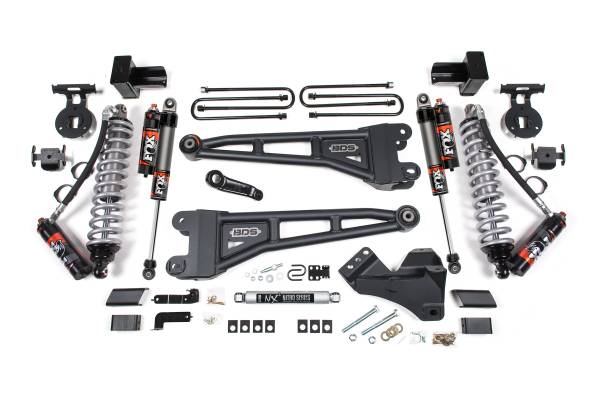

This 5-inch Radius Arm lift kit from BDS is designed for dual rear wheel (DRW) Ford F350 Super Duty diesel trucks (2023–2026) 4WD. The kit improves stance, performance, and off-road capability while providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy duty BDS Radius Arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. An indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. The rear utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets, and a matching set of FOX 2.5 Performance Elite shocks.
Features
- Easy, 100% bolt-on installation
- FOX 2.5 Performance Elite Coilover conversion up front with choice of FOX 2.5 Performance Elite or FOX 2.5 Performance Series HTO rear shocks
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide a level stance from front to rear
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 5 inches
- Tire Clearance: Up to 37 inches
- Includes diesel-specific Pro-Ride coil springs
- Includes heavy duty BDS Radius Arms
- Includes forged drop pitman arm and track bar bracket
- Includes sway bar relocation hardware and brake line brackets
- Includes transfer case indexing ring and new transmission crossmember
- Rear: High-strength fabricated lift block, longer u-bolts, and brake line brackets
- FOX 2.5-inch impact extruded aluminum body shocks (front and rear)
Installation
- Estimated Time: 6–8 hours
- Difficulty: Difficult
- Special Tools Required: Cut-off Tool, Pitman Arm Puller, Torque Wrench capable of 406 ft-lbs
Important Notes
- Fits dual rear wheel (DRW) F-350 trucks only.
- Ford recommends replacement of the pitman arm nut each time it has been removed.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If the truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Larger tires on stock wheels are not recommended due to interference with the brake line, radius arm, and sway bar. Use recommended specs listed in the wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
- Vehicles with radius arm mounted ride height sensors will require BDS123303.
