BDS 5 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (2023-2026) 4WD Diesel | FOX 2.5 Performance Elite Shocks

Configured with FOX 2.5 Performance Elite shocks front and rear. These shocks feature a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir design that separates shock oil from high-pressure nitrogen, and a DSC (Dual Speed Compression Adjuster) standard. Fully serviceable with a 1-year Manufacturer's Warranty.

Overview

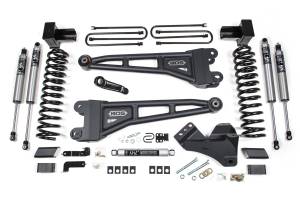

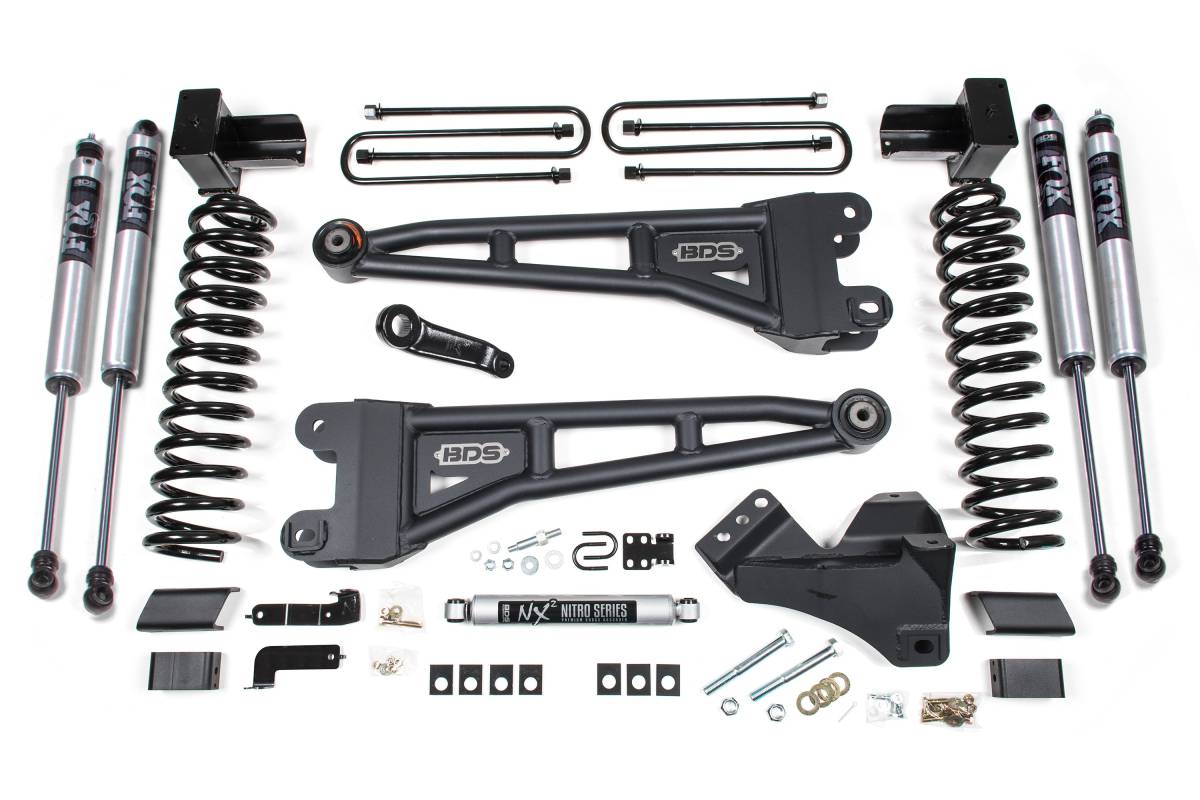

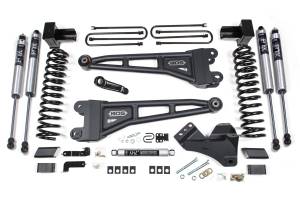

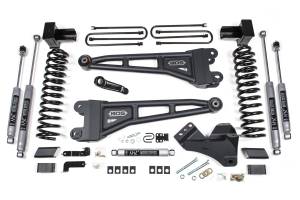

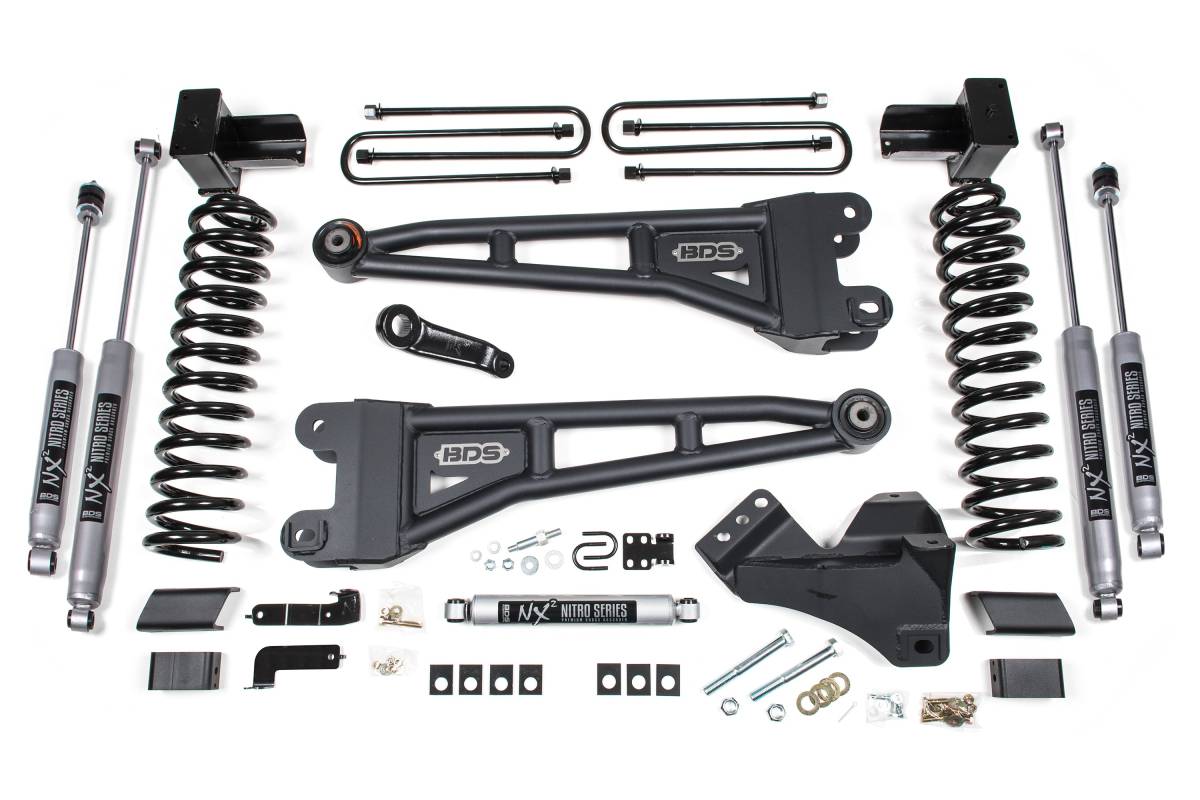

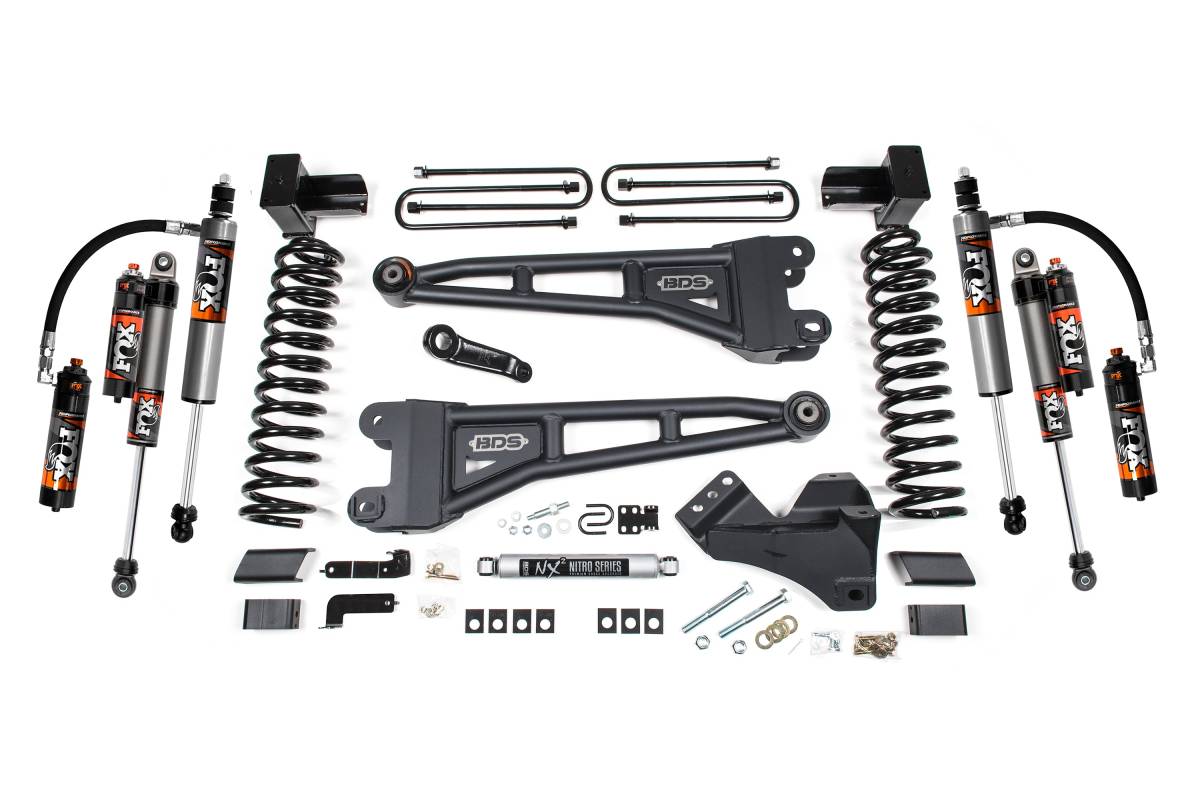

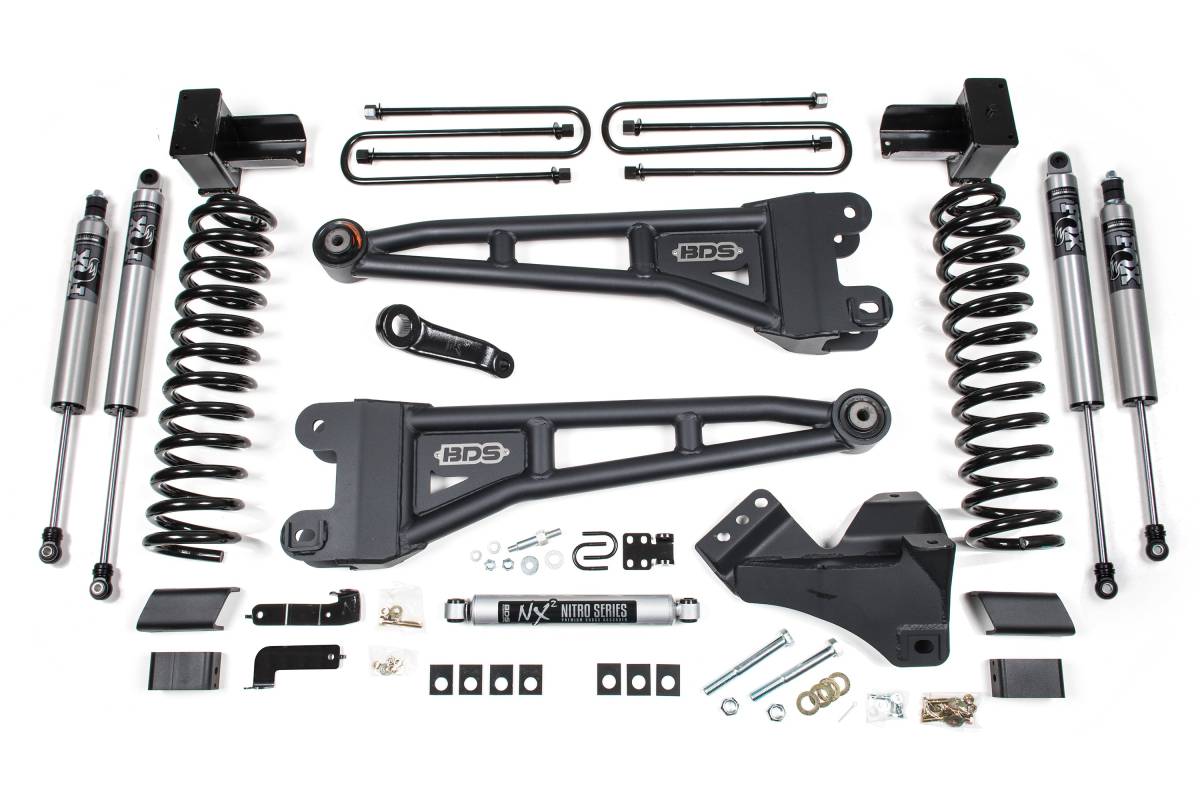

This 5-inch radius arm lift kit from BDS Suspension is designed for the Ford F350 Super Duty Dual Rear Wheel (DRW) diesel truck (2023–2026, 4WD). The kit improves stance, ride performance, and off-road capability, providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, brake line brackets, and a matching set of shocks.

Features

• 100% bolt-on installation
• Pro-Ride dual rate coil springs engineered for diesel applications
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 5 inches
• Fits: 2023–2026 Ford F350 Super Duty DRW 4WD Diesel
• Tire Clearance: Up to 37 inches
• Front: Pro-Ride diesel-specific coil springs, heavy-duty tubular steel radius arms, forged drop pitman arm, track bar bracket, sway bar relocation, brake line brackets
• Rear: Fabricated high-strength steel lift blocks, longer U-bolts, brake line brackets

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off Tool, Pitman Arm Puller, Torque wrench capable of 406 ft-lbs

Important Notes

• Fits dual rear wheel (DRW) F-350 trucks only.
• Ford recommends replacing the pitman arm nut each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If the truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Larger tires on stock wheels are not recommended due to potential interference with the brake line, radius arm, and sway bar. Use recommended specs listed in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Vehicles with radius arm mounted ride height sensors will require BDS123303.
