BDS 7 Inch Lift Kit w/ Radius Arms | Ford F350 Super Duty DRW 4WD Diesel (2023-2026) | FOX 2.5 Performance Elite Shocks

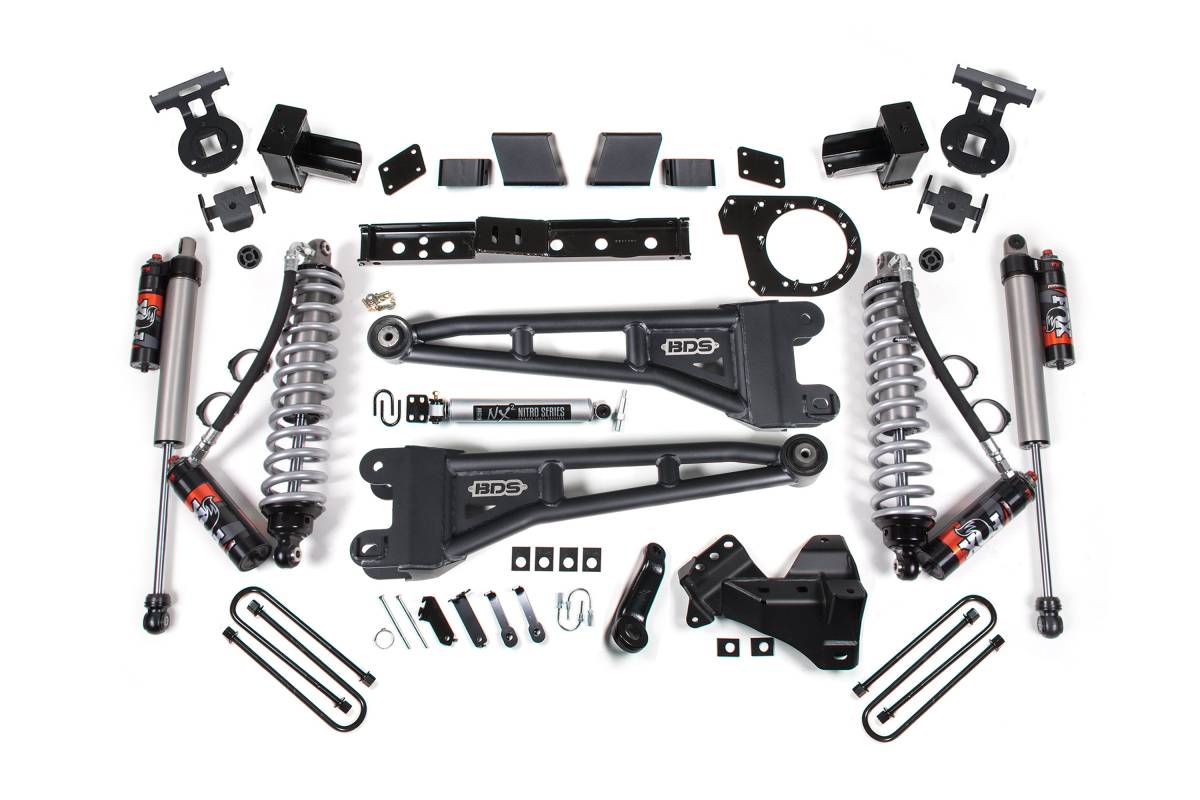

Configured with FOX 2.5 Performance Elite shocks featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir that separates shock oil from high-pressure nitrogen, and a standard DSC (Dual Speed Compression Adjuster). Fully serviceable and covered by a 1-year manufacturer's warranty.

Overview

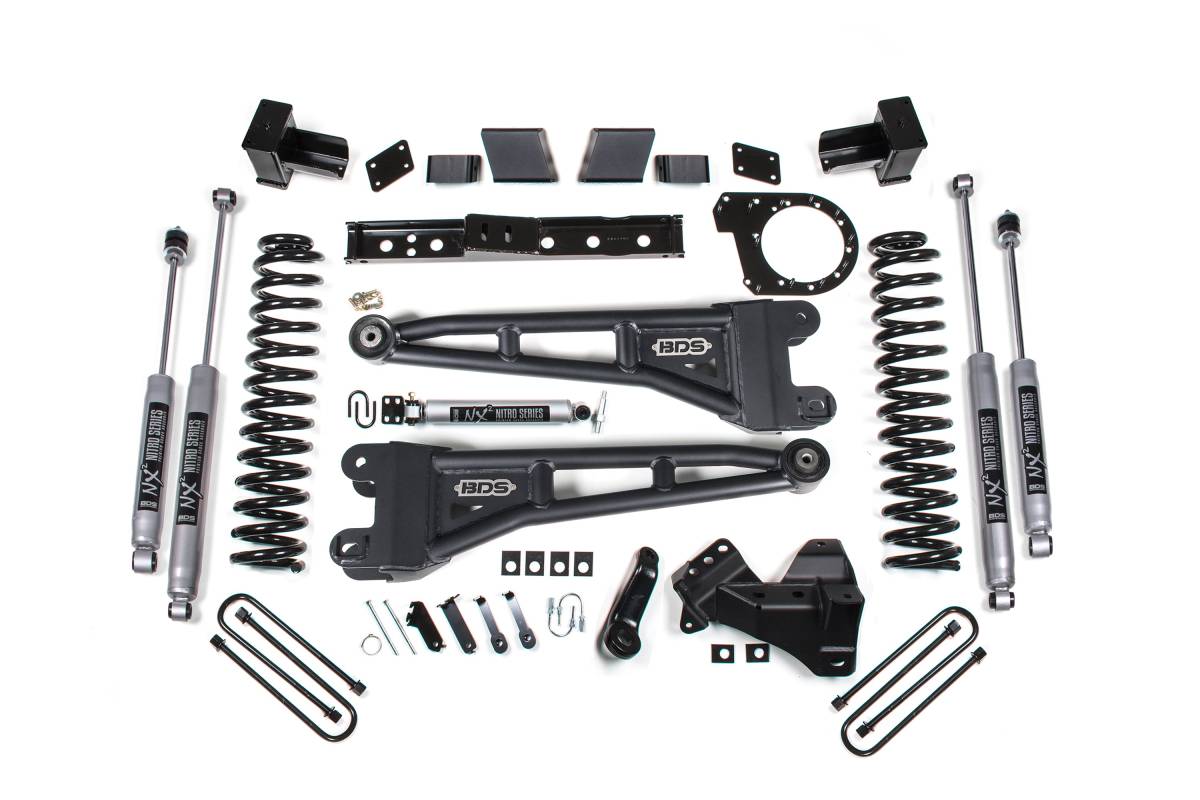

This 7-inch radius arm lift kit from BDS Suspension is designed for 2023–2026 Ford F350 Super Duty DRW 4WD diesel trucks, providing improved stance, performance, and capability with clearance for up to 38-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen charged shocks. At this lift height, a transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft. In the rear, the kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets, and a matching set of shocks.

Features

• 100% bolt-on installation
• Pro-Ride dual-rate coil springs for improved ride quality across all terrain
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and forged drop pitman arm to maintain proper steering angles for improved handling
• Fabricated steel lift blocks provide a level stance front to rear
• Brake line brackets included front and rear
• Transfer case indexing ring and new transmission crossmember included
• Sway bar relocation hardware included
• Multiple shock options available: NX2 Nitro Series, FOX 2.0 Performance Series, FOX 2.5 Performance Series HTO, and FOX 2.5 Performance Elite with DSC
• Supports up to 38-inch tires

Specifications

• Lift Height: 7 inches
• Vehicle Fitment: 2023–2026 Ford F350 Super Duty DRW 4WD Diesel
• Front Lift: Pro-Ride dual-rate diesel-specific coil springs
• Rear Lift: High-strength fabricated steel lift blocks with longer u-bolts
• Radius Arms: Heavy-duty tubular steel, corrects caster
• Pitman Arm: Forged drop style
• Includes transfer case indexing ring (compatible with 10-speed transmission only)
• Includes new transmission crossmember

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Required Tools: 30mm Socket, 40mm Socket, Basic Hand Tools, Cut-off Tool, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller, Torque Wrench capable of 405 ft-lbs

Important Notes

• Ford recommends replacement of the pitman arm nut each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a factory rear sway bar, add: BDS123808.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not achieve the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on stock wheels are not recommended due to brake line clearance requirements. Use recommended specs listed in the wheel and tire fitment section.
• The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• The indexing ring has not been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). BDS recommends having this performed prior to installing the lift.
• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Vehicles with leaf spring ride height sensors must select the rear block option.
• Fits DRW models only.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, LiDAR, and other sensors may be necessary by your local dealership or ADAS service center. This ensures proper functionality of lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control, and other systems. All charges and expenses related to dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
