BDS 3 Inch Lift Kit w/ Radius Arms | Ford F250/F350 Super Duty (2023-2026) 4WD | FOX 2.5 Performance Elite Shocks

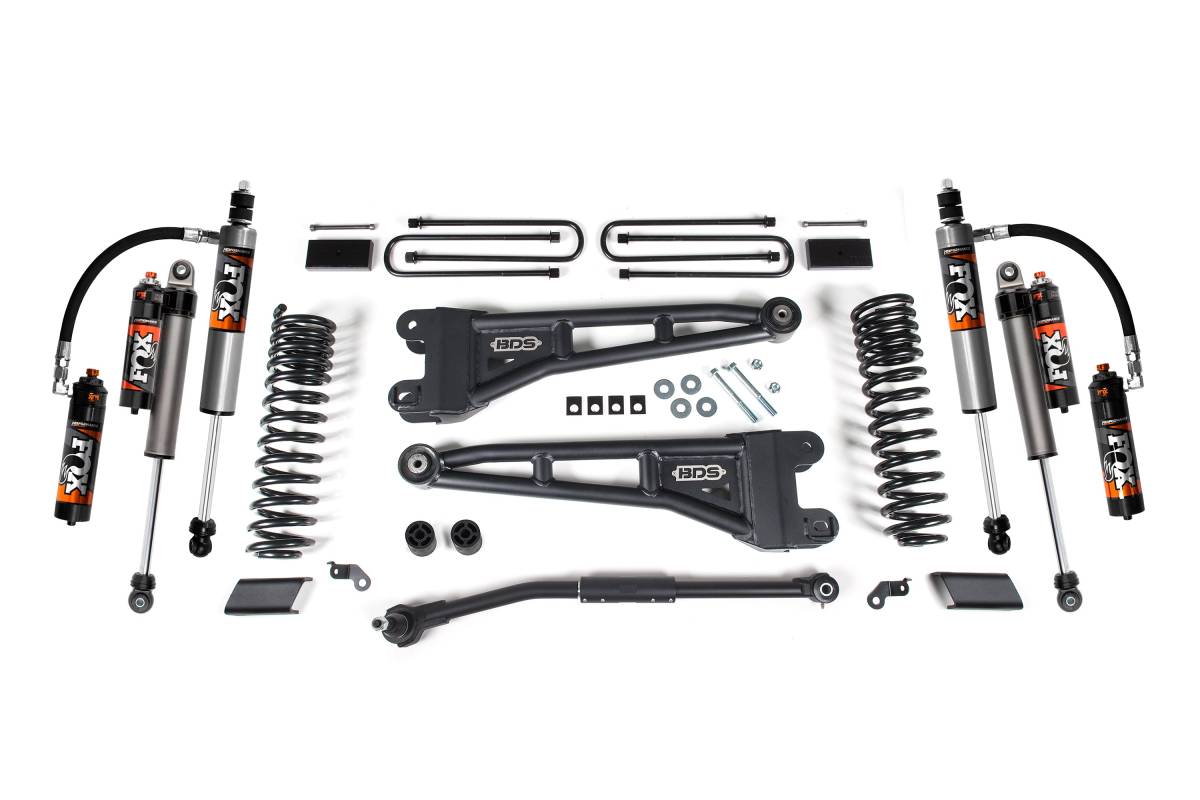

Configured with FOX 2.5 Performance Elite shocks front and rear. Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 3-inch radius arm lift kit from BDS Suspension is designed for 2023–2026 Ford F-250/F-350 Super Duty 4WD diesel-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar relocation hardware, and brake line brackets. In the rear, a high-strength fabricated lift block and longer U-bolts are included alongside a matched set of shocks selected at the time of purchase.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual-rate coil springs for smooth ride across varied terrain
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide a level stance from front to rear

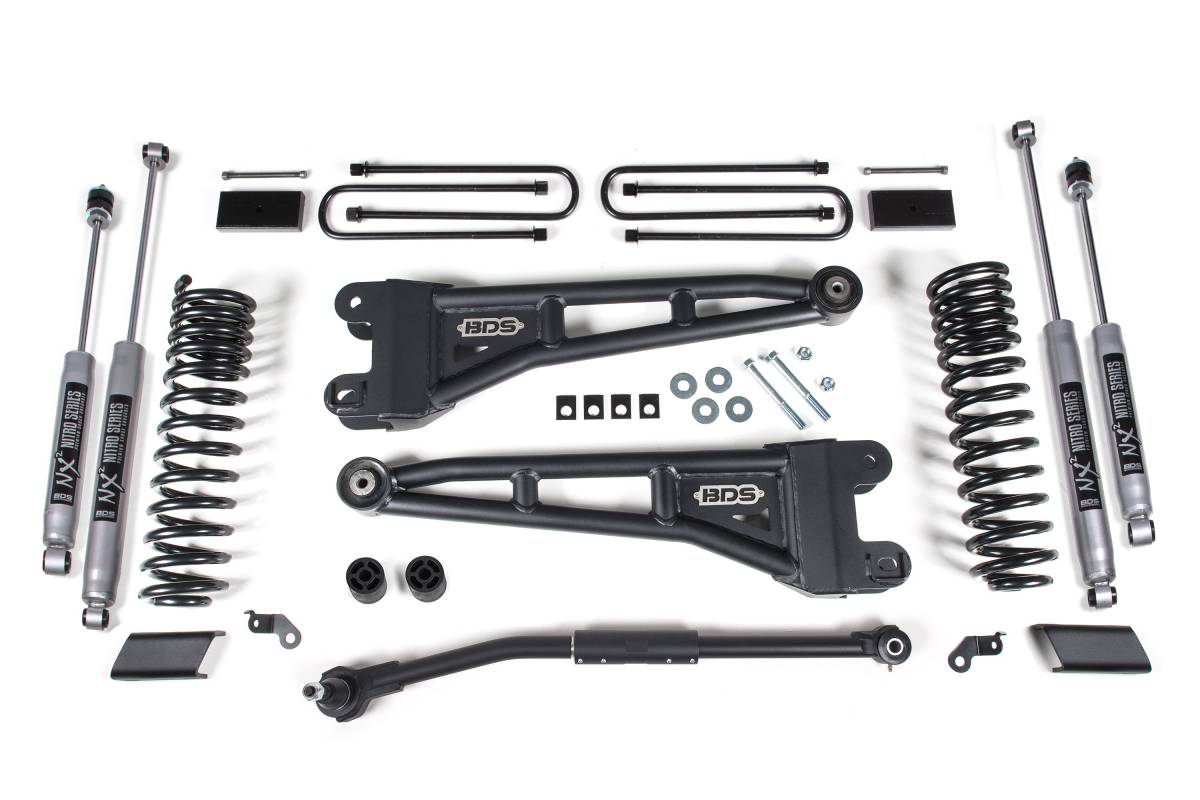

• Available with NX2 Nitro Series shocks with vehicle-specific valving, FOX 2.0 Performance Series shocks, or FOX 2.5 Performance Elite shocks
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 3 inches
• Track bar material: 1-3/8-inch solid steel, pre-assembled with bushings
• Radius arms: High-strength tubular steel, mount into factory location with OE-style rubber bushings at frame mount
• Rear lift: Fabricated steel lift block with extended U-bolts
• Designed for: Diesel-powered models (also compatible with gas trucks — see Important Notes)
• Fits: Single Rear Wheel (SRW) models only

Installation

• Estimated Time: 5 hours
• Difficulty: Moderate
• Specialty Tools Required: 30mm socket, Pitman arm puller, torque wrench capable of 406 ft-lbs

Important Notes

Vehicles with radius arm mounted ride height sensors will require BDS123303. Designed for use on diesel models, but can be installed on gas trucks — will achieve an additional 1/2 inch front ride height on gas models. Installation requires a torque wrench capable of 406 ft-lbs. Due to taller factory ride height, Tremor models will not net the full advertised lift height; final ride height will be the same as standard models. Larger tires on a stock wheel are not recommended due to interference with the brake line, radius arm, and sway bar — use the recommended specs listed in the wheel and tire fitment section. Trucks without a top-mounted overload spring will require (x4) UBT4031, available to purchase separately. Fits SRW models only. Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
