BDS 4 Inch Lift Kit | Ram 1500 w/ Air Ride (2025-2026) 4WD | FOX 2.0 Performance Series | Large Bore Knuckle

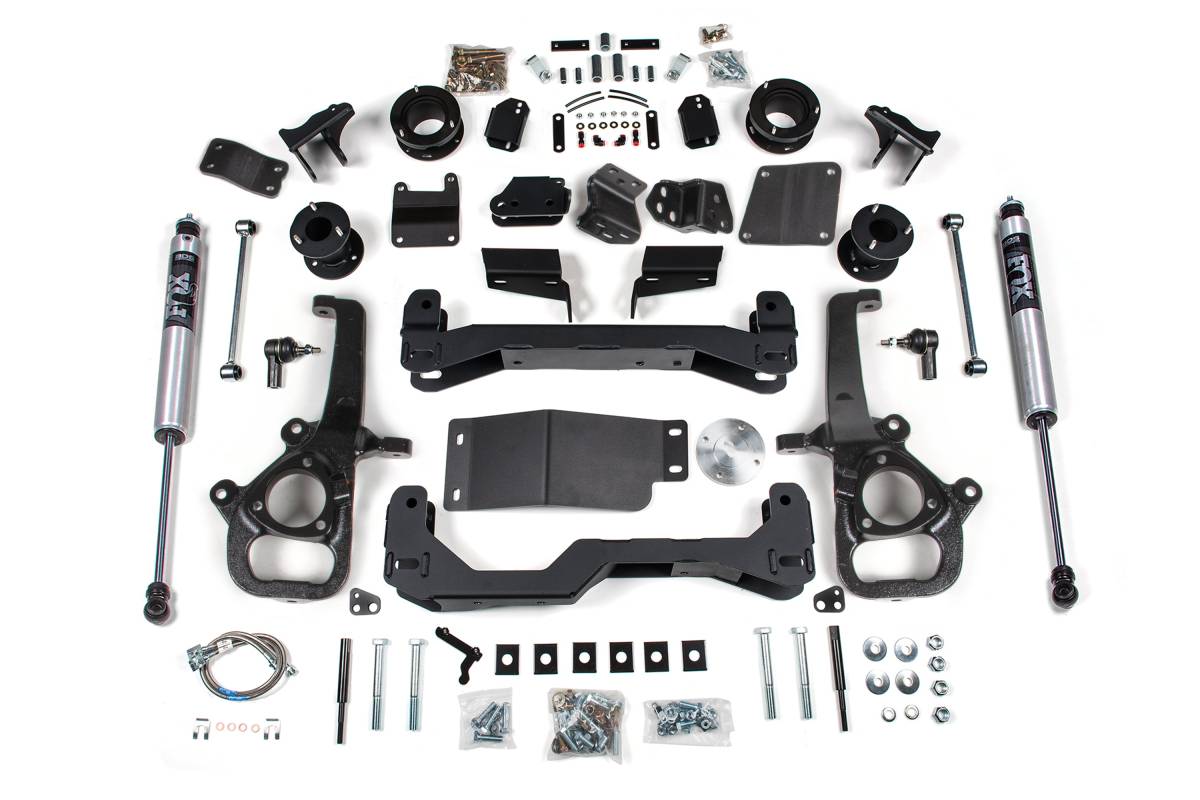

Configured with FOX 2.0 Performance Series IFP rear shocks and Large Bore steering knuckles. Required for RAM 1500 trucks equipped with factory 22-inch wheels (reference build code WPM or WPZ), which use a larger wheel bearing assembly. FOX 2.0 shocks feature a 2-inch impact-extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome-plated heat-treated alloy steel shaft, CNC-machined 6061-T6 aluminum mounting ends, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Overview

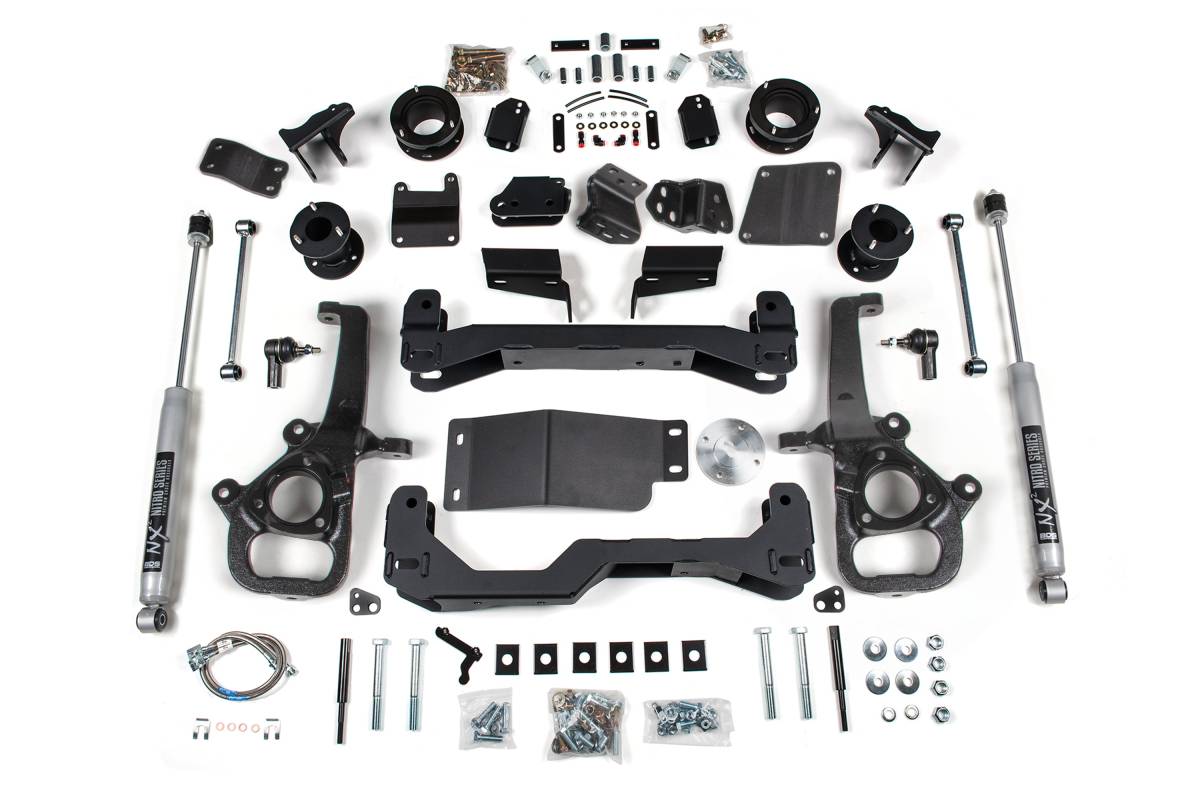

The BDS 4-inch Lift Kit for the 2025–2026 RAM 1500 with factory air ride suspension delivers enhanced ground clearance and an aggressive stance while maintaining full factory air ride functionality. Engineered specifically for air ride-equipped models, this kit provides 4 inches of front lift and allows fitment of up to 35-inch tires. The system includes high-strength crossmembers, heavy-duty steering knuckles, differential relocation brackets, sway bar links, and all necessary hardware for a reliable, precise fit. Rear shock options include FOX 2.0 Performance Series IFP shocks or BDS NX2 Nitro Series shocks. This kit is backed by the BDS No Fine Print Warranty and includes the Factory Protection Plus drivetrain warranty.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of FOX 2.0 Performance Series IFP or BDS NX2 Nitro Series rear shocks
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4 inches (front)
• Tire Clearance: Up to 35-inch tires
• Compatible Vehicles: 2025–2026 RAM 1500 4WD with factory air ride (excludes TRX models)
• Compatible Engines: 3.0L Hurricane I6, 3.6L V6, 5.7L V8
• Includes: High-strength crossmembers, heavy-duty steering knuckles, differential relocation brackets, sway bar links, and all necessary hardware

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult
• Special Tools Required: 35mm Axle Nut Socket

Important Notes

• Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
• Extreme care and caution must be taken to follow the steps of the installation instructions to prevent any air leaks or damage to the air bags during installation.
• The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions will require the system to be recharged (this can be done at any RAM dealer service department). A scan tool is needed to access the air control module to perform the service.
• Frame bracket modification is required.
• Fits 4WD models equipped with factory air ride only.
• Stock 18-inch wheels cannot be reinstalled due to steering interference. Stock 20-inch and larger wheels can be reinstalled with factory-size tires.
• Trucks equipped with factory 22-inch wheels must use the Large Bore steering knuckles (reference build code WPM or WPZ, or check the diff cover for cooling lines).
• Does NOT fit Diesel models.
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines mounted.
• If using 18-inch wheels with maximum recommended backspacing, test fit wheels on the vehicle before mounting tires to ensure clearance.
• Included replacement front brake lines (22545) do not work on 2025 model year trucks; a relocation bracket is used instead. See instructions for bracket details.
