This configuration includes FOX 2.0 Performance Series IFP rear shocks, featuring a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, and application-specific valving for maximized performance. Backed by a 1-year manufacturer's warranty.
Overview

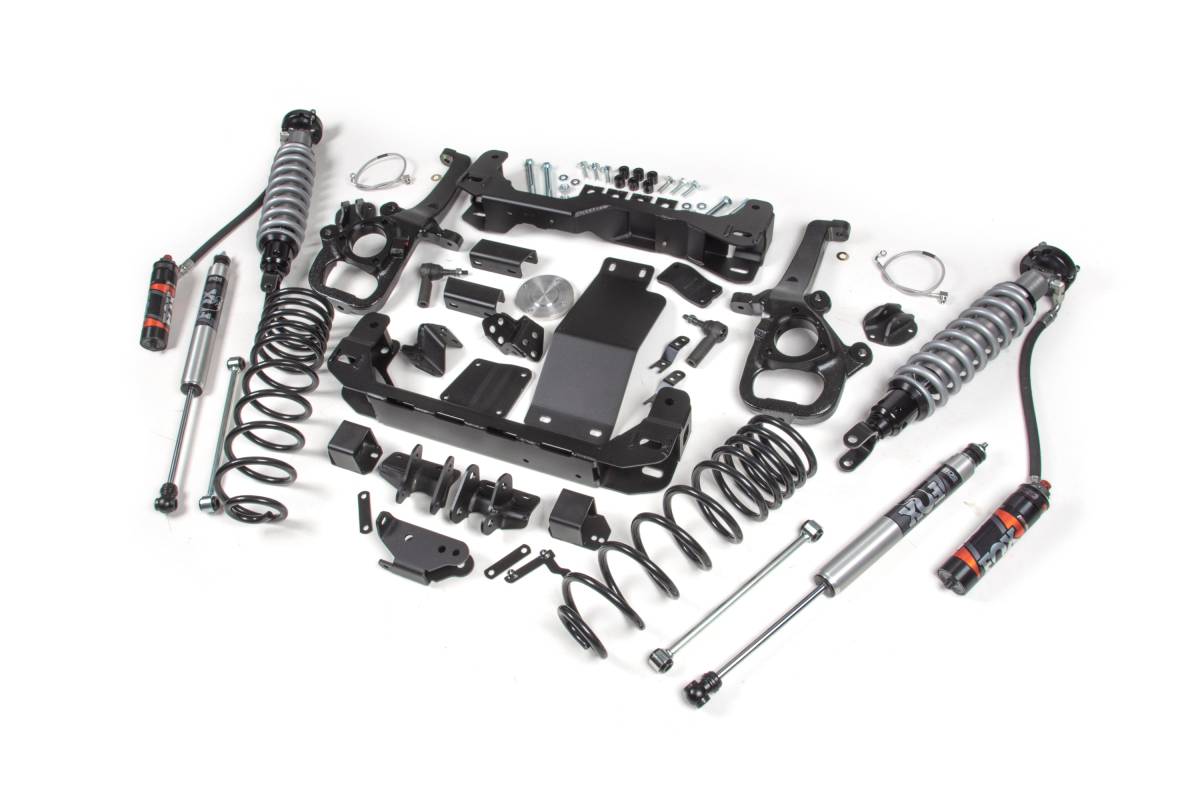

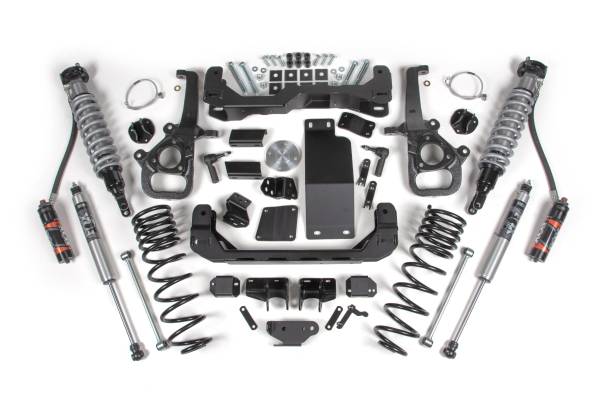

This 3-inch coil-over suspension lift kit from BDS Suspension is designed for the 2025–2026 RAM 1500 Rebel 4WD and features FOX 2.5 Performance Elite coil-over shocks up front. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit employs FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for off-road protection. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining ESC system compatibility. Additional front components include sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, and all necessary hardware. In the rear, the kit uses progressive rate Pro-Ride coil springs, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Rear shocks vary by configuration — see variant options below.
Features
- FOX 2.5 Performance Elite coil-over shocks designed specifically for increased travel and improved absorption of rough terrain
- DSC (Dual Speed Compression) adjuster provides 10 low-speed and 12 high-speed compression levels with a simple twist of the adjuster knobs
- High-clearance crossmember design maximizes ground clearance using 1/4-inch thick laser-cut steel
- HD skid plate system provides improved off-road protection and creates a rigid front subframe
- CNC-machined ductile iron steering knuckles maintain ESC system compliance
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- FOX Performance Series IFP gas rear shocks improve ride quality and off-road performance (configuration dependent)
- Stainless steel braided brake lines, sway bar drops, bump stop extensions, and CV spacers included
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 3 inches
- Maximum Tire Size: Up to 35 inches
- Front Shocks: FOX 2.5 Performance Elite coil-over — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC adjuster (standard on all configurations)
- Front Crossmembers: 1/4-inch thick laser-cut high-clearance steel
- Steering Knuckles: CNC-machined ductile iron
- Rear Springs: Progressive rate Pro-Ride coil springs
- Rear Shocks: FOX 2.5 Performance Elite or FOX 2.0 Performance Series IFP (varies by SKU)
- Brake Lines: Stainless steel braided
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Reciprocating Saw
Important Notes
- Fits 4WD models only.
- Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines only.
- Stock 18-inch wheels cannot be reinstalled due to steering interference. Stock 20-inch and 22-inch wheels can be reinstalled with factory tire size.
- IF USING 18-INCH AFTERMARKET WHEELS WITH 4.5-INCH BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.
- Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
- Disconnect BOTH batteries (if equipped — Main and Auxiliary) before performing install. Follow procedure in instructions.
- Will NOT fit models equipped with adjustable "air ride" suspension.
- Will NOT work on diesel models.
