This configuration includes FOX 2.5 Performance Elite rear shocks, featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir to separate shock oil from high-pressure nitrogen, and the DSC (Dual Speed Compression) adjuster with 10 low-speed and 12 high-speed compression levels. Fully serviceable and backed by a 1-year manufacturer's warranty.
Overview

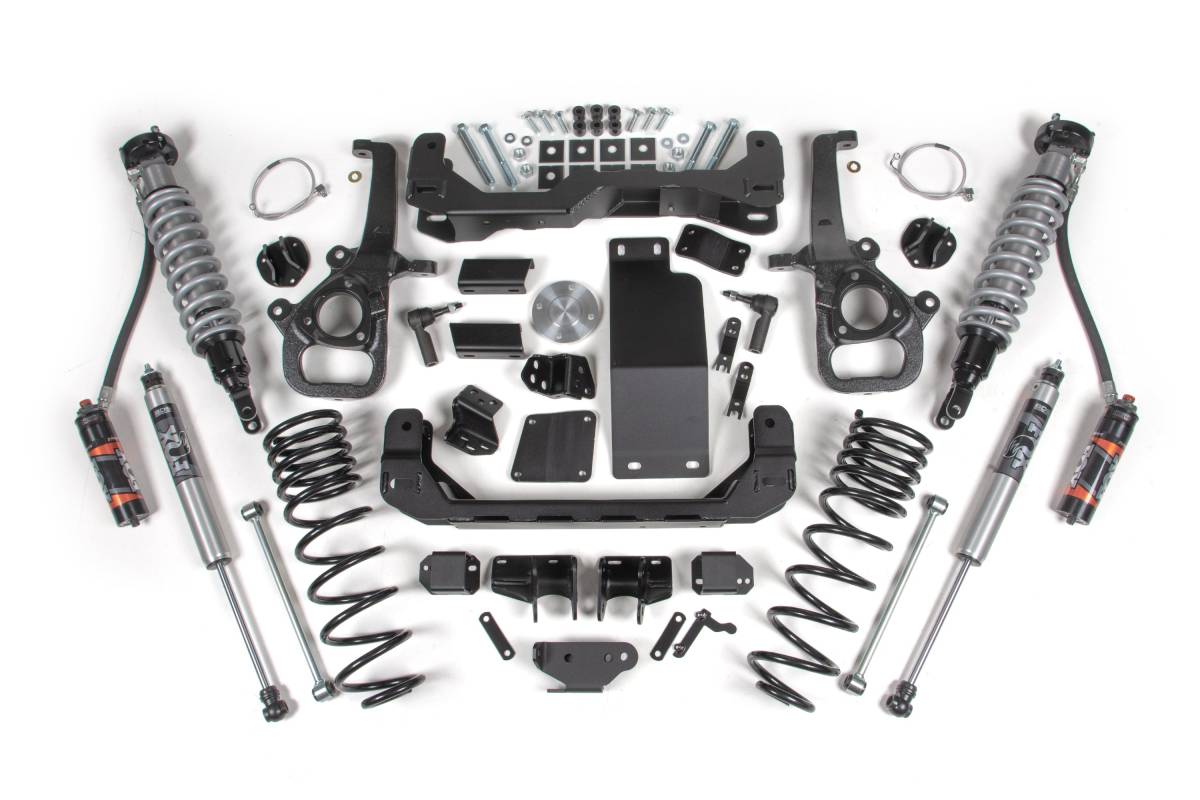

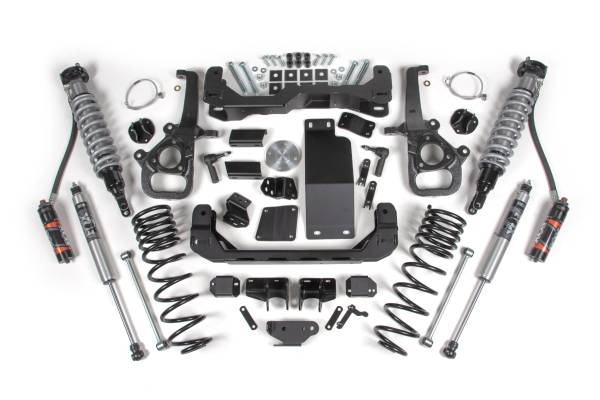

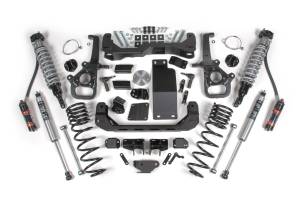

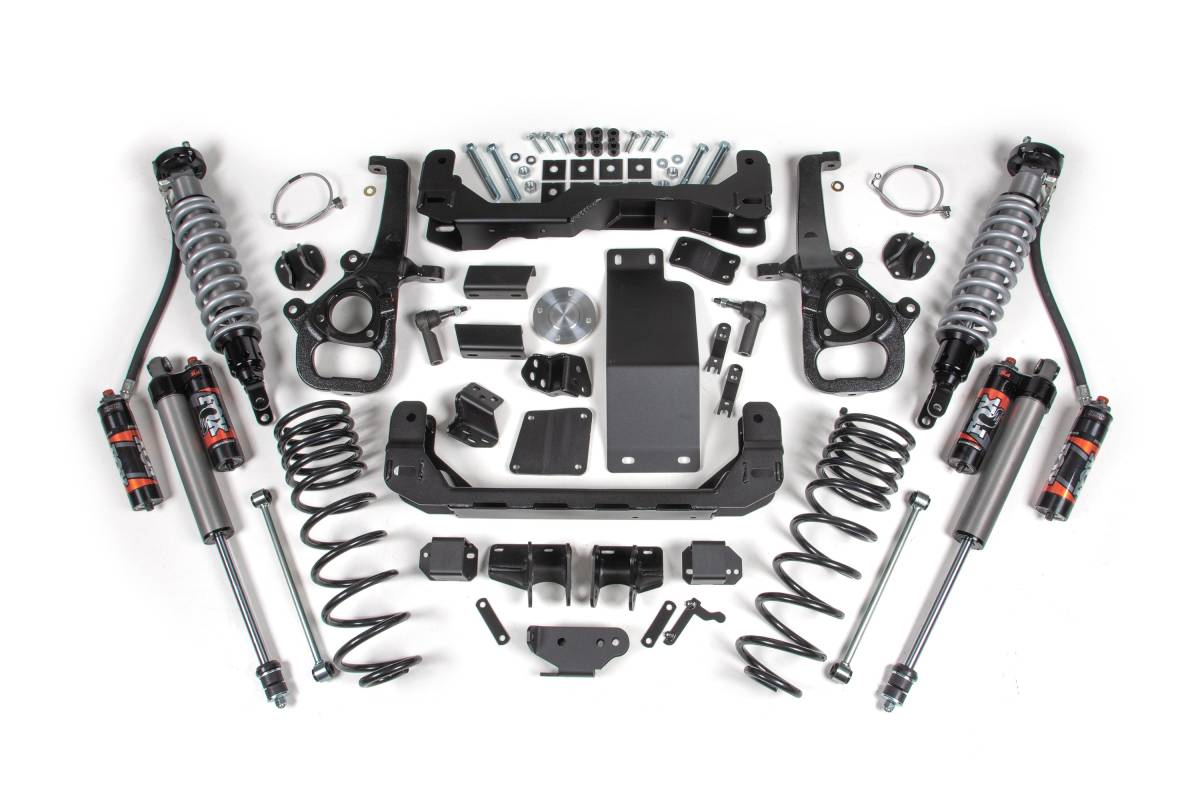

This 5-inch coil-over suspension lift kit from BDS Suspension is designed for the 2025–2026 RAM 1500 Rebel 4WD and features FOX 2.5 Performance Elite coil-over shocks up front. The kit is engineered to improve stance, performance, and off-road capability while maintaining on-road handling characteristics, with clearance for up to 35-inch tires. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for off-road protection. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining ESC system compatibility. Additional front components include sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, and all necessary hardware. In the rear, the kit uses progressive rate Pro-Ride coil springs, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Rear shock options are available at time of purchase.
Features
- FOX 2.5 Performance Elite coil-over shocks up front designed for increased travel and improved terrain absorption
- DSC (Dual Speed Compression) adjuster provides 10 low-speed and 12 high-speed compression levels for precise tuning
- High-clearance crossmember design with 1/4-inch thick laser-cut steel maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain ESC system compliance
- Heavy-duty skid plate system for improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- FOX rear shocks (2.5 Performance Elite or 2.0 Performance Series, depending on configuration) for improved ride and off-road performance
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 5 inches
- Front Shocks: FOX 2.5 Performance Elite coil-over — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC adjuster, black anodized aluminum reservoir
- Crossmembers: 1/4-inch thick laser-cut high-clearance steel
- Steering Knuckles: CNC-machined ductile iron
- Rear Springs: Progressive rate Pro-Ride coil springs
- Maximum Tire Clearance: Up to 35 inches
- Includes: Coil-over shocks, crossmembers, skid plates, differential relocation brackets, steering knuckles, tie rod ends, sway bar drops, sway bar links, bump stop extensions, stainless steel braided brake lines, CV spacers, upper control arm relocation brackets, track bar relocation bracket, and all necessary hardware
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Reciprocating Saw
Important Notes
- Fits 4WD models only.
- Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
- Stock 18-inch wheels cannot be reinstalled due to steering interference. Stock 20-inch and 22-inch wheels can be reinstalled with factory tire size.
- IF USING 18-INCH AFTERMARKET WHEELS WITH 4.5-INCH BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.
- Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
- Disconnect BOTH batteries (if equipped), Main and Auxiliary, before performing install. Follow procedure in instructions.
- Will NOT fit adjustable "air ride" suspension equipped models.
- Will NOT work on diesel models.
