BDS 3 Inch Lift Kit w/ Radius Arm & FOX 2.5 Coilover Conversion | Ram 3500 4WD Diesel (2019-2024) | 2in Block w/ Overload | FOX 2.0 Hydro Bump Stop | 8-Bolt

Includes the 2-Inch Rear Block Kit with Overload — select this option if your RAM 3500 is equipped with factory rear overload leaf springs. Front bump stop configured with the FOX 2.0 Hydraulic Bump Stop, providing an additional layer of shock absorption at full suspension travel for aggressive off-road use at speed. Transfer case indexing ring: 8-Bolt, designed for RAM 3500 trucks equipped with the optional Aisin heavy-duty 6-speed transmission; includes internal shaft seal extension and new shaft seal.

Overview

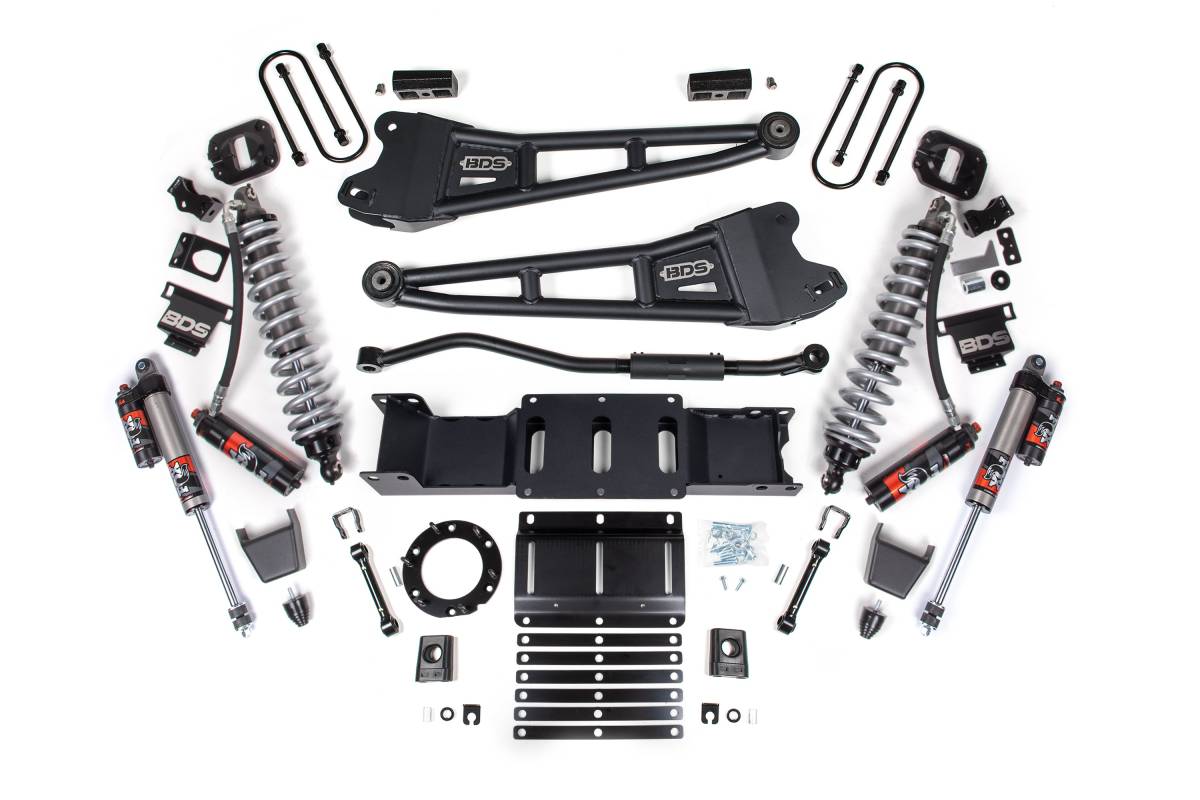

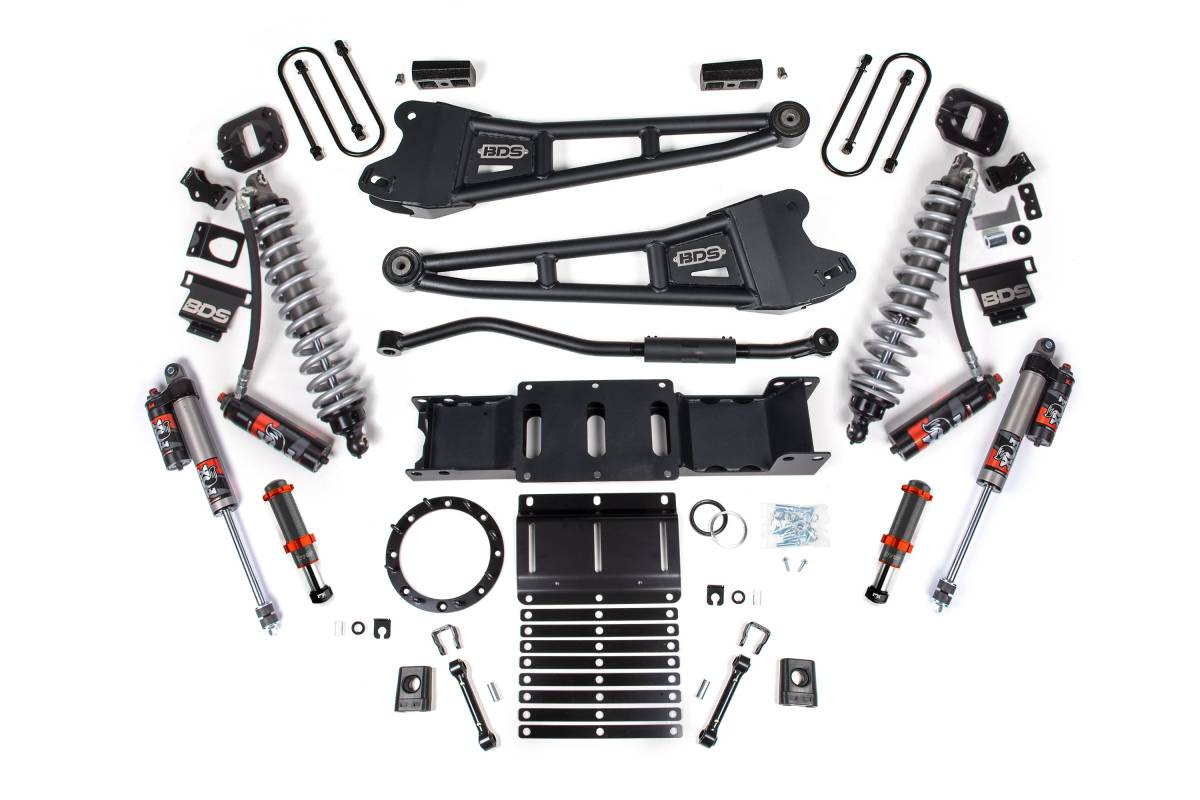

The BDS 3-Inch Radius Arm Lift Kit for 2019–2024 RAM 3500 4WD Diesel trucks replaces the factory suspension with a purpose-built performance system. Heavy-duty BDS radius arms improve articulation and provide rugged strength, while the included BDS Coilover Conversion Kit mounts FOX 2.5 Performance Elite coilovers in the factory coil spring bucket for precise damping and improved ride quality both on and off-road. FOX Performance Elite shocks are fitted at the rear to maintain control across varied terrain. A front adjustable track bar allows the front axle to be re-centered after lifting, and front sway bar correction hardware maintains handling performance.

Features

• FOX 2.5 Performance Elite coilovers mount in the factory coil spring bucket
• FOX 2.5 Performance Elite rear shocks
• Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
• Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
• Front adjustable track bar re-centers the front axle after lifting
• Front sway bar correction hardware to maintain handling performance

Specifications

• Lift Height: 3 Inches
• Rear Lift: 2-Inch block kit (with or without factory rear overload leaf springs — select appropriate variant)
• Transfer Case Indexing Ring: Available in 6-Bolt (standard) or 8-Bolt (Aisin heavy-duty 6-speed transmission)
• Front Bump Stop: Rubber bump stop (standard) or FOX 2.0 Hydraulic Bump Stop (optional upgrade)
• Radius Arm Material: Heavy-duty tubular steel
• Vehicle Fitment: 2019–2024 RAM 3500 4WD Diesel

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Tools Required: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment

Important Notes

• Will not fit air ride equipped models
• Diesel models only
