BDS 6 Inch Lift Kit | FOX 2.5 Performance Elite Coilover | Ram 1500 (2025-2026) 4WD | FOX 2.0 Rear Shocks | Standard Knuckle

Rear shock option: FOX 2.0 Performance Series — 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, and application-specific valving. Knuckle type: Standard, for Ram 1500 models equipped with factory 18", 20", or standard 22" wheel bearing assemblies.

Overview

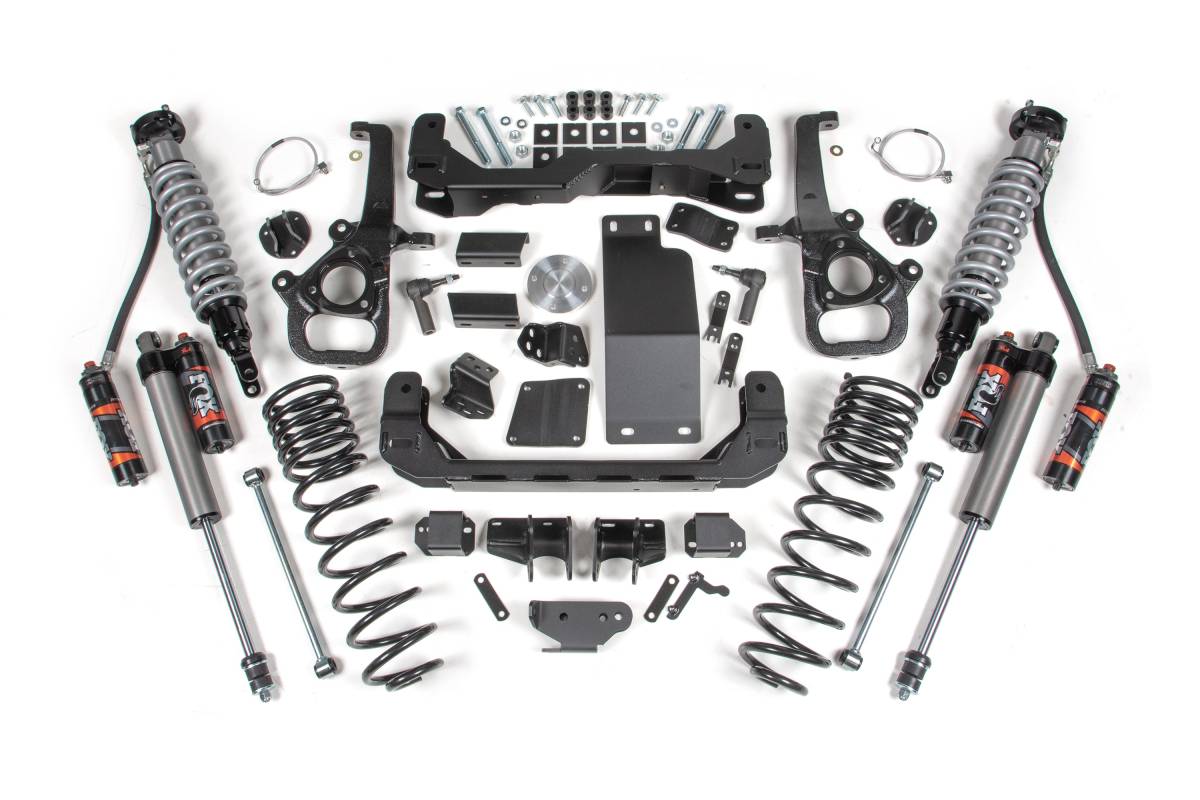

This 6-inch coilover suspension lift kit from BDS Suspension is designed for 2025–2026 Ram 1500 4WD trucks. Up front, the kit utilizes FOX 2.5 Performance Elite coilover shocks, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket system, and heavy duty skid plates for off-road protection. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining ESC system compatibility. Sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, and all necessary hardware are included to complete the front suspension install.

The rear of the kit uses progressive rate Pro-Ride coil springs, upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket, bump stop extensions, and sway bar links. Rear damping is provided by either FOX 2.5 Performance Elite or FOX 2.0 Performance Series shocks depending on the selected variant. The kit provides clearance for up to 37-inch tires.

Features

• FOX 2.5 Performance Elite coilover shocks up front, designed for increased travel and improved on- and off-road performance
• DSC (Dual Speed Compression) adjuster on FOX 2.5 shocks — 10 separate low-speed and 12 high-speed compression levels, adjustable with a simple twist of either adjuster knob
• High-clearance 1/4-inch thick laser-cut steel crossmembers maximize ground clearance
• CNC-machined ductile iron steering knuckles maintain ESC system compliance
• Heavy duty skid plate system for improved off-road protection, bolts together to create a rigid subframe
• Multipiece differential relocation brackets secure the front axle and improve CV angles
• FOX rear shocks (2.5 Performance Elite or 2.0 Performance Series) for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included
• Progressive rate Pro-Ride rear coil springs
• Rear upper control arm relocation brackets correct pinion angle
• Track bar relocation bracket corrects axle positioning
• Stainless steel braided brake lines, sway bar drops, bump stop extensions, and CV spacers included

Specifications

• Lift Height: 6 inches
• Tire Clearance: Up to 37 inches
• Front Shocks: FOX 2.5 Performance Elite Coilover — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC adjuster, fully serviceable, 1-year manufacturer's warranty
• Crossmember Material: 1/4-inch thick laser-cut steel, high-arched design
• Steering Knuckles: CNC-machined ductile iron
• Rear Coil Springs: Progressive rate Pro-Ride
• Brake Lines: Stainless steel braided replacement lines included

Installation

• Estimated Time: 8–10 hours
• Difficulty: Moderate
• Special Tools Required: Reciprocating Saw

Important Notes

• Fits 4WD models only.
• Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
• Rams with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly — reference build code WPM or WPZ.
• Will NOT fit adjustable "air ride" suspension equipped models.
• Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20" and 22" wheels can be reinstalled with factory tire size.
• Will NOT work on diesel models.
• Will NOT fit models equipped with the Thermal Axle option — reference build code DSK-P or check diff cover for cooling lines.
• Disconnect BOTH batteries (if equipped — Main and Auxiliary) before performing the install. See instructions for full detail.
• Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
• If using 18-inch aftermarket wheels with 4.5-inch backspacing, test fit wheels on vehicle before mounting tires to ensure clearance.
• Included replacement front brake lines (22545) do not work on 2025 model year trucks; a relocation bracket is used instead. See instructions for bracket details.
