BDS 5.5 Inch Lift Kit w/ Radius Arms | Ram 3500 (2013-2018) 4WD Gas | FOX 2.0 Performance Series Shocks

This kit is configured with FOX 2.0 Performance Series IFP nitrogen-charged shocks front and rear for improved ride quality and off-road performance.

Overview

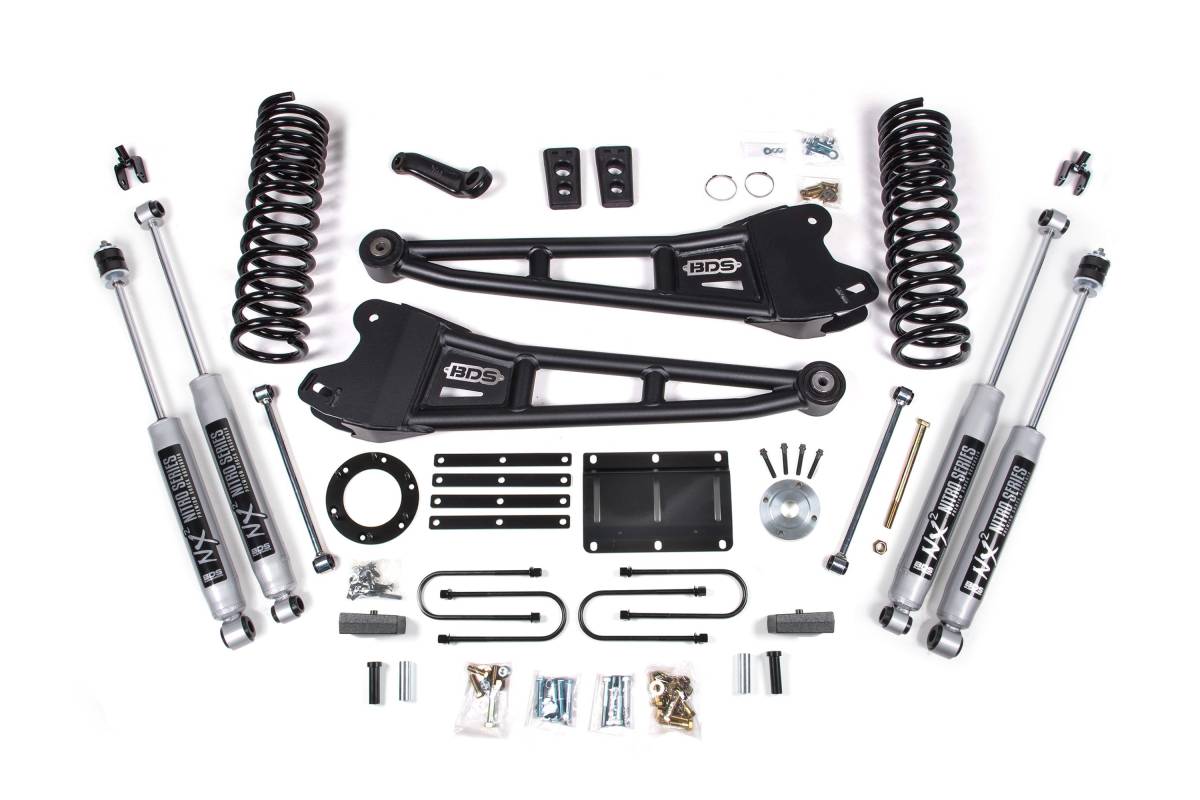

This 5.5-inch lift kit with radius arms from BDS Suspension is engineered for 2013–2018 RAM 3500 gas-powered 4WD trucks. Designed to improve stance, performance, and capability, the kit includes everything necessary to set up your truck with clearance for up to 37-inch tires. Up front, the kit features gas-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. In the rear, a high-strength fabricated lift block, longer U-bolts, and a matching set of shocks are included.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• Front high-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Front track bar relocation bracket to re-position the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 Nitro Series or FOX Performance Series IFP nitrogen-charged shocks for improved ride and off-road performance
• Rear high-strength fabricated lift block with longer U-bolts

Specifications

• Lift Height: 5.5 inches
• Compatible Vehicles: 2013–2018 RAM 3500 4WD Gas
• Maximum Tire Size: Up to 37 inches
• Radius Arms: High-strength tubular construction, factory mounting location, caster-adjustable, OE-style rubber bushing at frame mount
• Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride design
• Rear Lift Method: Fabricated lift block with extended U-bolts

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
• The carrier bearing drop is necessary for models equipped with a two-piece rear driveshaft.
• Some vehicles may require a rear driveshaft spacer kit (p/n 122007) to maintain adequate rear driveshaft engagement.
• DRW models: fit inner wheel clearance to the upper U-bolt plate on 5.5–6-inch kits.
