BDS 5.5 Inch Lift Kit w/ Radius Arm | 2014-2018 Ram 2500 4WD Gas w/ Rear Air Ride | NX2 Nitro Series Shocks

This kit is configured with NX2 Nitro Series nitrogen-charged gas shocks front and rear, delivering improved ride quality and off-road performance.

Overview

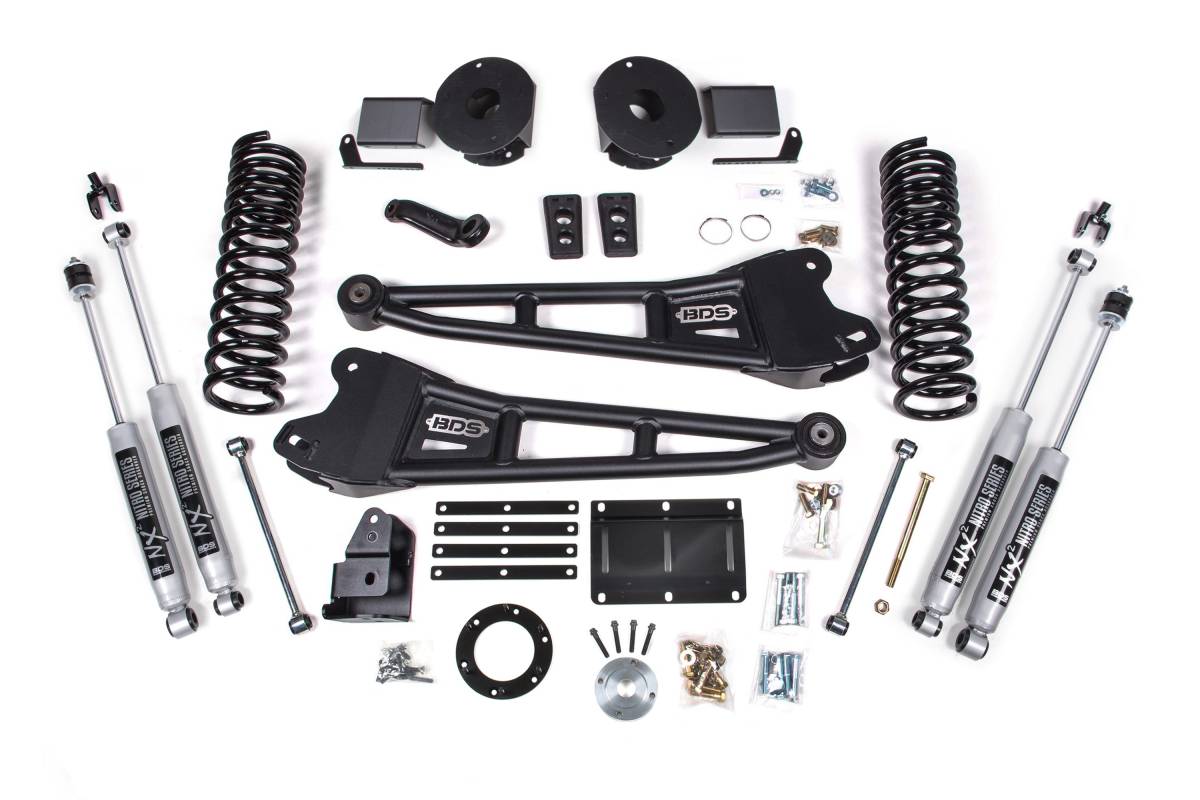

BDS Suspension engineered this 5.5-inch lift kit with radius arm for 2014–2018 RAM 2500 gas-powered trucks equipped with factory rear air ride systems. The kit is designed to improve stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes heavy-duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of shocks. New air ride leveling sensor brackets are included to re-position the ride height sensors, maintaining full air bag range of motion and factory-like ride height control.

HD Radius Arms

In place of the factory stamped steel radius arms, BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights. An OE-style rubber bushing at the frame mount provides smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are included to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high tensile steel with properly sized wire diameter, these direct OE replacement coil springs are engineered for maximum reliability without premature coil bind.

Steering Correction

A forged drop pitman arm minimizes steering angle once lifted, and pairs with a heavy-duty track bar drop bracket to keep steering geometry in phase through suspension travel while recentering the front axle.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive rate coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Precision-tuned nitrogen-charged shocks (NX2 Nitro Series or FOX 2.0 Performance Series) for improved ride and off-road performance
• Air ride leveling sensor brackets to maintain factory air suspension functionality
• Heavy-duty rear air bag spacers and bump stop extensions
• Clearance for up to 37-inch tires

Specifications

• Lift Height: 5.5 inches
• Application: 2014–2018 RAM 2500 4WD Gas (OE Rear Air Ride)
• Coil Springs: Gas-specific Pro-Ride progressive rate, high tensile steel
• Radius Arms: High-strength tubular steel with OE-style rubber frame bushing
• Pitman Arm: Forged drop design
• Maximum Tire Size: Up to 37 inches

Installation

• Estimated Time: 3 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• For OE Air Ride systems only.
• 6.4L gas models will require exhaust modification to clear the front driveshaft.
• 5.7L gas models may require exhaust modification as well.
• The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
