BDS 6 Inch Lift Kit w/ Radius Arm | 2014-2018 Ram 2500 Diesel 4WD w/ Rear Air Ride | NX2 Nitro Series Shocks

This kit is configured with NX2 Nitro Series nitrogen-charged shocks front and rear, providing reliable gas-charged damping for improved ride and off-road performance.

Overview

BDS Suspension engineered this 6-inch lift kit with radius arm for 2014–2018 Ram 2500 diesel-powered trucks equipped with OE rear air ride suspension. Designed to improve stance, performance, and capability, the kit includes everything necessary to complete the installation with clearance for up to 37-inch tires. Up front, the kit features diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a forged drop pitman arm, track bar bracket for steering correction, bump stops, brake line brackets, and nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses heavy-duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, and a matched set of rear shocks. New air ride leveling sensor brackets are supplied to re-position the ride height sensors, maintaining full air bag range of motion and factory-like ride height control.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the front and rear axle
• Forged drop pitman arm to correct steering angles after lift
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Heavy-duty air bag spacers with air ride leveling sensor brackets to maintain full air bag range of motion
• Available with BDS NX2 Nitro Series or FOX 2.0 Performance Series IFP nitrogen-charged shocks
• Clearance for up to 37-inch tires

Specifications

• Lift Height: 6 inches
• Compatible Vehicles: 2014–2018 Ram 2500 Diesel, 4WD, with OE Rear Air Ride
• Radius Arms: High-strength tubular steel with OE-style rubber bushing at frame mount; caster adjustable
• Coil Springs: Full-length, diesel-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter

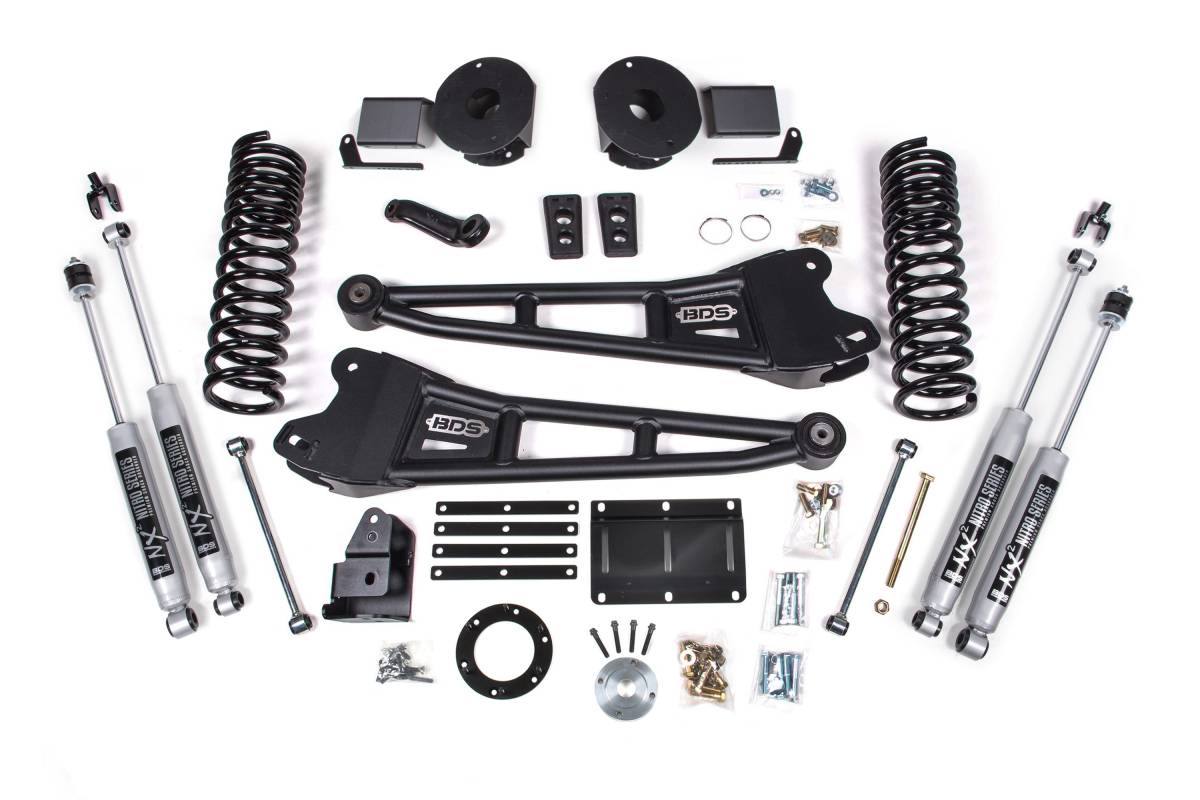

• Includes: Radius arms, Pro-Ride coil springs, forged drop pitman arm, track bar brackets (front and rear), bump stops, bump stop extensions, brake line brackets, sway bar links, air bag spacers, air ride leveling sensor brackets, HD transmission crossmember, transfer case indexing ring, shocks

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

For OE Air Ride systems only.
