BDS 5.5 Inch Lift Kit w/ Radius Arm | Ram 2500 2014-2018 4WD Gas | FOX 2.5 Performance Elite Shocks

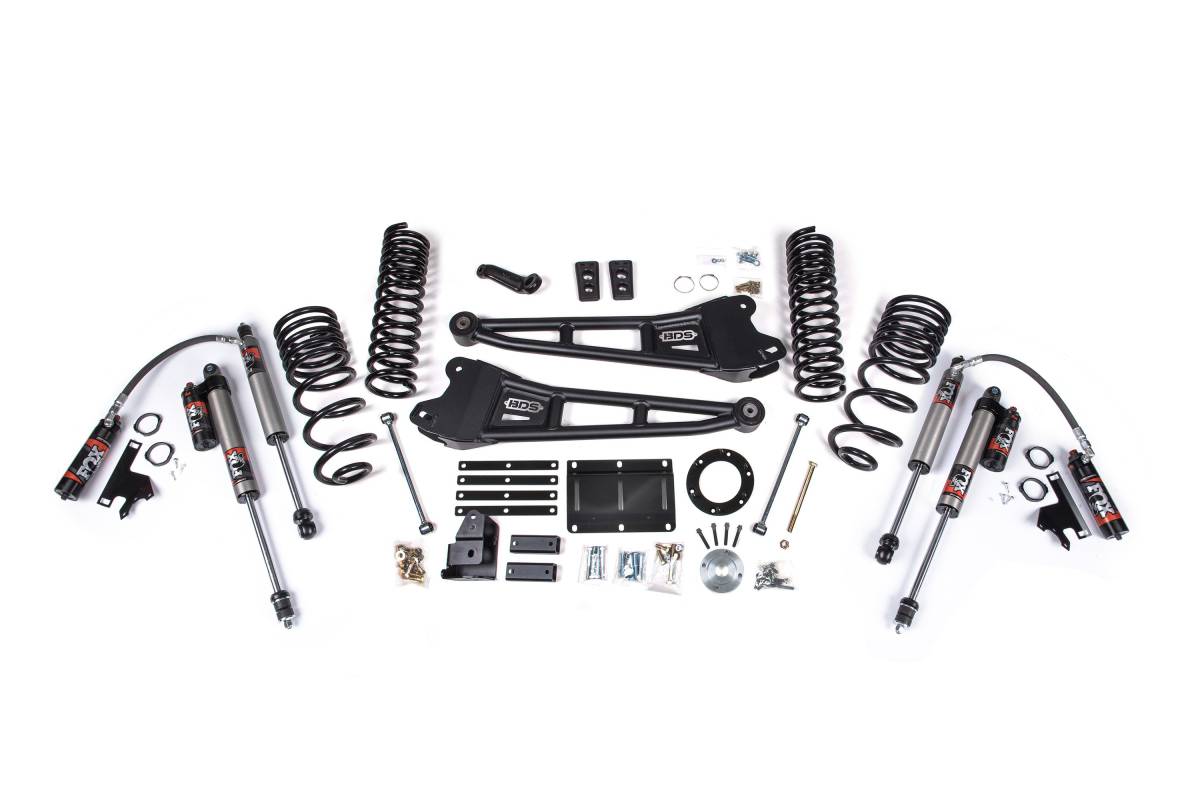

This configuration includes FOX 2.5 Performance Elite nitrogen-charged shocks front and rear, providing enhanced damping performance and off-road capability.

Overview

This 5.5-inch lift kit with radius arm from BDS Suspension is designed for 2014–2018 RAM 2500 gas-powered 4WD trucks. The kit is engineered to improve stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts

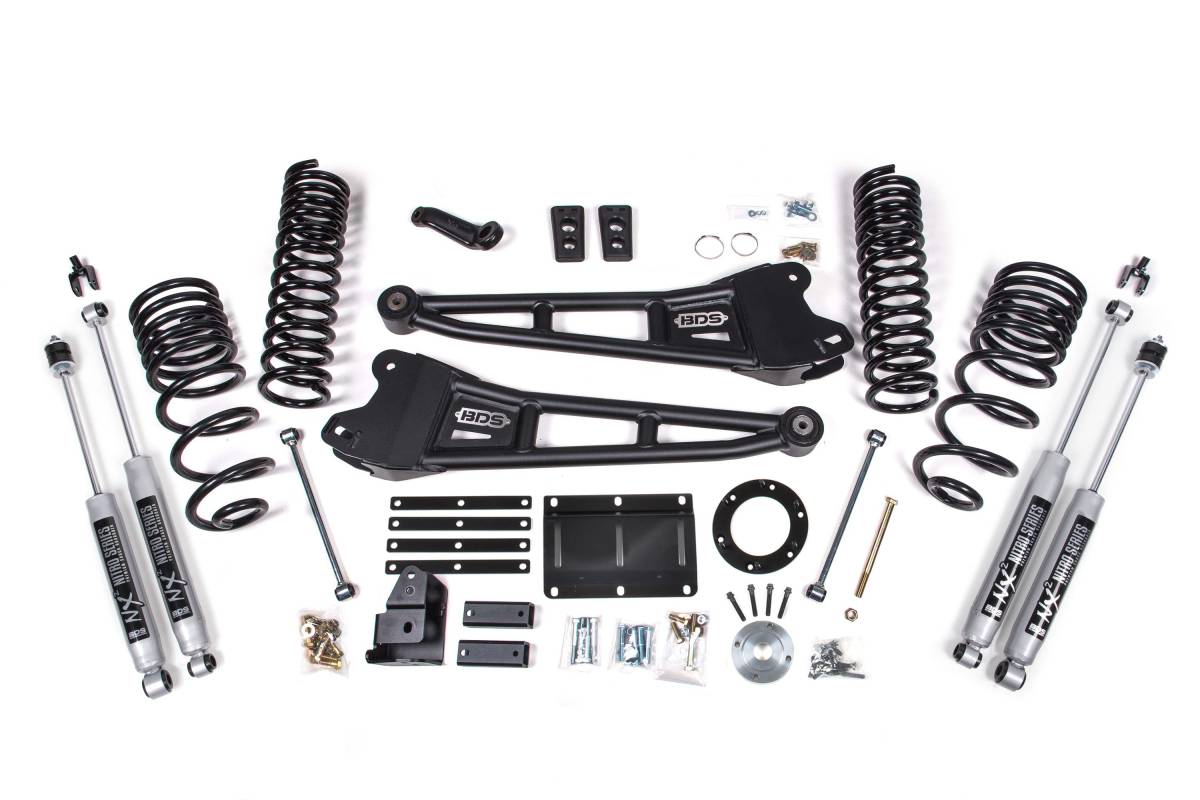

• Available with NX2 Nitro Series gas shocks, FOX 2.0 Performance Series IFP shocks, or FOX 2.5 Performance Elite shocks

Specifications

• Lift Height: 5.5 inches
• Vehicle Fitment: 2014–2018 RAM 2500 4WD Gas
• Tire Clearance: Up to 37 inches
• Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride coil springs manufactured from high tensile steel
• Radius Arms: High-strength tubular construction with caster adjustment; OE-style rubber bushing at frame mount
• Includes: Front and rear coil springs, radius arms, forged drop pitman arm, track bar brackets, bump stops, bump stop extensions, brake line brackets, sway bar links, transfer case indexing ring, HD transmission crossmember, and shocks

Installation

• Estimated Time: 3 hours
• Difficulty: Moderate
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
