BDS 4 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW 4WD Diesel (2020-2022) | FOX 2.5 Performance Elite Shocks

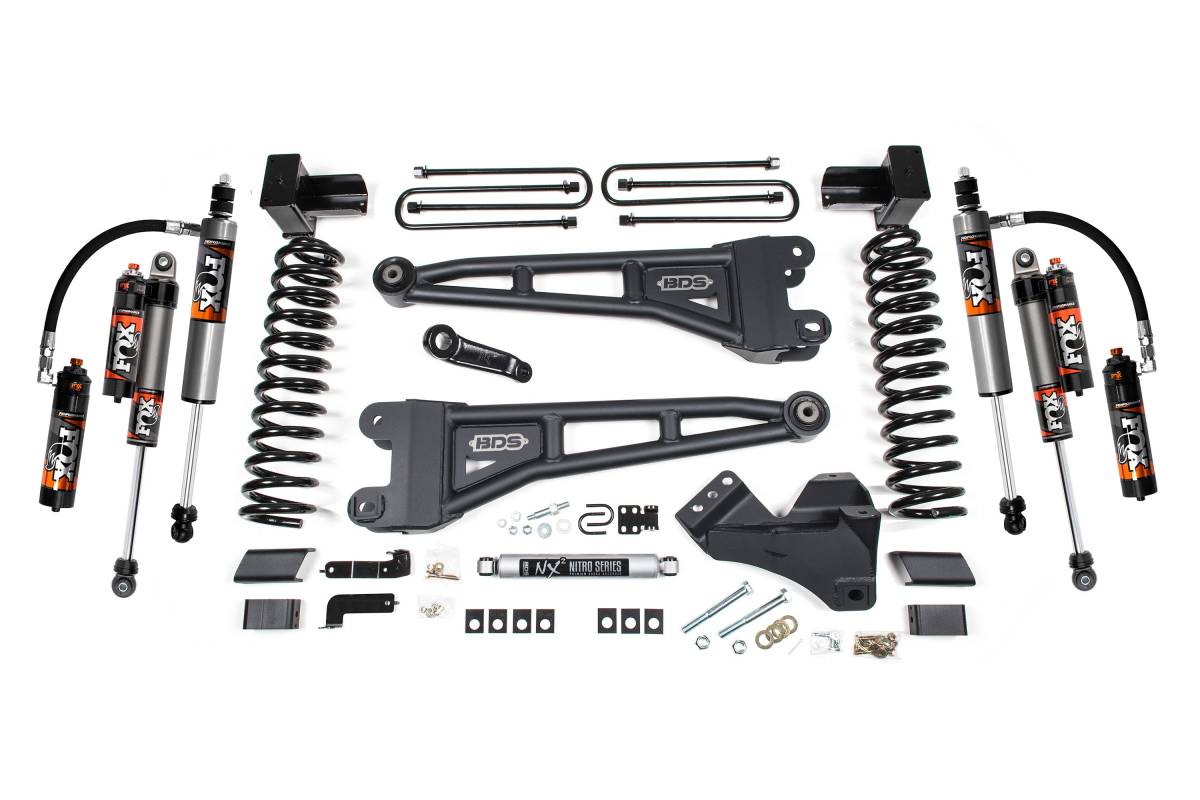

Configured with FOX 2.5 Performance Elite shocks front and rear. FOX 2.5 Performance Elite shocks feature a 2.5-inch impact extruded aluminum body, an external reservoir design that separates shock oil from high-pressure nitrogen, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, a DSC (Dual Speed Compression) adjuster as standard, and are fully serviceable for a lifetime of use.

Overview

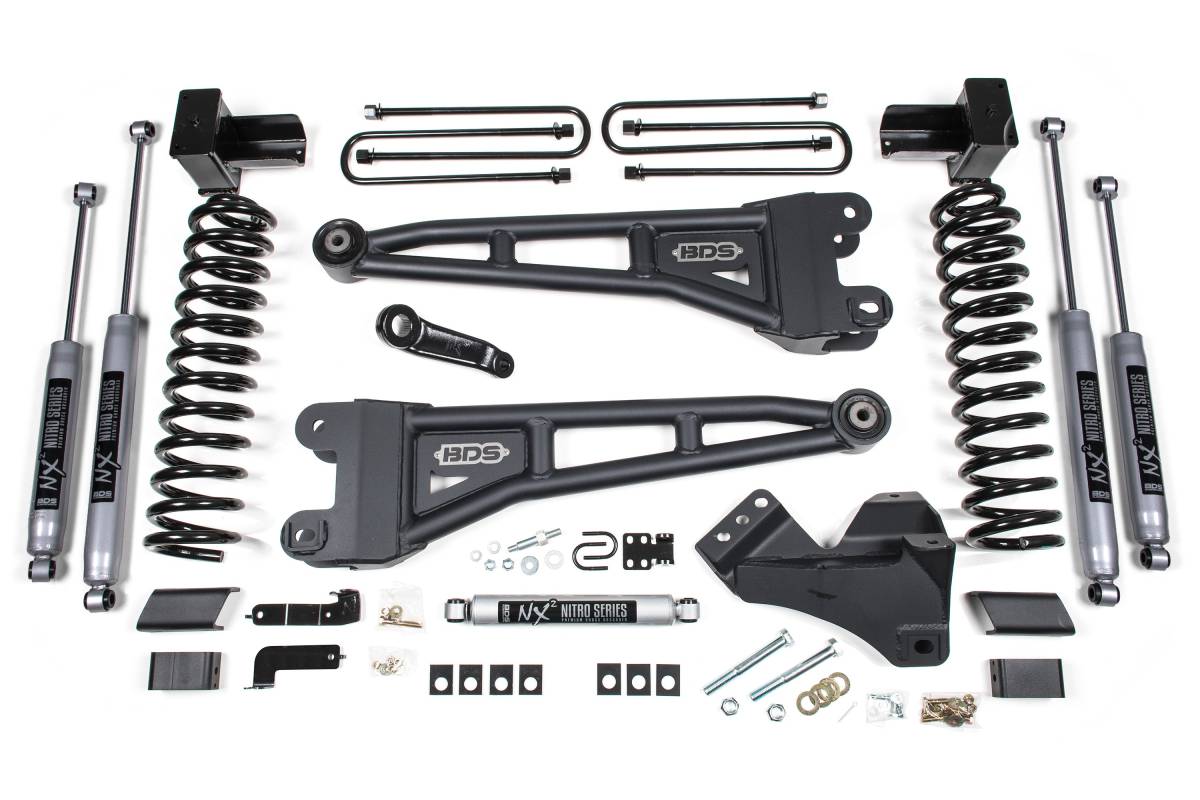

This 4-inch radius arm lift kit from BDS Suspension is designed for the 2020–2022 Ford F350 Super Duty Dually (DRW) 4WD diesel truck. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar drop bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, brake line brackets, and a matched set of shocks.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual-rate coil springs — diesel-specific, full-length design providing correct lift height and smooth, predictable ride across various terrains
• Heavy-duty tubular steel radius arms that mount in the factory location, correct caster, and maximize ground clearance; include OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles and keep steering geometry in phase through suspension travel while recentering the front axle
• Fabricated steel rear lift blocks provide a level stance from front to rear
• Longer U-bolts and brake line brackets included for rear installation
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series or FOX 2.5 Performance Elite shocks for increased on- and off-road performance

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2020–2022 Ford F350 Super Duty DRW 4WD Diesel
• Front Lift Components: Pro-Ride diesel-specific coil springs, HD tubular radius arms, forged drop pitman arm, track bar drop bracket, sway bar relocation hardware, brake line brackets, shocks
• Rear Lift Components: High-strength fabricated steel lift block, longer U-bolts, brake line brackets, shocks
• Tire Clearance: Up to 37-inch tires (37x12.50 may require minor trimming)

Installation

• Estimated Time: 6–8 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off Tool, Pitman Arm Puller, Torque wrench capable of 405 ft-lbs

Important Notes

• Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• Torque wrench capable of 405 ft-lbs required.
• 37 x 12.50 tires may require minor trimming.
