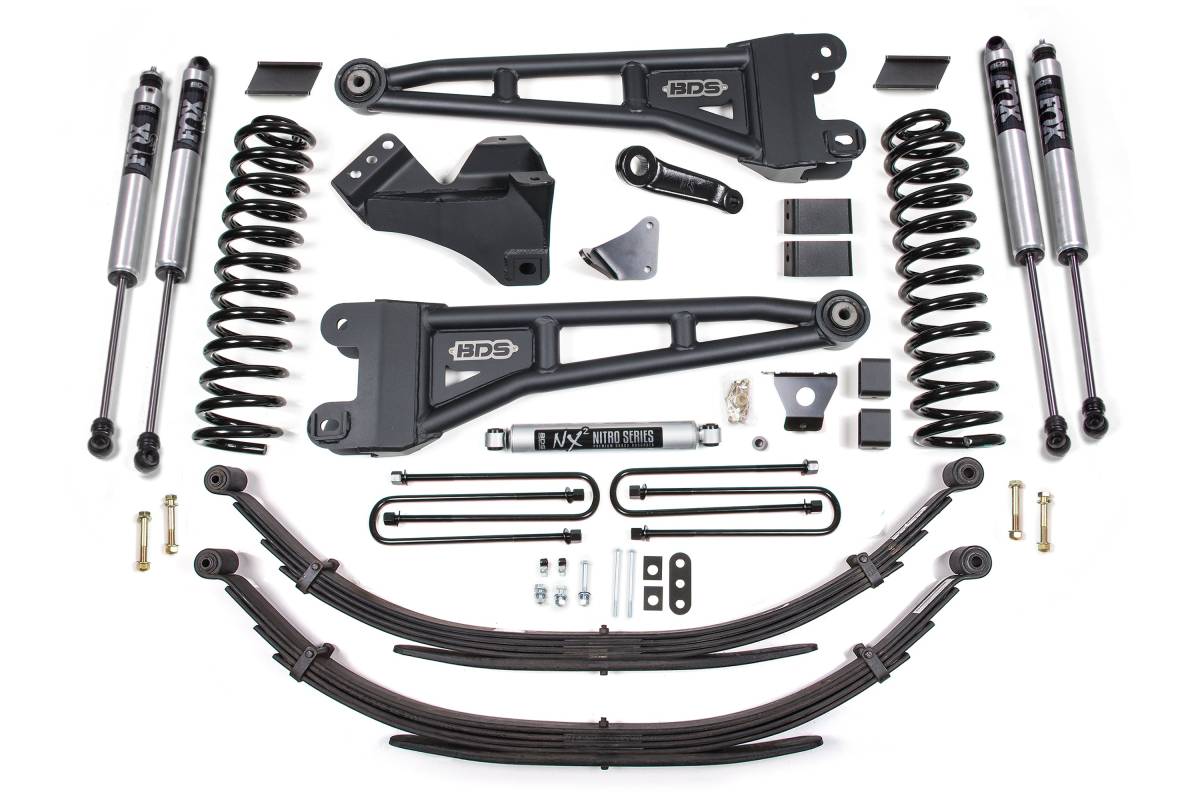

Rear lift provided by multi-leaf progressive rear leaf springs, which deliver a level stance front to rear, maintain factory payload weight ratings, eliminate the need for a lift block, reduce axle wrap, and provide a more controlled and stable feel. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, and application-specific valving.
Overview

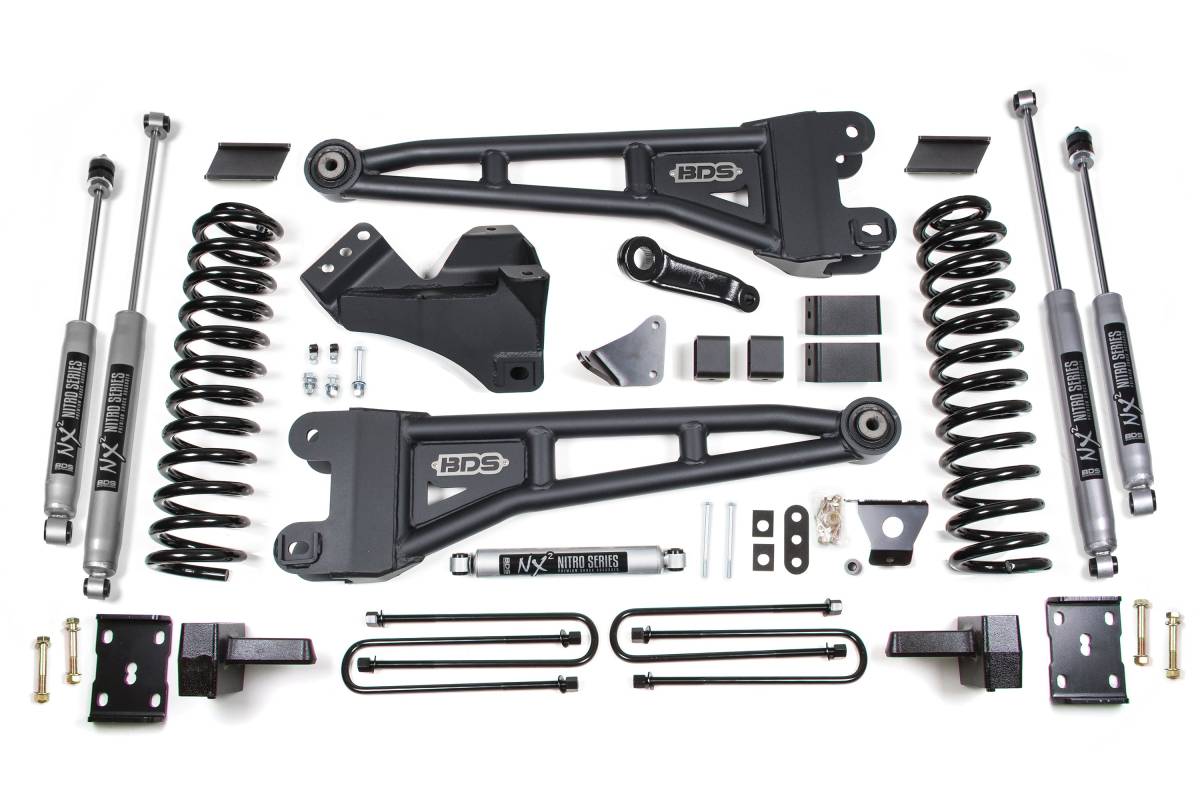

This 6-inch radius arm lift kit from BDS Suspension is designed for 2008–2010 Ford F250 and F350 Super Duty diesel trucks (4WD) and provides clearance for up to 37-inch tires. The front of the kit includes diesel-specific 6-inch lift Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and custom-tuned nitrogen charged shocks. The rear base kit includes high-strength steel lift blocks, longer U-bolts, and brake line brackets, with a choice of rear lift option and shock upgrade available at time of purchase.
Features
- 100% bolt-on installation
- Pro-Ride dual-rate coil springs — diesel-specific, full-length for correct lift height and smooth ride
- Heavy-duty tubular steel radius arms correct caster and maximize ground clearance
- Track bar relocation bracket and drop pitman arm maintain proper steering geometry
- Fabricated steel lift blocks provide rear lift height
- Sway bar relocation and brake line brackets included
- Standard NX2 Nitro shocks with vehicle-specific valving
- Optional upgrade to FOX 2.0 Performance Series shocks for enhanced on- and off-road performance
- Rear leaf spring option available for level stance front to rear
Specifications
- Lift Height: 6 inches
- Tire Clearance: Up to 37 inches
- Radius Arms: High-strength tubular steel with OE-style rubber bushing at frame mount; mounts in factory location with caster adjustment
- Rear Steel Blocks: High-strength steel construction; designed to provide correct pinion angles
- Rear Leaf Springs (optional): Multi-leaf progressive design; maintains factory payload weight ratings; reduces axle wrap
- NX2 Nitro Shocks: Nitrogen-charged twin-tube design; 10-stage velocity-sensitive valving; dual-welded ends; 1-3/8-inch high-flow piston; self-lubricating seals; silver powder coat finish
- FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body; internal floating piston (IFP) monotube design; CNC machined 6061-T6 aluminum mounting ends; 5/8-inch hard chrome plated heat-treated alloy steel shaft; race-developed high-flow piston; application-specific valving; clear anodized finish
Installation
- Estimated Installation Time: 8 hours
- Difficulty: Moderate
- Special Tools Required: Pitman arm puller
Important Notes
- Removal of the factory block is required.
- Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2 inches lower than the front. To achieve a level stance, upgrade to the rear leaf spring option.
- These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that sits above the main leaf. You will need to identify which configuration your vehicle has before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order part #123402 in the options section.
- Although extremely rare, front driveline vibration may occur.
- Front exhaust modification may be required to clear the front driveshaft on gas models.
- U-bolts will not fit dually models.
- Dropped pitman arm will not fit 10-lug wide track F350 models.
