BDS 4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (2008-2010) 4WD Gas | Block Kit With Factory Overload | FOX 2.0 Performance Series

Rear lift achieved with a steel block kit configured for trucks with factory top-mounted overload springs. Blocks are high-strength steel, designed to provide correct pinion angles and maximize ground clearance. Verify your truck has a top-mounted overload — an extra leaf set above the main leaf pack — before ordering.

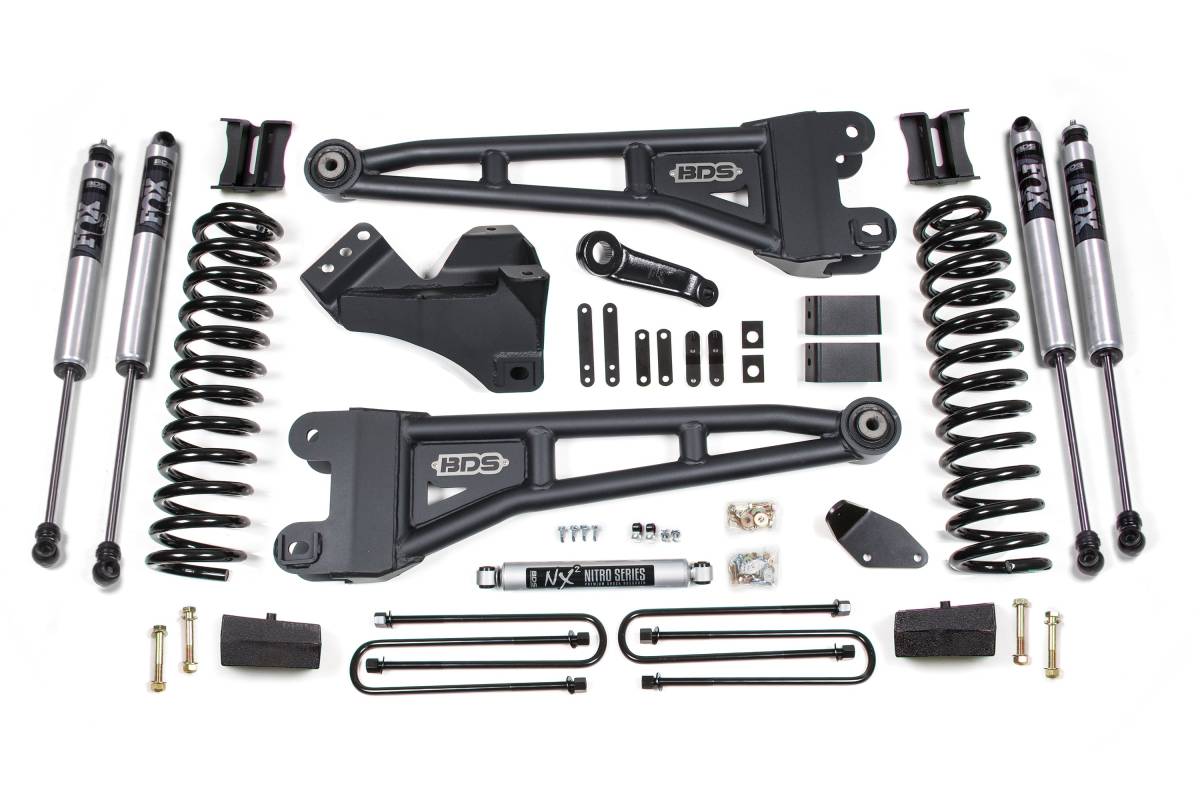

Equipped with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston, and application-specific valving for maximum on- and off-road performance.

Overview

This 4-inch radius arm lift kit from BDS Suspension is designed for 2008–2010 Ford F250 and F350 Super Duty gas trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the base kit utilizes a high-strength lift block (or available leaf spring option), a U-bolt flip kit for maximum ground clearance, brake line brackets, and a matched set of shocks.

Features

• 100% bolt-on installation
• Pro-Ride dual-rate coil springs — gas-specific, full-length design for correct lift height and smooth, predictable ride across various terrains
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance; mount in factory location with OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation
• Caster adjustment accommodates a wide range of lift heights
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles and minimize steering angle change once lifted
• Sway bar relocation hardware included
• Fabricated steel lift blocks provide level stance from front to rear
• U-bolt flip kit for maximum ground clearance
• Brake line brackets included front and rear

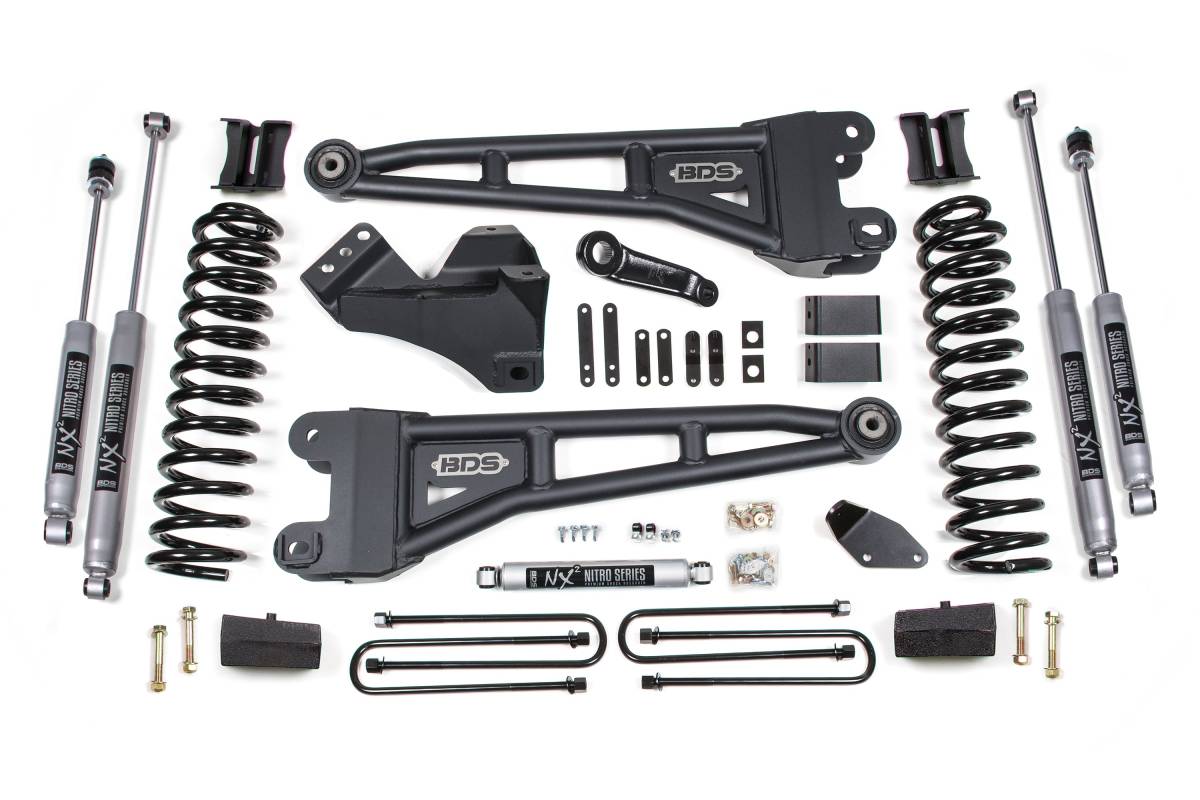

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Radius Arms: High-strength tubular steel; factory mounting location; OE-style rubber bushing at frame mount
• Coil Springs: Full-length, gas-specific, Pro-Ride dual-rate design
• Pitman Arm: Forged drop style
• Lift Blocks: High-strength fabricated steel; designed for correct pinion angles
• Vehicle Application: 2008–2010 Ford F250 / F350 Super Duty 4WD Gas

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
