This configuration upgrades the rear with replacement leaf springs featuring a multi-leaf progressive design for a smooth ride. Maintains factory payload weight ratings, reduces axle wrap, and creates a more controlled and stable feel — eliminating the need for a lift block entirely.
Equipped with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, and application-specific valving for maximum on- and off-road performance.

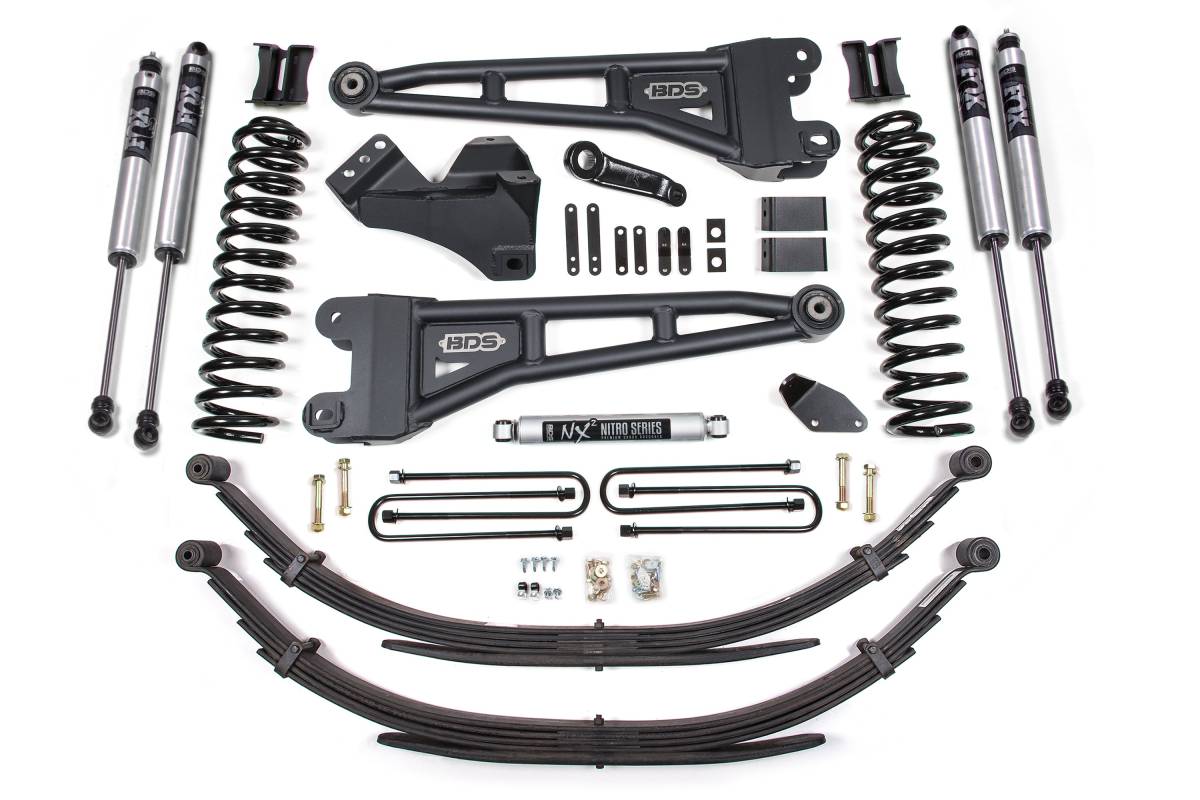

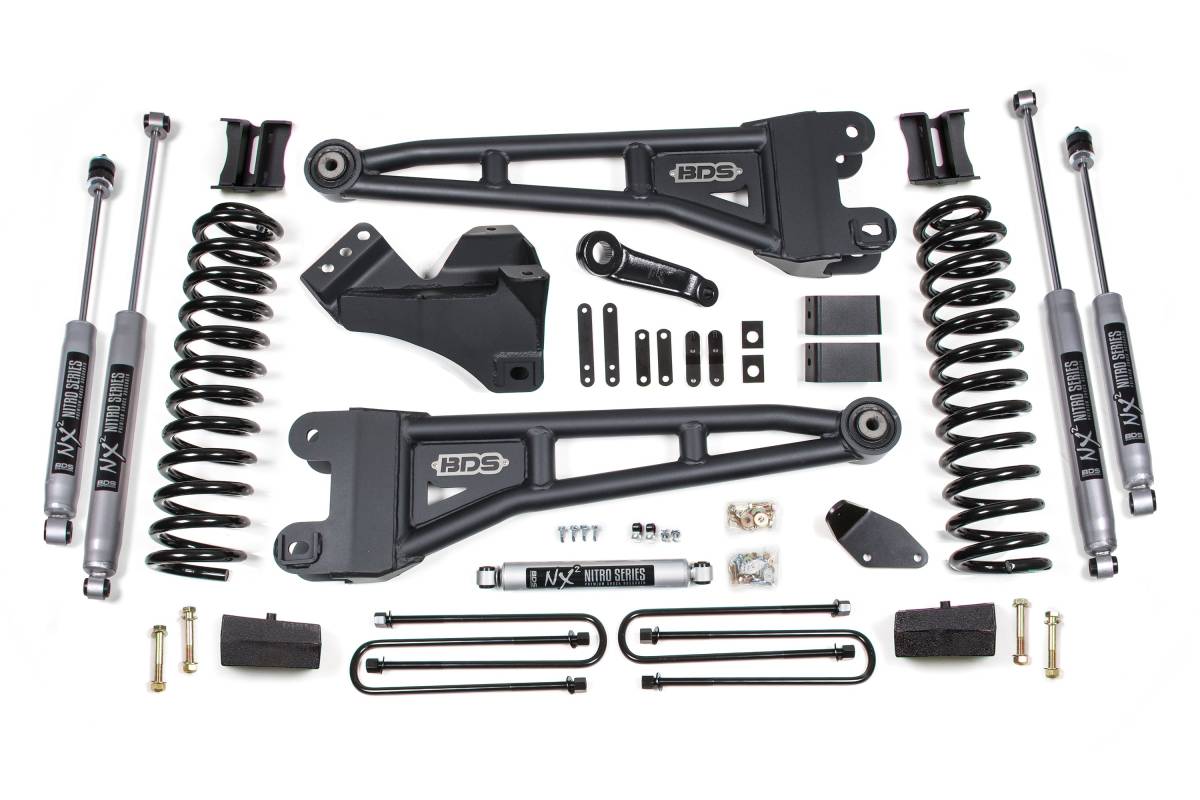

This 4-inch radius arm lift kit from BDS Suspension is designed for 2008–2010 Ford F250 and F350 Super Duty diesel trucks. The kit improves stance, performance, and off-road capability while providing clearance for up to 35-inch tires. Up front, it includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength lift block or optional leaf springs, a u-bolt flip kit for maximum ground clearance, brake line brackets, and a matched set of shocks.
These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
