BDS 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over | Ford F250/F350 Super Duty (2008-2010) 4WD Diesel | Block Kit With Factory Overload

This variant includes a steel block rear lift kit configured for trucks with factory top-mounted overload springs. High-strength fabricated steel blocks provide correct pinion angles and a level stance. Select this option if your F250/F350 is equipped with a separate overload leaf mounted above the main leaf pack.

Overview

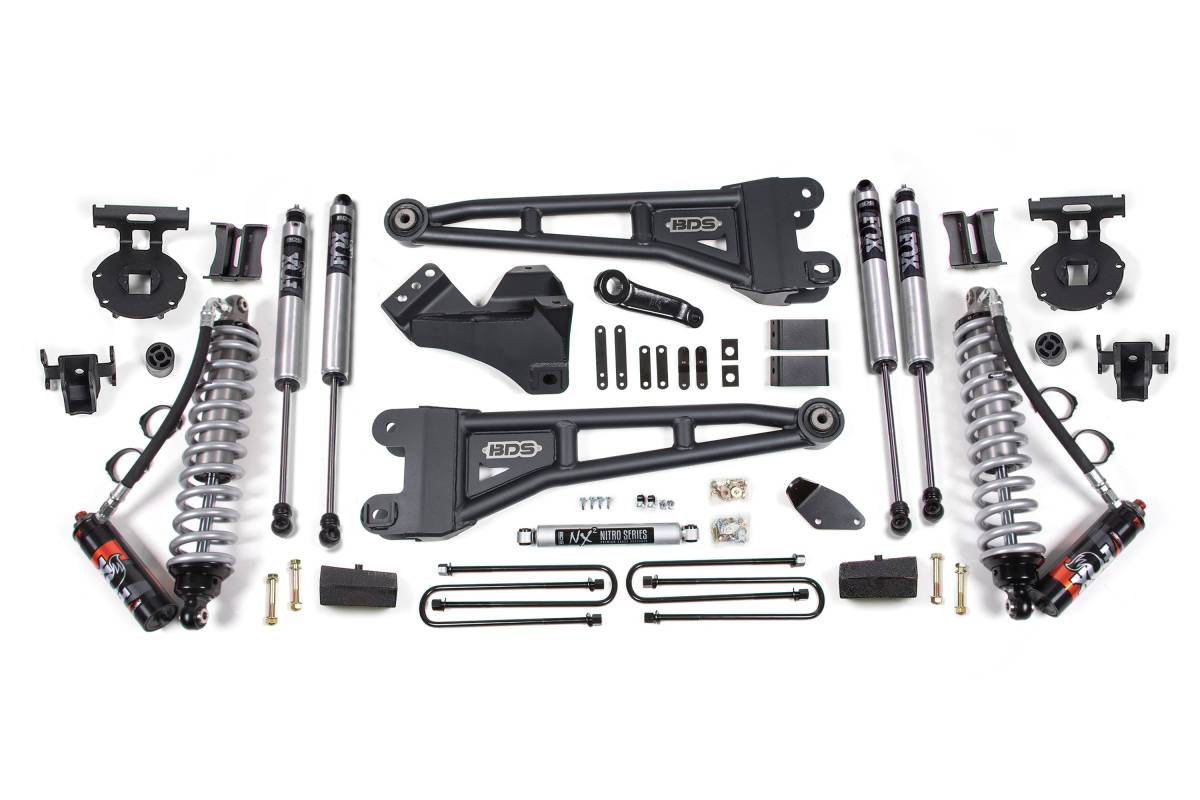

This 4-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-Over conversion from BDS Suspension is built for 2008–2010 Ford F250 and F350 Super Duty diesel-powered trucks. Designed to improve stance, performance, and capability, the kit includes everything necessary to provide clearance for up to 35-inch tires. Up front, the kit features diesel-specific FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation, brake line brackets, and secondary FOX 2.0 shocks. In the rear, the kit utilizes a high-strength lift solution and a matching set of FOX Performance shocks.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for maximum performance
• Eibach coil springs provide smooth ride through rough terrain
• Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specifications

• Lift Height: 4 inches
• Compatible with: 2008–2010 Ford F250 & F350 Super Duty 4WD Diesel
• FOX 2.5 Performance Elite shocks feature 2.5-inch diameter bodies with remote reservoir
• DSC adjuster offers 10 separate low-speed and 12 high-speed compression levels
• Black anodized aluminum reservoir increases cooling efficiency
• Radius arms mount into factory location with OE-style rubber bushing at frame mount
• Rear lift blocks are high-strength fabricated steel
• Tire clearance: up to 35 inches

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
