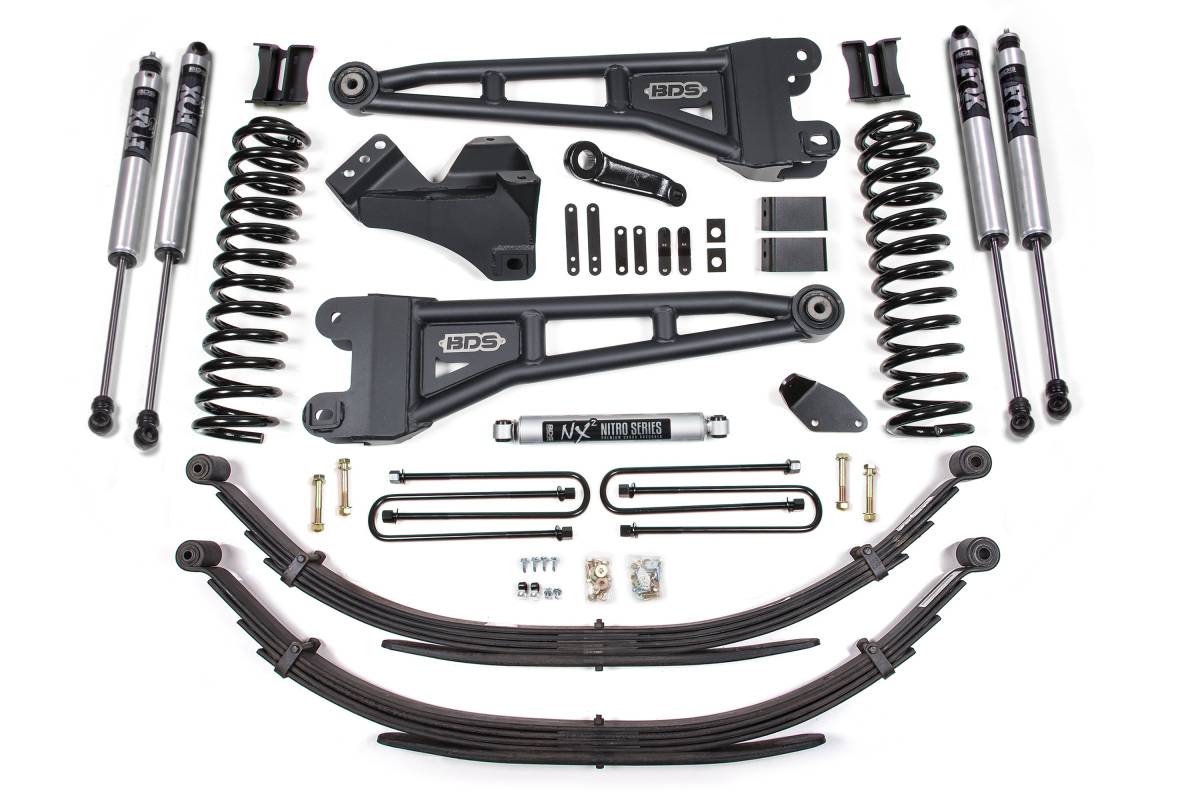

Rear lift utilizes replacement multi-leaf progressive rear leaf springs that eliminate the need for a lift block, reduce axle wrap, and maintain factory payload weight ratings for a smooth, controlled ride. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston, and application-specific valving for maximum on- and off-road performance.
Overview

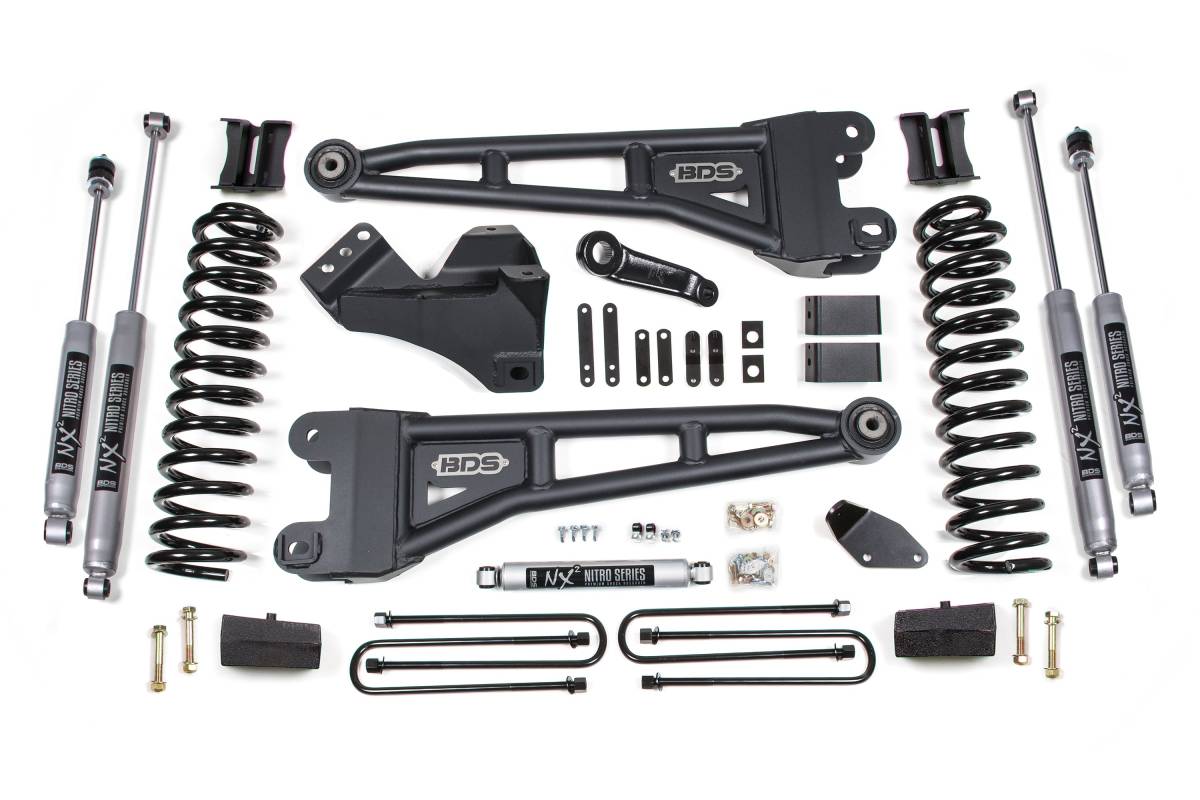

This 4-inch radius arm lift kit from BDS Suspension is designed for 2005–2007 Ford F250 and F350 Super Duty gas trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit is available with a steel block lift option or replacement leaf springs, along with brake line brackets and a matching set of shocks. Rear block kits are available in two configurations to accommodate trucks built with or without factory top-mounted overload springs.
Features
- 100% bolt-on installation
- Gas-specific Pro-Ride dual rate coil springs for a smooth, predictable ride across various terrains
- Heavy-duty tubular steel radius arms correct caster and maximize ground clearance
- Track bar relocation bracket and forged drop pitman arm maintain proper steering angles
- Fabricated steel blocks provide a level stance from front to rear (block kit variants)
- Multi-leaf progressive rear leaf springs reduce axle wrap and maintain factory payload ratings (leaf spring variant)
- Standard NX2 Nitro shocks with vehicle-specific valving
- Available upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
- Clearance for up to 35-inch tires
Specifications
- Lift Height: 4 inches
- Front Lift: Gas-specific Pro-Ride coil springs
- Radius Arms: High-strength tubular steel with caster adjustment and OE-style rubber bushing at frame mount
- Steering Correction: Forged drop pitman arm and heavy-duty track bar drop bracket
- Rear Lift Options: Steel block kit (with or without factory overload) or replacement multi-leaf progressive leaf springs
- Rear blocks: High-strength fabricated steel; designed to provide correct pinion angles
- Includes sway bar relocation and brake line brackets
- NX2 Nitro Series shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, self-lubricating seals, silver powder coat finish
- FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston, application-specific valving, clear anodized finish
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
