BDS 2.5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (2011-2016) 4WD Diesel | No Rear Block | FOX 2.0 Performance Series

No rear block kit included — suited for trucks equipped with a factory 3-3/4 inch rear block that do not require an additional block to achieve a level stance. Configured with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

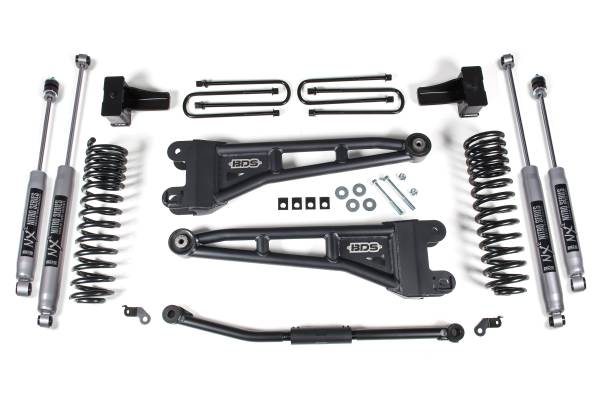

This 2.5-inch radius arm lift kit from BDS Suspension is designed for 2011–2016 Ford F250 and F350 Super Duty diesel-powered 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block (configuration-dependent), longer U-bolts, and a matched set of shocks.

Features

• 100% bolt-on installation
• Diesel-specific Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance; mount into factory location with OE-style rubber bushing at frame mount
• Adjustable 1-3/8-inch solid steel track bar designed to recenter the front axle; pre-assembled with bushings and ready to bolt into factory mounting points
• Fabricated steel blocks provide a level stance from front to rear (where applicable)
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
• Fitment for up to 35-inch tires

Specifications

• Front lift height: 2.5 inches
• Radius arm material: High-strength tubular steel
• Track bar material: 1-3/8-inch solid steel stock
• Rear lift block material: High-strength fabricated steel
• NX2 Nitro Shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, clear anodized finish

Installation

• Estimated Time: 5 hours
• Difficulty: Moderate
• Tools Required: Basic hand tools, torque wrench, jack / jack stands

Important Notes

• Designed for diesel models without top-mounted overload rear springs.
• U-bolts for trucks with overloads are required separately: part# UBT4028 (Qty 4).
• Models equipped with a factory 3-3/4-inch rear block do not require a rear block kit to achieve a more level stance.
• For a tail-high stance, substitute #013519 5-inch rear block kit.
