BDS 4 Inch Lift Kit | 2014 Ford F-150 4WD | 2 Inch Block Kit w/ FOX 2.0 Performance Series Shocks

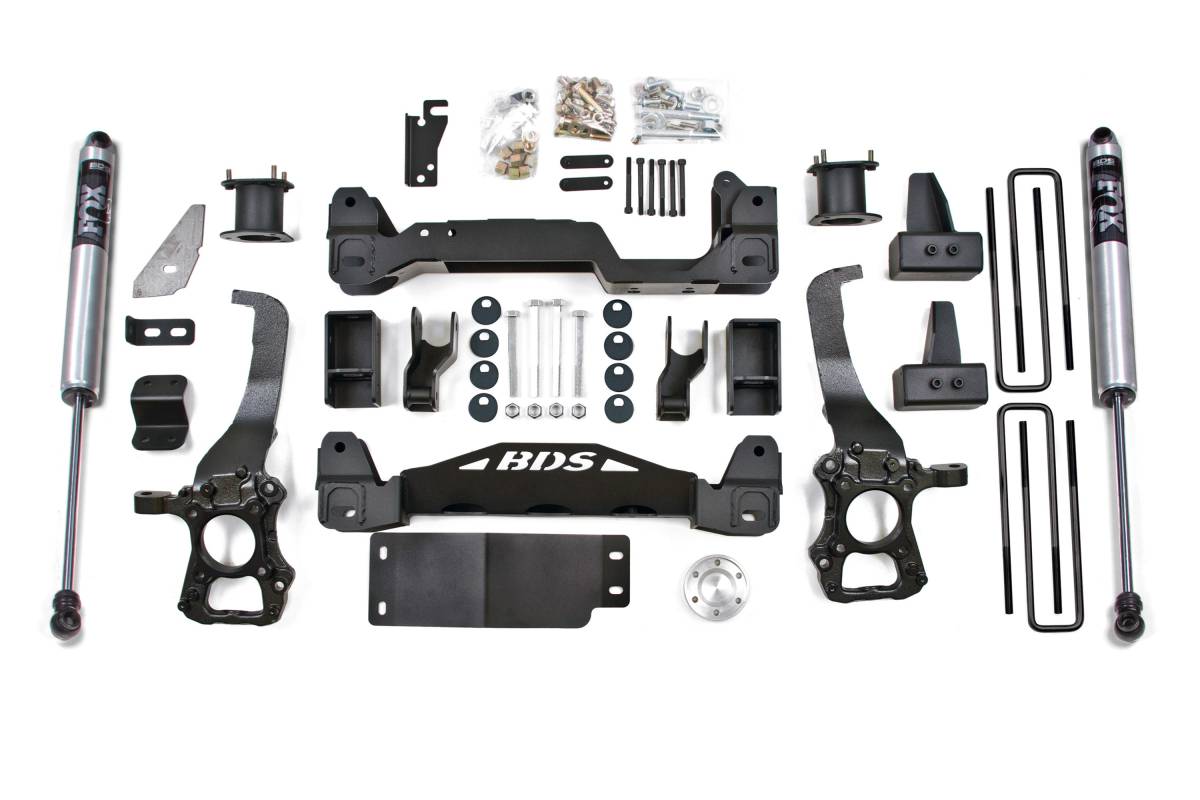

Configured with a 2 Inch Rear Block Kit for a tail-low-to-level stance, paired with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

BDS Suspension offers a 4-inch suspension lift kit for the 2014 Ford F-150 4WD, designed to improve stance, ground clearance, and off-road capability while maintaining proper on-road handling characteristics. The kit accommodates up to 35-inch tires and addresses suspension and steering geometry at the new ride height. Up front, the design incorporates high-arched, 1/4-inch-thick steel crossmembers, multi-piece differential relocation brackets, a front skid plate, and CNC-machined ductile iron steering knuckles. The rear is lifted and leveled using high-strength cast steel lift blocks and longer U-bolts, with a choice of rear shock options.

Features

• High clearance crossmembers improve strength and off-road capability
• Heavy duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts to lift and level the stance

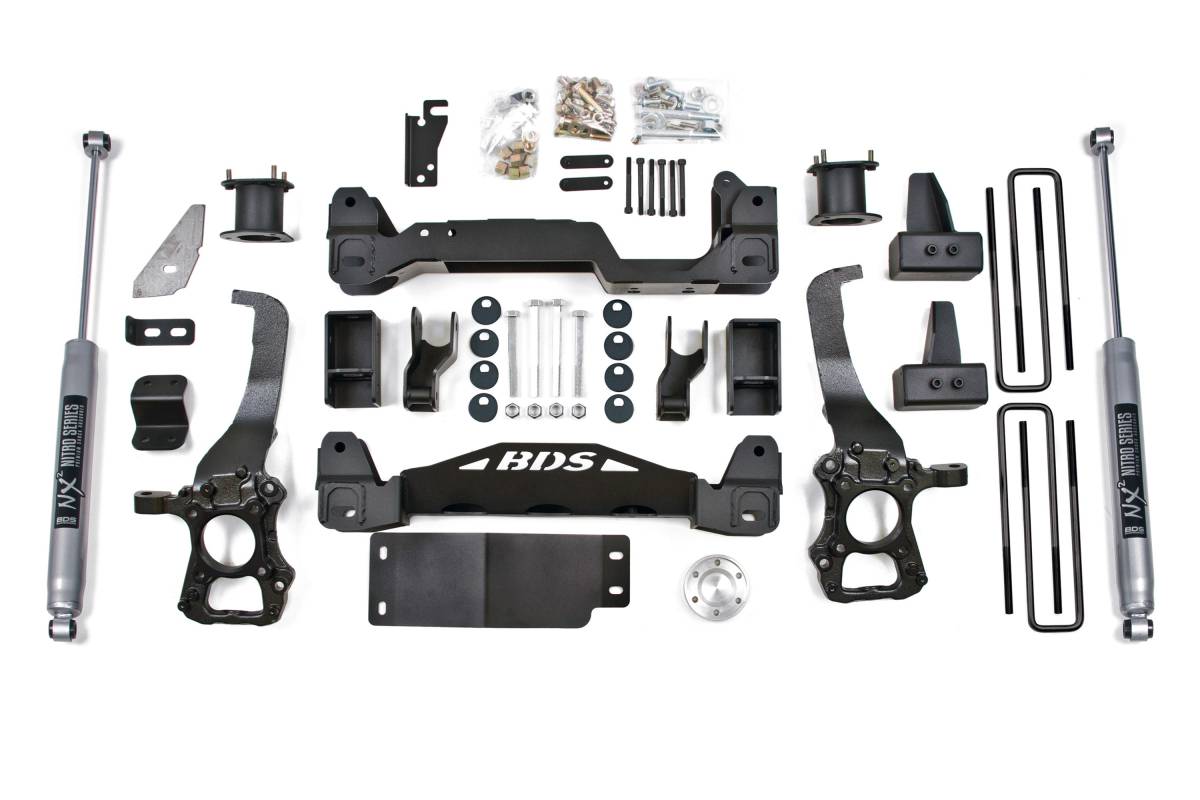

• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Front crossmembers: 1/4-inch-thick laser-cut high-clearance steel
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift blocks: High-strength cast steel
• Includes: Crossmembers, differential relocation brackets, skid plate, steering knuckles, sway bar relocation brackets, brake line brackets, alignment cam bolts, lift blocks, U-bolts, shocks, and all necessary hardware

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off Tool, Welding Equipment

Important Notes

• Requires frame bracket modification and welding.
• 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to a 305/60-20 tire.
• E-brake bracket required for factory power steps (part #123018).
• Block kits replace factory 1-1/4-inch block.
• For a level-to-tail low appearance, use #023415 in place of included #023425.
• Will not fit HD models (7 lug).
• FMVSS No. 126 Compliant.
