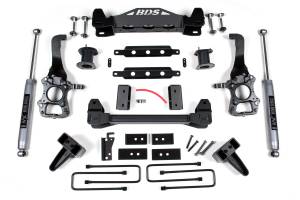

BDS 6 Inch Lift Kit | Ford F150 2WD (2015-2020) | 4 Inch Block Kit | FOX 2.0 Performance Series Shocks

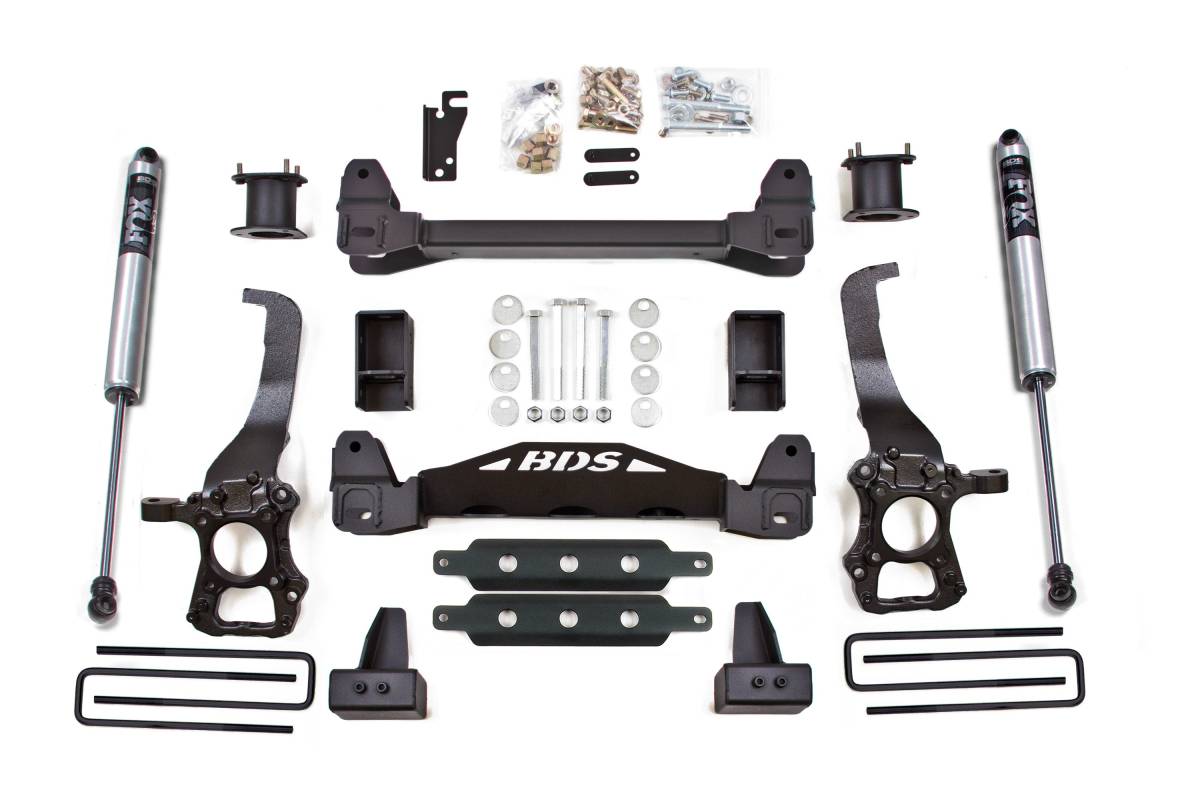

Configured with a 4 Inch Rear Block Kit for a tail-low-to-level stance. Equipped with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

BDS Suspension offers a 2WD-specific 6 inch lift kit suspension system for the 2015–2020 Ford F150 2WD. Designed to improve stance, performance, and capability, this kit includes everything necessary to provide clearance for up to 37-inch tires. The kit takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for on-road handling.

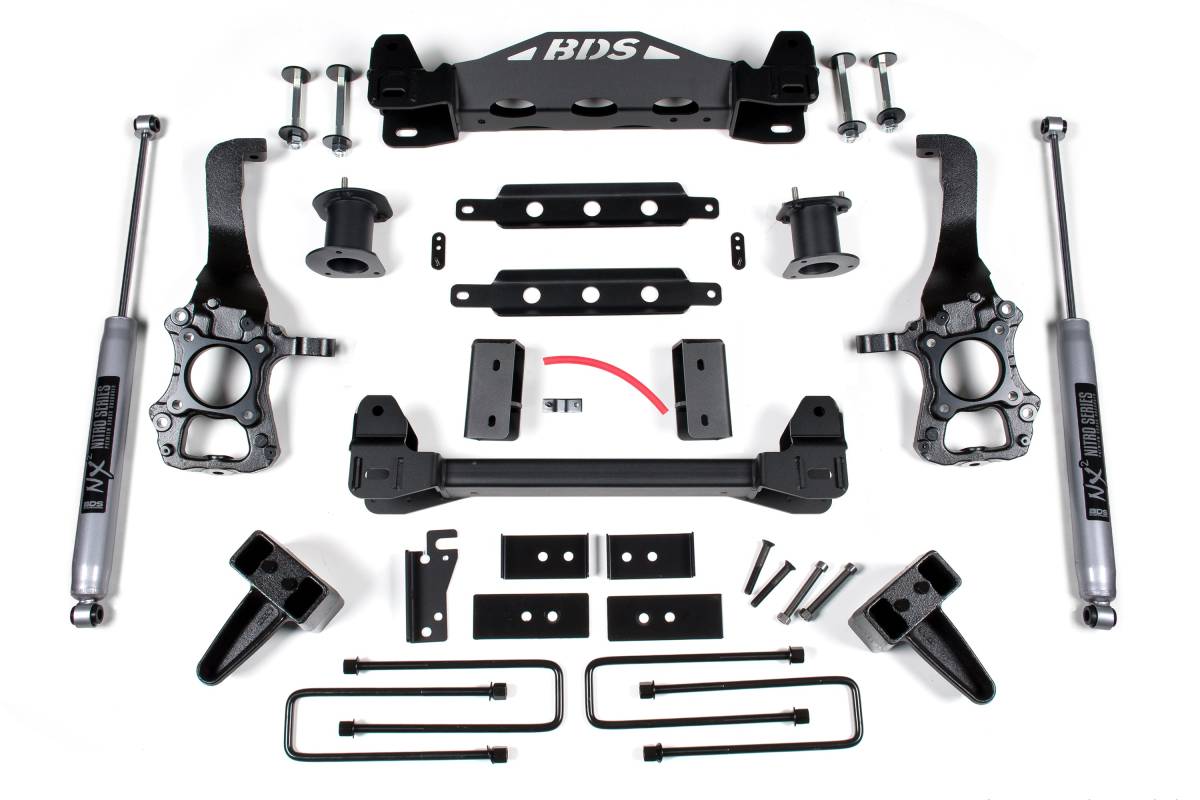

Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included. In the rear, high-strength fabricated lift blocks and longer u-bolts lift and level the stance, paired with your choice of NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High-clearance crossmembers improve strength and off-road capability
• Heavy-duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 6 inches
• Front: High-arched 1/4-inch thick laser-cut steel crossmembers with front skid plate system
• Front: Top-mounted strut spacers
• Front: CNC-machined ductile cast iron steering knuckles
• Rear: High-strength fabricated lift blocks (4 inch or 5 inch) with longer u-bolts
• Tire Clearance: Up to 37 inches
• Compatible with Diesel models
• FMVSS No. 126 Compliant

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off Tool, Reciprocating Saw

Important Notes

• 18-inch wheels with 5–5.5 inches total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle.
• 18-inch or larger diameter wheels are required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to 305/60-20 tires.
• The 4-inch blocks will net a level/tail-LOW stance. The 5-inch blocks will net a level/tail-HIGH stance.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
• This system will work on Diesel models.
• Will not fit HD models (7 lug).
• This kit is FMVSS No. 126 Compliant.
