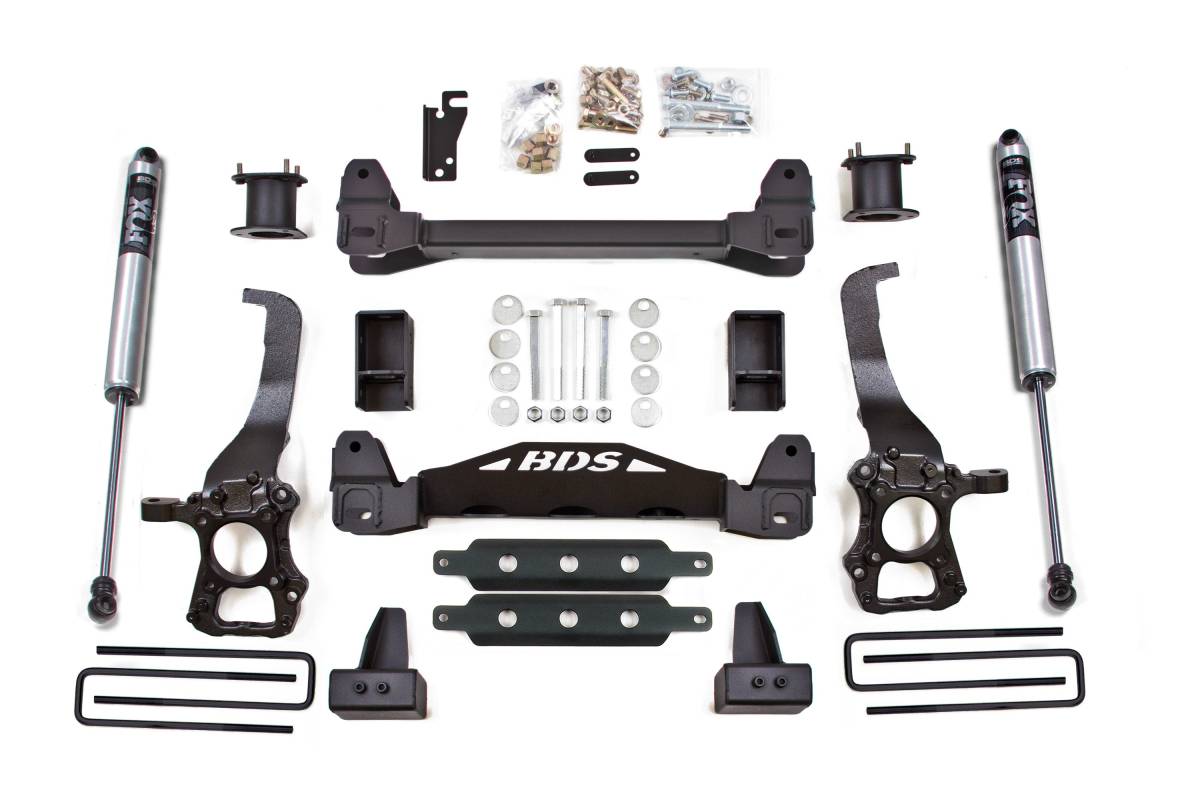

BDS 6 Inch Lift Kit | 2014 Ford F150 2WD | 4 Inch Block Kit w/ FOX 2.0 Performance Series Shocks

Configured with a 4 Inch Rear Block Kit for a tail-low-to-level stance and FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

BDS Suspension's 2WD-specific 6-inch lift kit for the 2014 Ford F150 2WD is engineered to improve stance, performance, and off-road capability while providing clearance for up to 37-inch tires. The kit leverages a high-clearance design built around laser-cut, CNC-machined ductile cast iron steering knuckles and high-arched 1/4-inch thick steel crossmembers. Steering geometry is corrected at the new taller ride height, maintaining proper function and ESC system compatibility. Up front, top-mounted strut spacers, a front skid plate system, sway bar relocation brackets, brake line brackets, and alignment cam bolts combine to create a comprehensive front suspension lift. In the rear, lift blocks, U-bolts, and your choice of rear shock and block kit complete the system. This kit is FMVSS No. 126 compliant.

Features

• High clearance crossmembers improve strength and off-road capability
• Heavy duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and easy installation
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 6 inches
• Crossmember Material: 1/4-inch thick high-arched steel
• Steering Knuckles: CNC-machined ductile cast iron
• Tire Clearance: Up to 37 inches
• Rear Lift Options: 4 Inch Block Kit (tail-low to level stance) or 5 Inch Block Kit (level to tail-high stance)
• Rear Shock Options: NX2 Nitro Series or FOX 2.0 Performance Series
• FMVSS No. 126 Compliant

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Metric/Standard Socket Wrench Set, Cut-off Tool

Important Notes

• 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled. Stock 20-inch wheels can be used with up to 305/60-20 tires.
• E-brake bracket required for factory powersteps (part #123018).
• Block kits replace the factory 1-1/4-inch block. The 4-inch blocks will net a level/tail-low stance. The 5-inch blocks will net a level/tail-high stance.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
• Will not fit HD models (7 lug).
• This kit is FMVSS No. 126 Compliant.
