BDS 2.5 Inch Lift Kit w/ Radius Arm | Ford F450 Super Duty (2020-2022) 4WD | w/ FOX 2.0 Performance Series Shocks

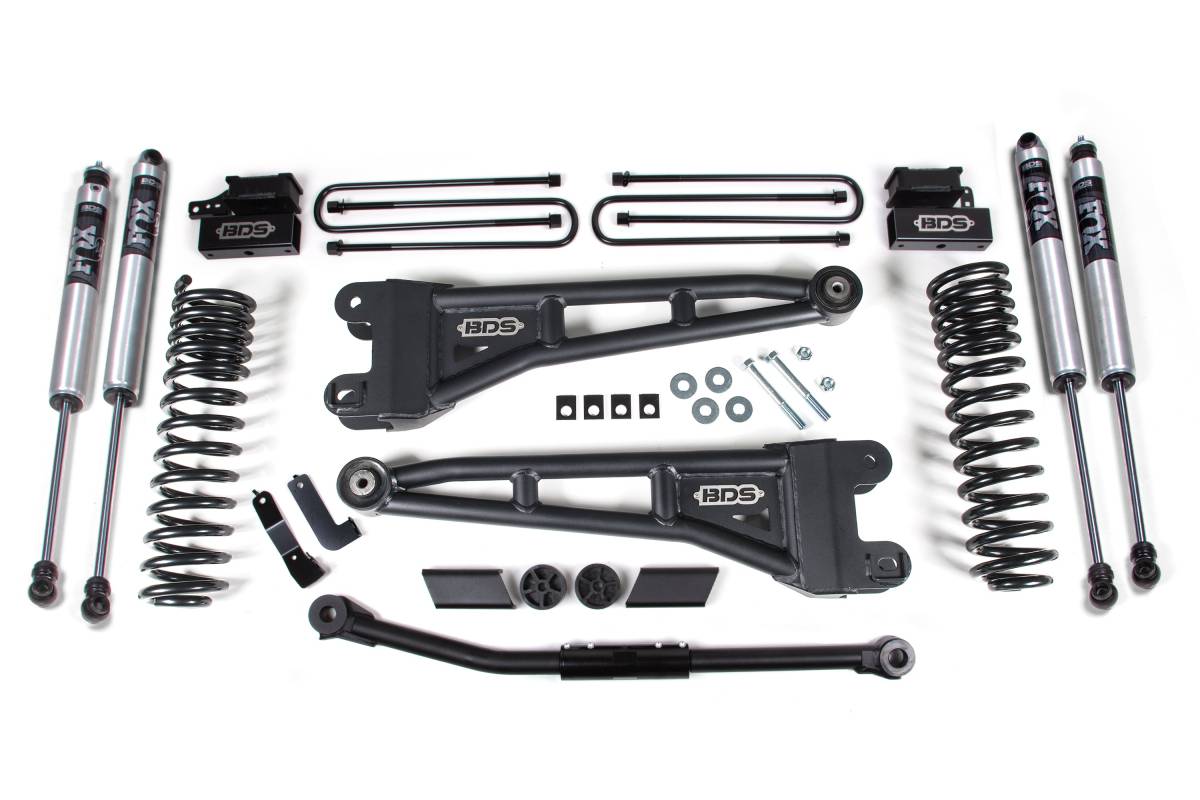

Configured with FOX 2.0 Performance Series shocks. Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

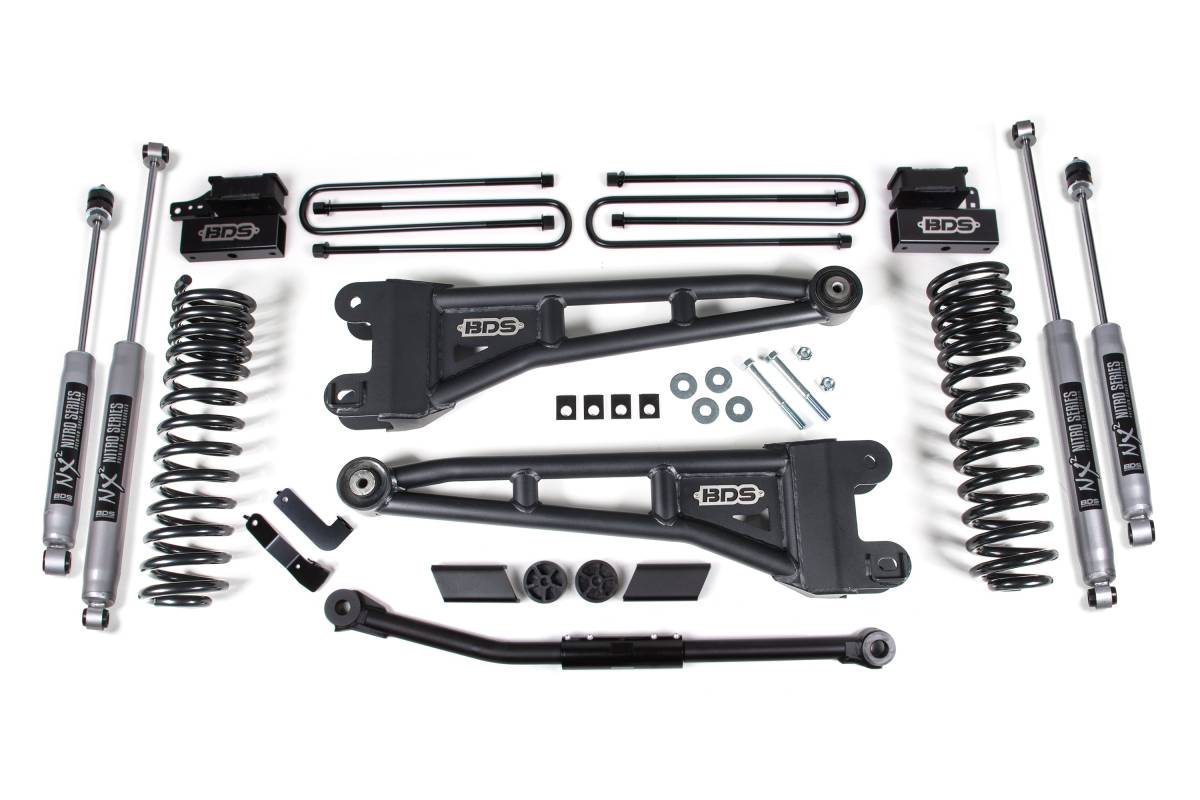

This 2.5-inch radius arm lift kit from BDS Suspension is designed for the 2020–2022 Ford F450 Super Duty diesel and gas powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar relocation, brake line brackets, and precision tuned nitrogen charged shocks. In the rear, this kit utilizes a high-strength fabricated lift block, longer u-bolts, and a matching set of shocks.

In place of the factory stamped steel radius arms, BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights, along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. A pair of full-length Pro-Ride coil springs provide the correct lift height and smooth, predictable ride across various terrains. The BDS high-strength adjustable track bar — built from 1-3/8-inch solid steel stock — allows you to recenter the front axle at a variety of lift heights, and comes pre-assembled with bushings ready to bolt into the factory mounting points.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for smooth ride across any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series or FOX 2.5 Performance Elite shocks for maximum performance on and off-road

Specifications

• Lift Height: 2.5 inches
• Track Bar: 1-3/8-inch solid steel, pre-assembled with bushings
• Radius Arms: High-strength tubular steel with OE-style rubber bushing at frame mount
• Rear Lift: Fabricated steel lift block with longer u-bolts
• Max Tire Size: 35x12.50
• Front Wheel: 20x8.25, 8.76-inch backspacing
• Rear Outer Wheel: 20x8.25, -3.33-inch backspacing
• Rear Inner Wheel: 20x8.25, 9.11-inch backspacing

Installation

• Estimated Time: 5 hours
• Difficulty: Moderate
• Tools Required: 30mm Socket, Basic Hand Tools, Torque Wrench, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2-inch front ride height).
• Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.
