BDS 4 Inch Lift Kit | Ford F150 2WD (2015-2020) | 3 Inch Block Kit w/ FOX 2.0 Performance Series Shocks

Configured with a 3 Inch Rear Block Kit for a tail-low to level stance, paired with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 4-inch suspension lift kit from BDS Suspension is designed for 2015–2020 Ford F150 2WD trucks, improving stance, performance, and off-road capability while providing clearance for up to 35-inch tires. The kit takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry to maintain proper on-road handling characteristics.

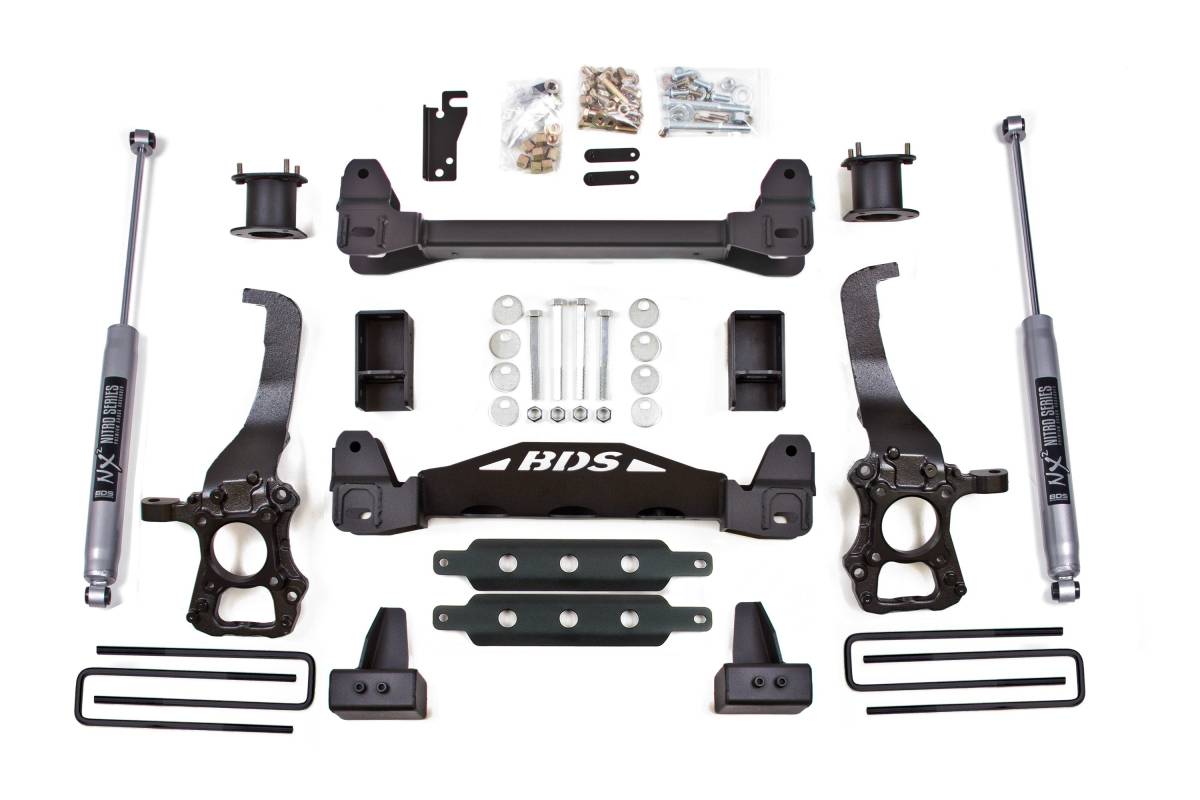

Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers and a skid plate designed for off-road protection. Steering geometry is corrected at the new ride height with a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included for a comprehensive front suspension lift. In the rear, high-strength fabricated lift blocks and longer u-bolts lift and level the stance, complemented by your choice of rear shock absorber.

Features

• High clearance crossmembers improve strength and off-road capability
• Heavy duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Available with NX2 Nitro shocks featuring vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Rear block kit available in 3-inch (tail-low to level stance) or 4-inch (level to tail-high appearance)

Specifications

• Front lift: 4 inches via high-arched 1/4-inch thick laser-cut steel crossmembers and top-mounted strut spacers
• Rear lift: 3-inch or 4-inch fabricated lift blocks with longer u-bolts
• Steering knuckles: CNC-machined ductile cast iron
• Crossmember material: 1/4-inch thick laser-cut steel
• Maximum tire clearance: up to 35 inches
• Compatible with Diesel models
• FMVSS No. 126 Compliant

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off Tool, Reciprocating Saw

Important Notes

• 18-inch wheels with 5–5.5-inch total backspacing should be test fit prior to mounting tires to ensure proper clearance to the BDS steering knuckle.
• 18-inch or larger diameter wheels are required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to 305/60-20 tires.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
• Requires frame bracket modification.
• This system will work on Diesel models.
• Will not fit HD models (7 lug).
• This kit is FMVSS No. 126 Compliant.
