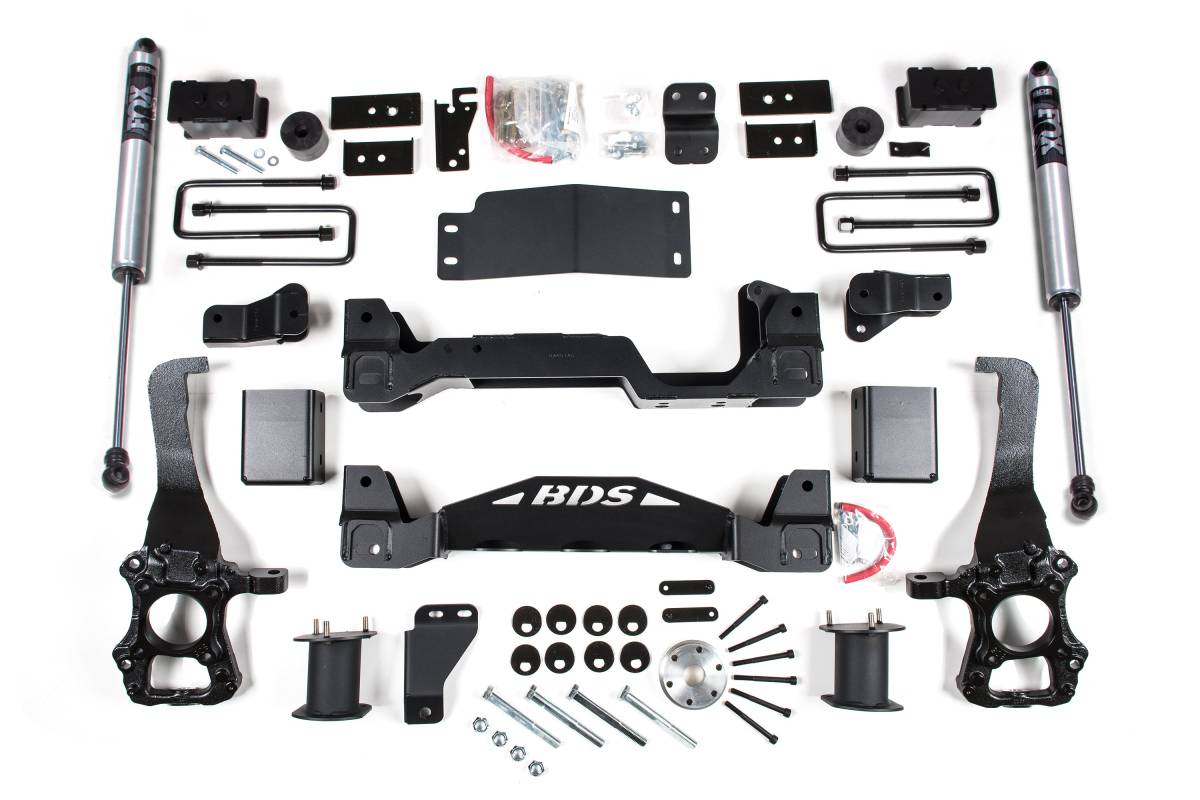

Configured with a 3 Inch Rear Block Kit for a tail-low to level stance, paired with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, and application-specific valving for maximum on- and off-road performance.
Overview
BDS steps up the performance and capability of 2015–2020 Ford F150 4WD trucks with this 4-inch suspension lift kit. Designed to improve stance, performance, and capability, the kit includes everything necessary to set your truck up with clearance for up to 35-inch tires. The high-clearance design improves ground clearance, strength, and off-road protection while correcting suspension and steering geometry for proper on-road handling characteristics.
Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers, multi-piece differential relocation brackets, and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included for a comprehensive front suspension lift. In the rear, high-strength fabricated lift blocks and longer U-bolts lift and level the stance, complemented by your choice of rear shock absorber.
Features
- High clearance crossmembers improve strength and off-road capability
- Heavy duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers provide lift and install easily
- Differential skid plate for improved off-road protection
- Rear lift blocks and U-bolts to lift and level the stance

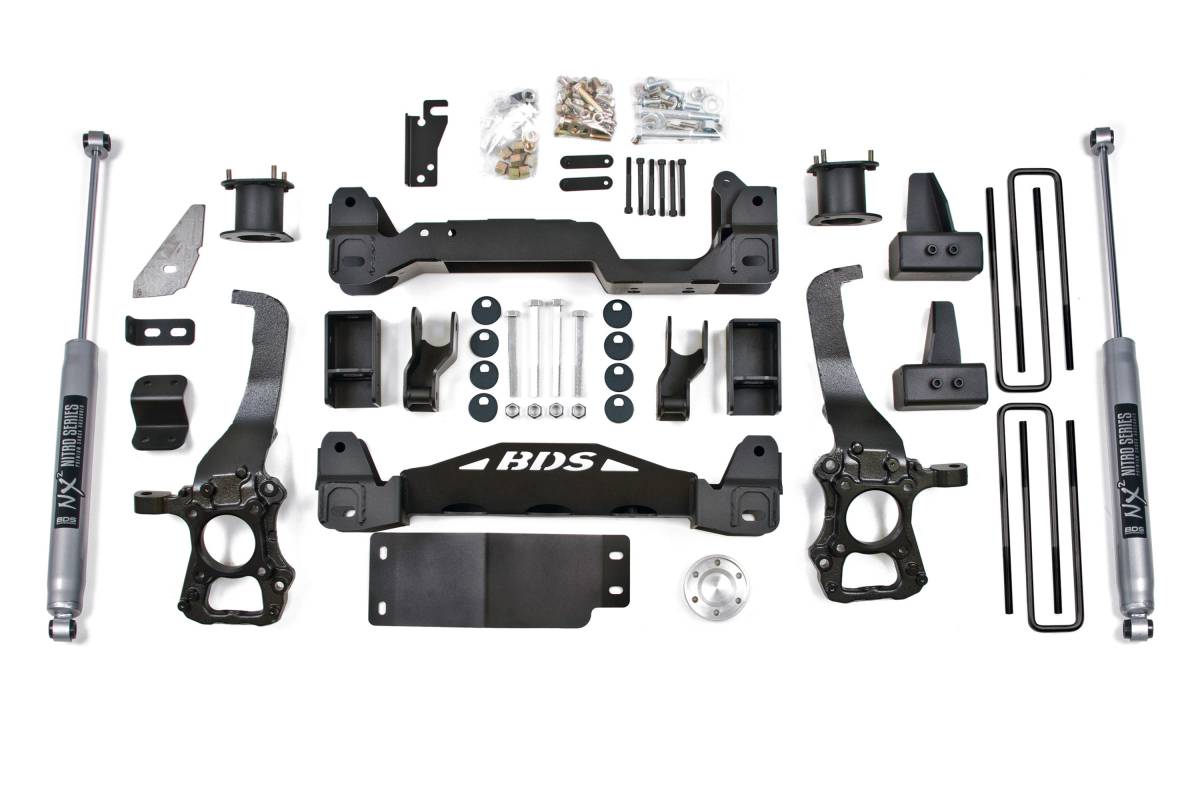

- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Specifications
- Lift Height: 4 inches
- Tire Clearance: Up to 35 inches
- Front crossmembers: 1/4-inch thick laser-cut high-clearance steel
- Steering knuckles: CNC-machined ductile cast iron
- Includes: Crossmembers, differential relocation brackets, skid plate, steering knuckles, sway bar relocation brackets, brake line brackets, alignment cam bolts, rear lift blocks, U-bolts, and hardware
- Rear shock options: NX2 Nitro Series or FOX 2.0 Performance Series
- Rear block options: 4 Inch Block Kit (level to tail-high appearance) or 3 Inch Block Kit (tail-low to level stance)
Installation
- Estimated Time: 10 hours
- Difficulty: Difficult
- Tools Required: Cut-off Tool, Reciprocating Saw
Important Notes
- 18-inch wheels with 5–5.5 inches total backspacing should be test fit prior to mounting tire to ensure proper clearance to BDS steering knuckle.
- 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
- Stock 20-inch wheels can be used with up to 305/60-20 tires.
- E-brake bracket required for factory power steps (part #123018).
- Block kits replace the factory 1-1/4-inch block.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
- Will not fit HD models (7 lug).
